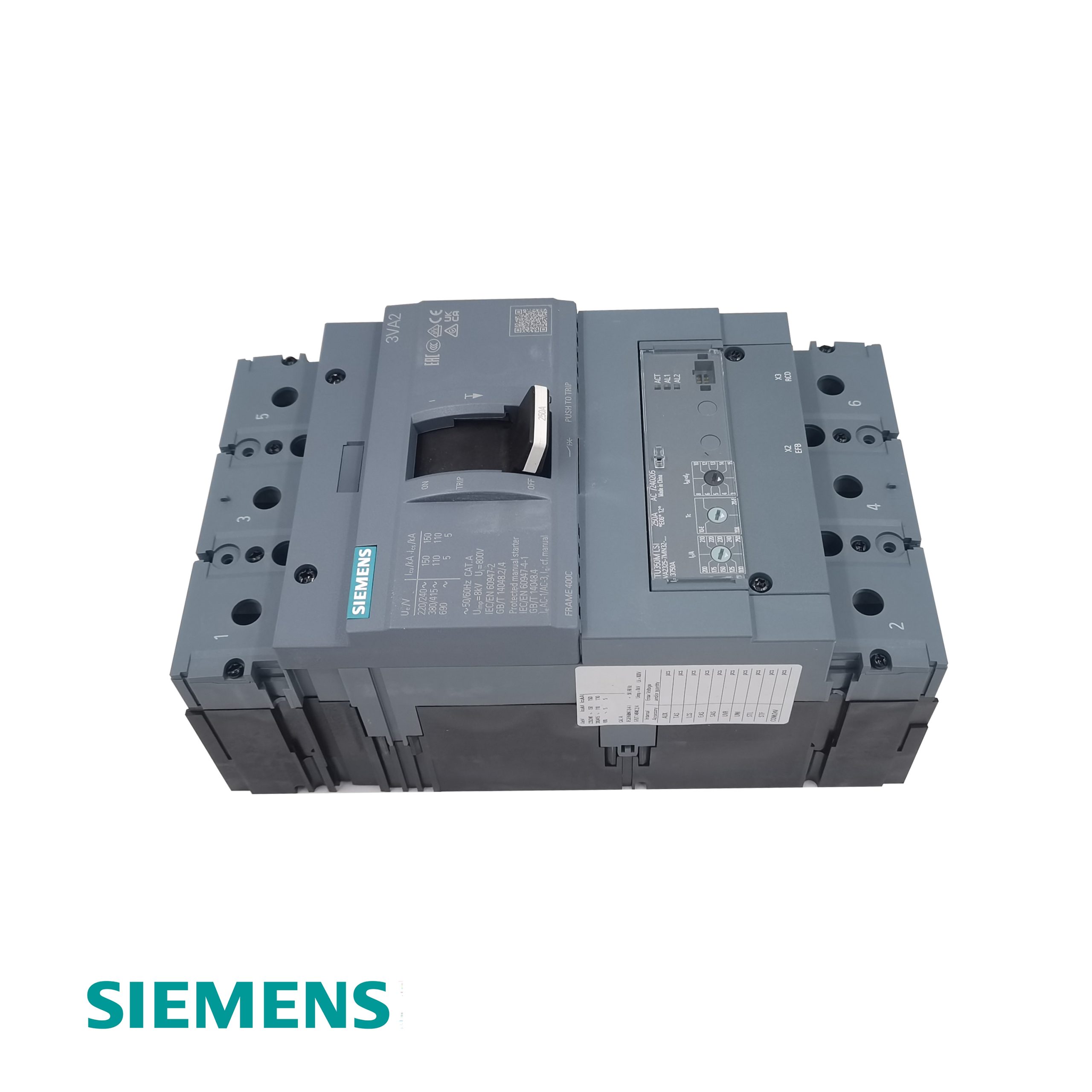

Siemens 3VA2325‑7MN32‑0AA0 SENTRON Molded Case Circuit Breaker – 250A, 3‑Pole, 110kA @ 415V

Manufacturer: Siemens
Model: 3VA2325-7MN32-0AA0
Type: Molded Case Circuit Breaker
Rated Current: 250 A
Number of Poles: 3
Breaking Capacity: 110 kA @ 415 V AC
Overload Setting Range: 100…250 A
Trip Unit: ETU350M (LSI)

Product Description

The Siemens 3VA2325-7MN32-0AA0 is a three-pole molded case circuit breaker from the SENTRON 3VA2 series, designed for motor protection and power distribution in industrial and infrastructure applications. It features an ETU350M electronic trip unit providing LSI protection (Long-time, Short-time, Instantaneous) with an adjustable overload setting range of 100…250 A, short-circuit setting of 3…15 × Ir, and instantaneous trip at 15 × In. The breaker delivers an ultimate short-circuit breaking capacity of 110 kA at 415 V AC (Class C), with a rated insulation voltage of 800 V and rated operational voltage of 690 V AC. Its compact 400 frame design with flat screw connections and 138 mm width simplifies panel integration. Typical applications include motor feeders, starter protection, and main distribution in demanding industrial environments.

Standard Features

  • ETU350M Electronic Trip Unit: Provides LSI protection with adjustable overload (Ir = 100…250 A), short-time short-circuit (Isd = 3…15 × Ir), and instantaneous (Ii = 15 × In) settings for precise coordination.
  • High Breaking Capacity Class C: Delivers 110 kA ultimate short-circuit breaking capacity at 415 V AC, ensuring robust fault current interruption.
  • Motor Protection Optimized: Designed for motor protection with operational power of 110 kW at 400 V AC (AC-3) and 55 kW at 230 V AC (AC-3).
  • Three-Pole Fixed Configuration: Compact 3-pole design with flat screw connections simplifies installation in switchboards and distribution panels.
  • Phase Failure Detection: Integrated phase failure detection enhances motor protection by identifying supply imbalances.
  • High Mechanical and Electrical Durability: Mechanical life of 20,000 operating cycles and electrical life of 6,000 cycles (AC-1 at 380/415 V) ensure long-term reliability.
  • Global Approvals: Certified to IEC 60947-2 with CCC, VDE, RCM, and EAC approvals for worldwide industrial applications.

Technical Specifications

ParameterValue
ManufacturerSiemens
Model3VA2325-7MN32-0AA0
SeriesSENTRON 3VA2
Product TypeMolded Case Circuit Breaker (MCCB)
Rated Current (In)250 A
Number of Poles3
Frame Size400
Overload Setting Range (Ir)100…250 A (adjustable)
Short-Circuit Setting (Isd)3…15 × Ir (adjustable)
Instantaneous Setting (Ii)15 × In
Breaking Capacity (Icu) @ 415 V AC110 kA (Class C)
Rated Operational Voltage (Ue)690 V AC
Rated Insulation Voltage (Ui)800 V
Trip Unit TypeETU350M (Electronic, LSI)
Dimensions (W × D × H)138 mm × 110 mm × 248 mm
Net Weight4.674 kg
StandardsIEC 60947-2; CCC, VDE, RCM, EAC
