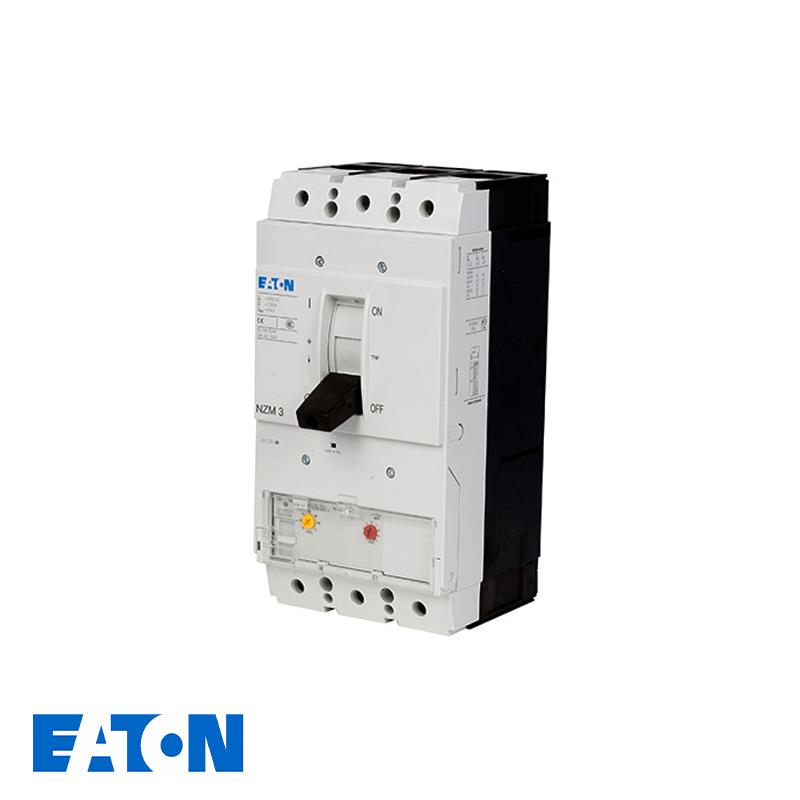

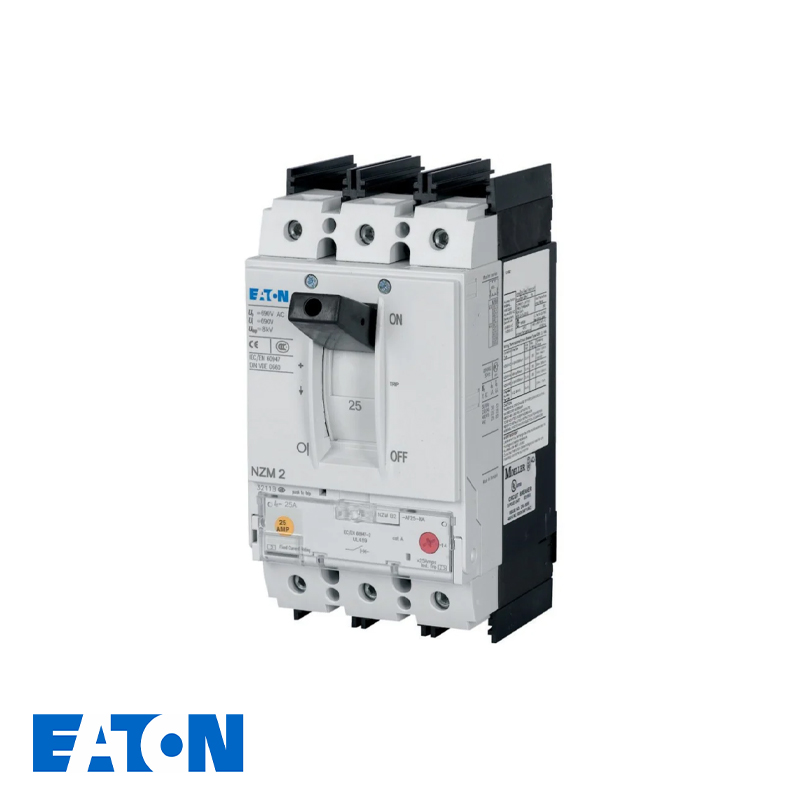

Eaton NZM molded case circuit breakers
Eaton NZM molded case circuit breakers - Image 2
Eaton NZM molded case circuit breakers - Image 3

Eaton NZM molded case circuit breakers

Manufacturer: Eaton
Model: NZM Molded Case Circuit Breaker
Rated Current: 20 A to 1600 A
Rated Voltage: up to 690 V AC / 750 V DC
Breaking Capacity: 50 kA to 150 kA
Frame Sizes: NZM1, NZM2, NZM3, NZM4

Get a Quote

Product Description

Eaton’s NZM portfolio provides a globally rated solution with a broad offering of circuit breakers, accessories, and IEC switch disconnector, ideal for panelbuilders and machinery OEMs worldwide. Thermal-magnetic and eletronic trip units from 20A to 1600A for power distribution and protection of motors, generators, transformers and other equipment.

Standard Features

  • Rated current range from 20A to 1600A

  • Supports AC voltages up to 690V and DC voltages up to 750V

  • Breaking capacity from 50kA to 150kA

  • Available in NZM1, NZM2, NZM3, and NZM4 frame sizes

  • Thermal-magnetic or electronic trip unit options

  • High mechanical endurance and operational reliability

  • Compact, modular design for flexible installation

  • Complies with IEC international standards

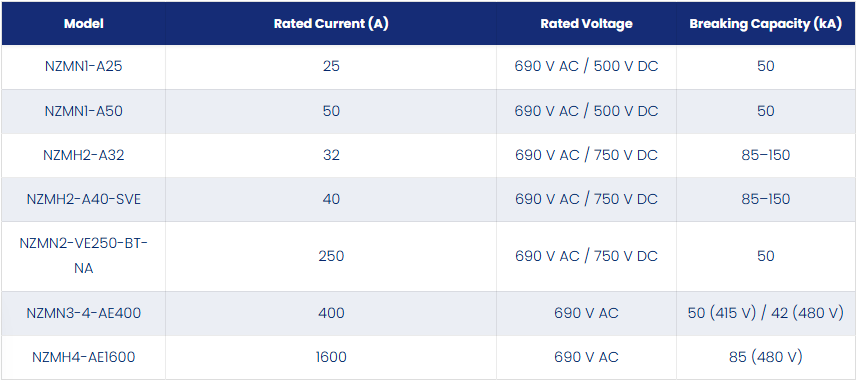

Technical Specifications



ModelRated Current (A)Rated VoltageBreaking Capacity (kA)
NZMN1-A2525690 V AC / 500 V DC50
NZMN1-A5050690 V AC / 500 V DC50
NZMH2-A3232690 V AC / 750 V DC85–150
NZMH2-A40-SVE40690 V AC / 750 V DC85–150
NZMN2-VE250-BT-NA250690 V AC / 750 V DC50
NZMN3-4-AE400400690 V AC50 (415 V) / 42 (480 V)
NZMH4-AE16001600690 V AC85 (480 V)
