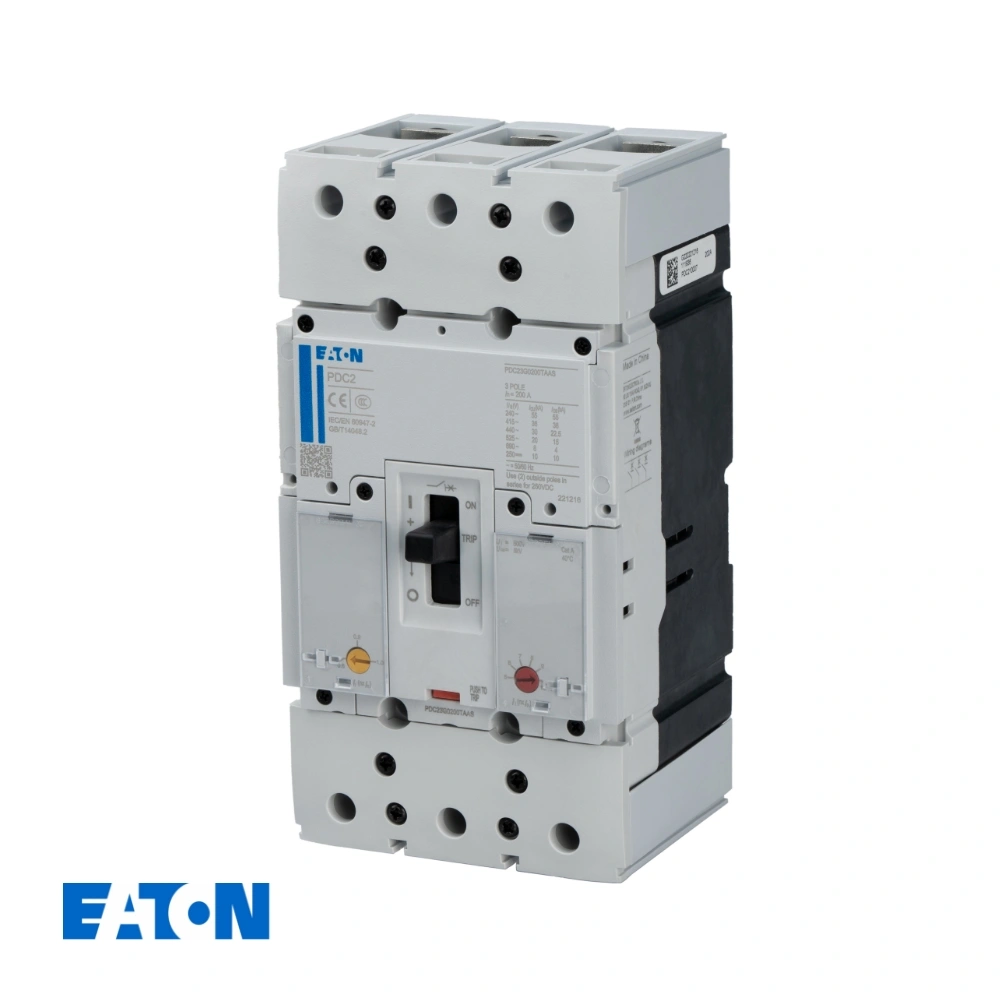

The Eaton PDC23G0200TAAS
The Eaton PDC23G0200TAAS - Image 2

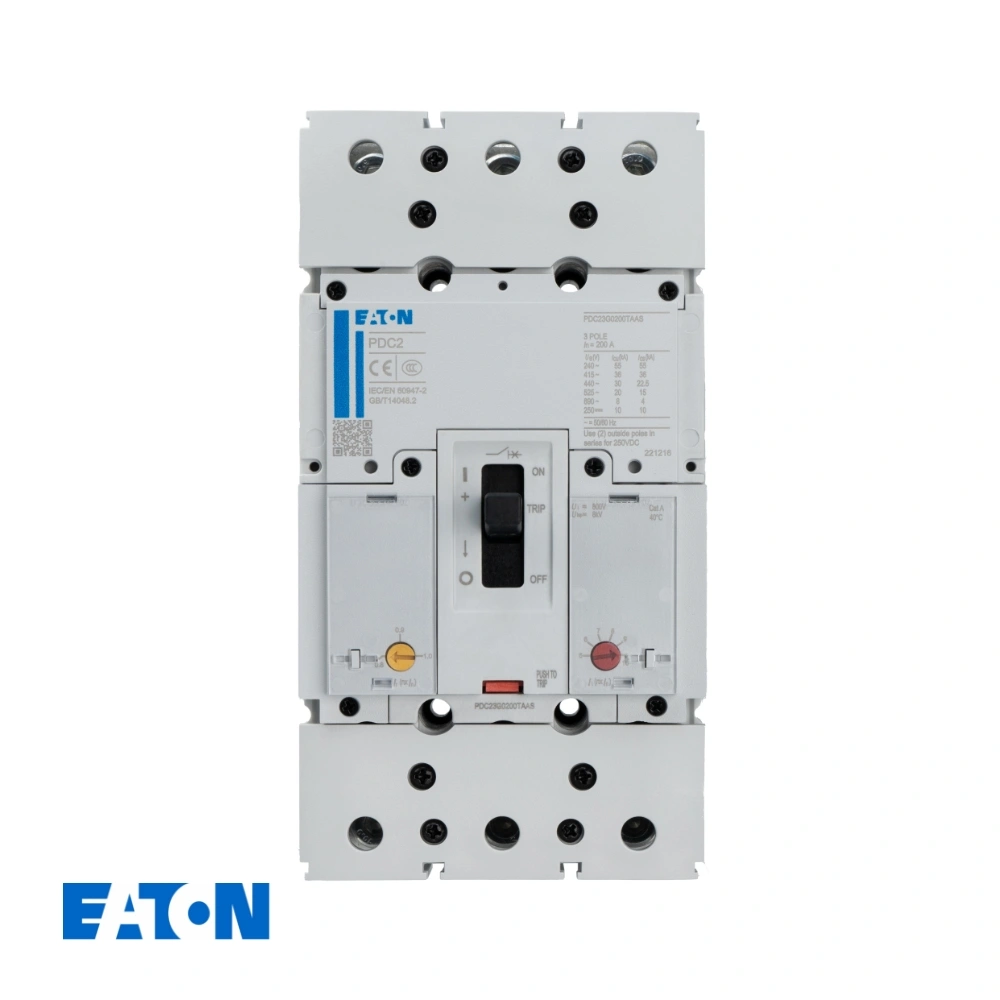

The Eaton PDC23G0200TAAS - Image 3

The Eaton PDC23G0200TAAS

Rated Current: 200A
Number of Poles: 3P
Breaking Capacity: 36kA
Trip Type: Thermal-Magnetic
Mounting Type: Fixed
Wiring Method: Front plate wiring
Rated Operating Voltage: 380V
Rated Insulation Voltage: 220V
Protection Type: Overload and Short-circuit
Application Scenario: Primary distribution

Get a Quote

Product Description

The TeSys Deca contactor is a 3-pole (3NO) device for motor control, supporting up to 40A/440V AC-3/3e (18.5kW @ 400V).

Coil and Auxiliary Contacts
It features a 220V 50/60Hz AC coil, 1NO+1NC auxiliary contacts (NC mirror certified), and offers high reliability for up to 3600 cycles/hour in environments up to 60°C.

Mounting and Application
Compact and DIN-rail or screw-mountable, it’s rated for various HP applications across different voltages.

Certifications and Standards
Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), it achieves an SCCR of up to 100kA when paired with compatible circuit breakers or fuses.

Connection and Accessories
Standard features include screw clamp terminals for connections and a range of accessories to meet diverse needs.

Dimensions and Weight
Measuring 4.80" x 2.17" x 4.72" and weighing 1.87 lbs, it ensures compliance and reliability in various operational settings.

Standard Features

The Schneider Electric LC1D40AM7 is a TeSys D series contactor designed for controlling three-phase AC motors. Its standard features include:

  • 1. Rated Current : 40A at 380-440V AC (AC-3 category) for reliable motor switching.
  • 2. Coil Voltage : 24V DC (denoted by "M7" in the model code).
  • 3. Poles : 3 NO (Normally Open) main contacts for power circuit control.
  • 4. Auxiliary Contacts : Configurable with optional NO/NC (Normally Closed) modules.
  • 5. Standards Compliance : Meets IEC/EN 60947-4-1, ensuring safety and performance.
  • 6. Applications : Motor starting, stopping, and reversing in industrial systems; compatible with overload relays for full motor protection.
  • 7. Durability : High mechanical and electrical endurance for frequent operations.

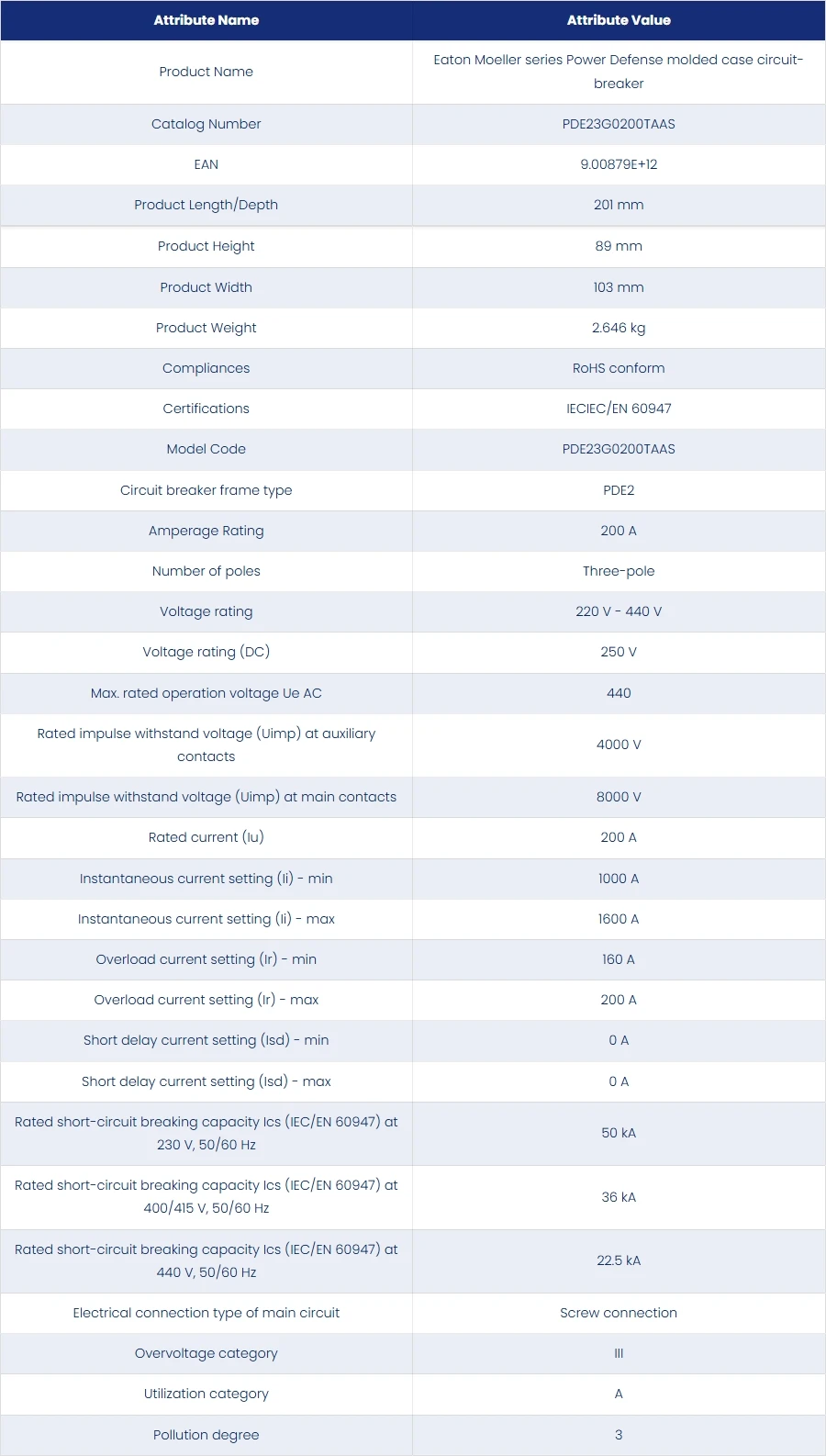

Technical Specifications

Attribute NameAttribute Value
Product NameEaton Moeller series Power Defense molded case circuit-breaker
Catalog NumberPDE23G0200TAAS
EAN9.00879E+12
Product Length/Depth201 mm
Product Height89 mm
Product Width103 mm
Product Weight2.646 kg
CompliancesRoHS conform
CertificationsIECIEC/EN 60947
Model CodePDE23G0200TAAS
Circuit breaker frame typePDE2
Amperage Rating200 A
Number of polesThree-pole
Voltage rating220 V - 440 V
Voltage rating (DC)250 V
Max. rated operation voltage Ue AC440
Rated impulse withstand voltage (Uimp) at auxiliary contacts4000 V
Rated impulse withstand voltage (Uimp) at main contacts8000 V
Rated current (Iu)200 A
Instantaneous current setting (Ii) - min1000 A
Instantaneous current setting (Ii) - max1600 A
Overload current setting (Ir) - min160 A
Overload current setting (Ir) - max200 A
Short delay current setting (Isd) - min0 A
Short delay current setting (Isd) - max0 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz50 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz36 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz22.5 kA
Electrical connection type of main circuitScrew connection
Overvoltage categoryIII
Utilization categoryA
Pollution degree3

Read More
