Wholesale BZMX Mining MCCB | 1150V AC | 50kA Rating | SIMPLYBUY
海报

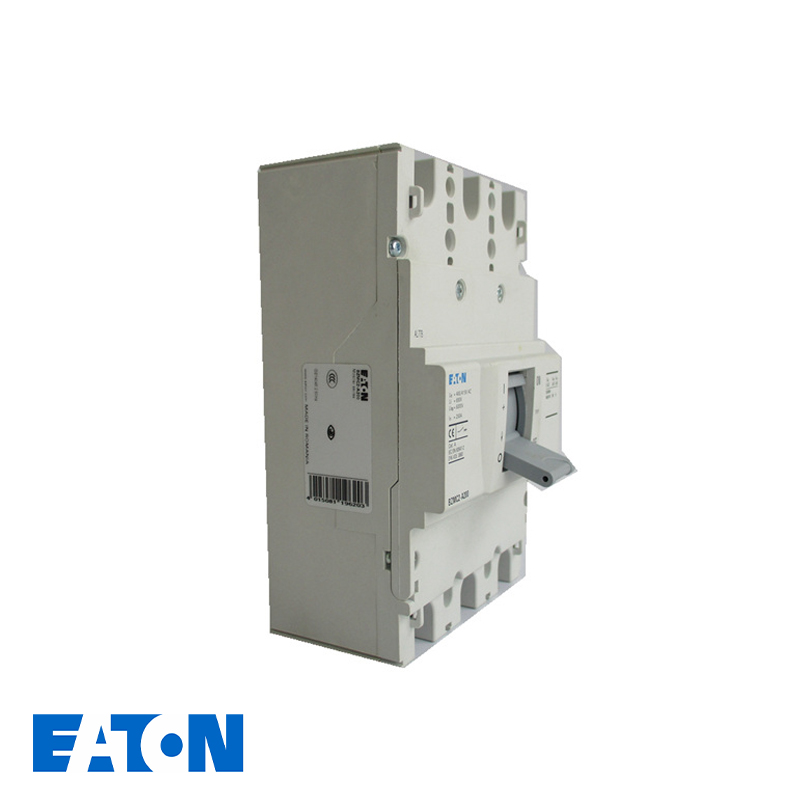

BZMX Rock Breaker Mining Molded Case Circuit Breaker-1
BZMX Rock Breaker Mining Molded Case Circuit Breaker-2
BZMX Rock Breaker Mining Molded Case Circuit Breaker-3

BZMX Rock Breaker Mining Molded Case Circuit Breaker

Manufacturer: Eaton
Model: BZMX Rock Breaker Mining Molded Case Circuit Breaker
Rated Current: 32 A to 630 A
Rated Voltage: 800 V, 1000 V, and 1150 V AC
Breaking Capacity: 15 kA to 50 kA

Get a Quote

Product Description

Eaton's BZMX Rock Breaker mining molded case circuit breakers are designed for harsh mining environments. With a rated current of up to 630A and a maximum voltage withstand of 1150V AC, they offer a robust interrupting capacity of up to 50kA, ensuring safe and stable operation of mining equipment. Their rugged construction and comprehensive accessory support make them easy to install and maintain, even in extreme operating conditions. Choosing the Eaton BZMX provides reliable, long-lasting protection for your mining electrical systems, making it an ideal choice for ensuring production continuity and equipment safety.

Standard Features

  • High breaking capacity up to 50 kA for reliable short-circuit protection

  • Wide rated current range from 32 A to 630 A to meet various mining load requirements

  • Supports 800 V, 1000 V, and 1150 V AC systems for versatile applications

  • Thermal-magnetic trip mechanism for fast and reliable overload and short-circuit protection

  • Rugged design with IP54 protection rating suitable for harsh mining environments

  • Mechanical and electrical interlocking options to prevent accidental operations

  • Compatible with auxiliary contacts, alarm contacts, and shunt trips

  • Flexible installation with direct and extended rotary handle options

  • Long mechanical and electrical life ensuring durability under demanding conditions

  • Certified to international safety standards ensuring quality and reliability

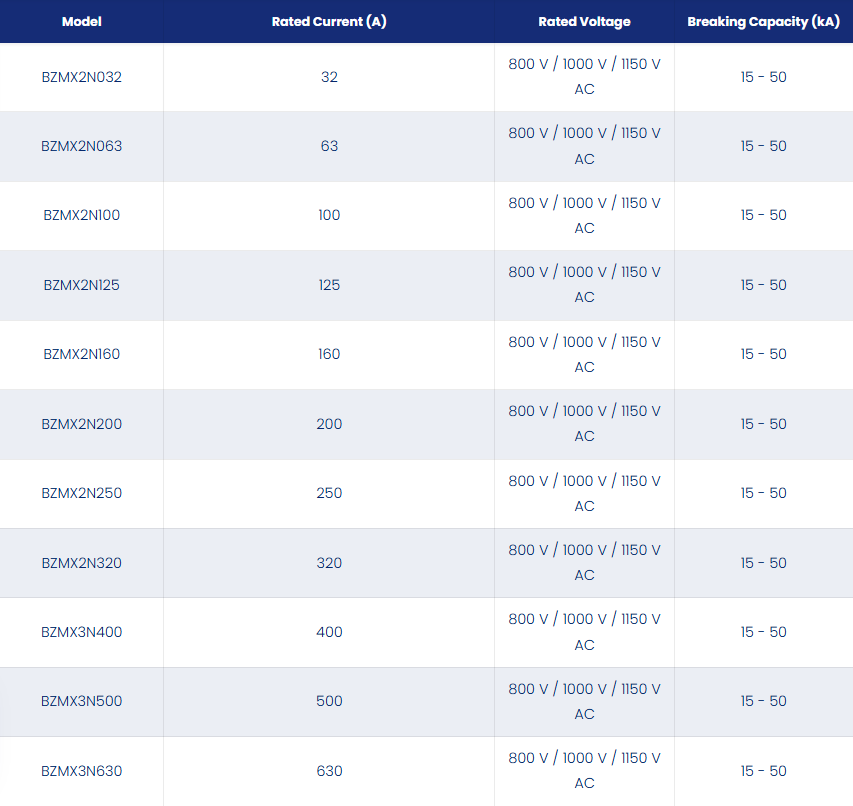

Technical Specifications



ModelRated Current (A)Rated VoltageBreaking Capacity (kA)
BZMX2N03232800 V / 1000 V / 1150 V AC15 - 50
BZMX2N06363800 V / 1000 V / 1150 V AC15 - 50
BZMX2N100100800 V / 1000 V / 1150 V AC15 - 50
BZMX2N125125800 V / 1000 V / 1150 V AC15 - 50
BZMX2N160160800 V / 1000 V / 1150 V AC15 - 50
BZMX2N200200800 V / 1000 V / 1150 V AC15 - 50
BZMX2N250250800 V / 1000 V / 1150 V AC15 - 50
BZMX2N320320800 V / 1000 V / 1150 V AC15 - 50
BZMX3N400400800 V / 1000 V / 1150 V AC15 - 50
BZMX3N500500800 V / 1000 V / 1150 V AC15 - 50
BZMX3N630630800 V / 1000 V / 1150 V AC15 - 50
