OMRON G2R-2-SN DC24 2PDT 5A General Purpose Relay

Product Description

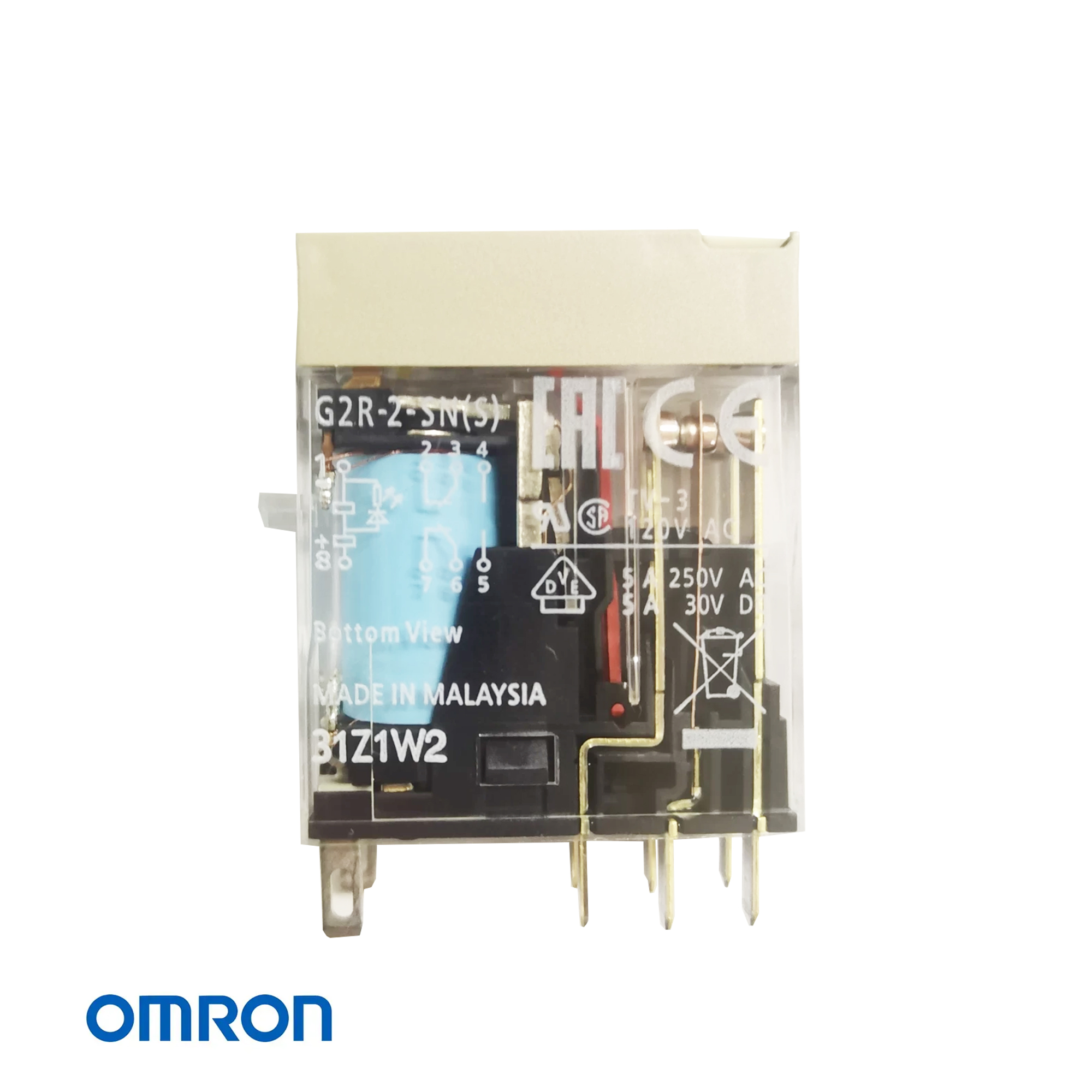

The OMRON G2R-2-SN DC24 is a slim and space-saving general-purpose power relay featuring a 24 VDC coil and DPDT contact configuration. Designed for industrial automation and electrical control applications, it provides a 5 A rated load at 250 VAC or 30 VDC for resistive loads. The relay features plug-in terminals, LED and mechanical indicators, and a compact design for efficient panel installation. With a wide operating temperature range of -40 °C to 70 °C and RoHS compliance, it provides reliable switching performance in demanding industrial environments.

Standard Features

• DPDT contact configuration: Provides two changeover poles for flexible control and switching applications.
• 24 VDC coil: Designed for reliable operation in standard 24 VDC industrial control circuits.
• 5 A rated load: Supports 5 A at 250 VAC or 30 VDC for resistive loads.
• LED indicator: Provides convenient visual indication of relay operating status.
• Mechanical indicator: Allows quick visual confirmation of relay operation.
• Plug-in terminal design: Enables convenient installation with compatible relay sockets.
• Wide operating temperature: Suitable for ambient temperatures from -40 °C to 70 °C.

Technical Specifications
