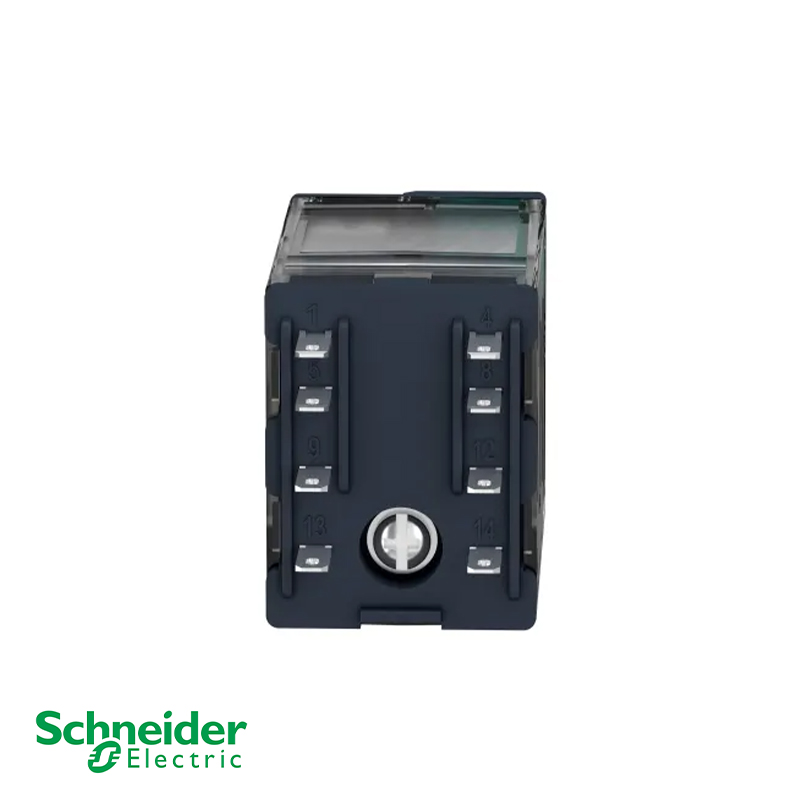

Schneider RXM2AB2BD Zelio Relay 24VDC 12A 2CO
Schneider RXM2AB2BD Zelio Relay 24VDC 12A 2CO - Image 2
Schneider RXM2AB2BD Zelio Relay 24VDC 12A 2CO - Image 3

Schneider RXM2AB2BD Zelio Relay 24VDC 12A 2CO

Manufacturer: Schneider Electric
Model: RXM2AB2BD
Control Circuit Voltage: 24 V DC
Contacts Composition: 2 C/O (DPDT)
Rated Current: 12 A (at 250V AC / 28V DC)
Indicator Type: LED Integrated

Get a Quote

Product Description

Schneider RXM2AB2BD is a miniature plug-in relay from the Zelio Relay range. This model features 2 changeover contacts (2 C/O) with a 24V DC coil voltage and a rated current of 12A. It comes equipped with a built-in LED status indicator and a lockable test button, greatly facilitating commissioning and troubleshooting. Its compact size combined with robust load-switching capacity makes it widely used in automation equipment, control panels, and general control circuits.

Standard Features

  • Easy Diagnosis: Integrated LED allows for visual confirmation of the relay's energization status.
  • Manual Override: Features a lockable test button for manual checking of the contact operation.
  • High Load Capacity: Supports up to 12A current, suitable for direct control of small motors and heaters.
  • Versatile Mounting: Plug-in design compatible with various RXZE sockets for DIN rail or panel mounting.
  • Long Service Life: Designed for high electrical and mechanical endurance in demanding environments.

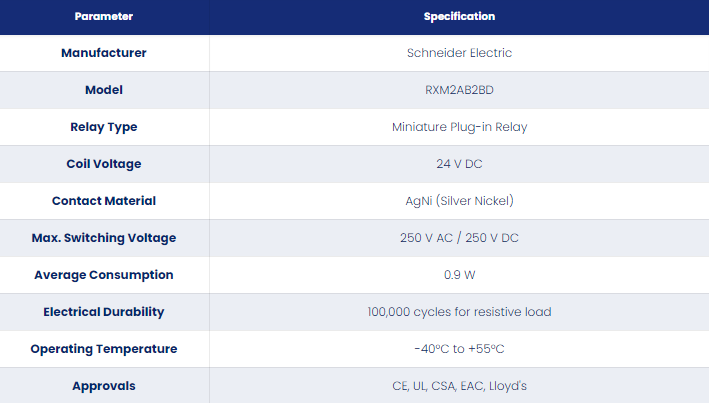

Technical Specifications

Parameter Specification
ManufacturerSchneider Electric
ModelRXM2AB2BD
Relay TypeMiniature Plug-in Relay
Coil Voltage24 V DC
Contact MaterialAgNi (Silver Nickel)
Max. Switching Voltage250 V AC / 250 V DC
Average Consumption0.9 W
Electrical Durability100,000 cycles for resistive load
Operating Temperature-40°C to +55°C
ApprovalsCE, UL, CSA, EAC, Lloyd's
