Finder 62.33.8.120.4040 Power Relay 3CO 16A 120V AC
Finder 62.33.8.120.4040 Power Relay 3CO 16A 120V AC - Image 2

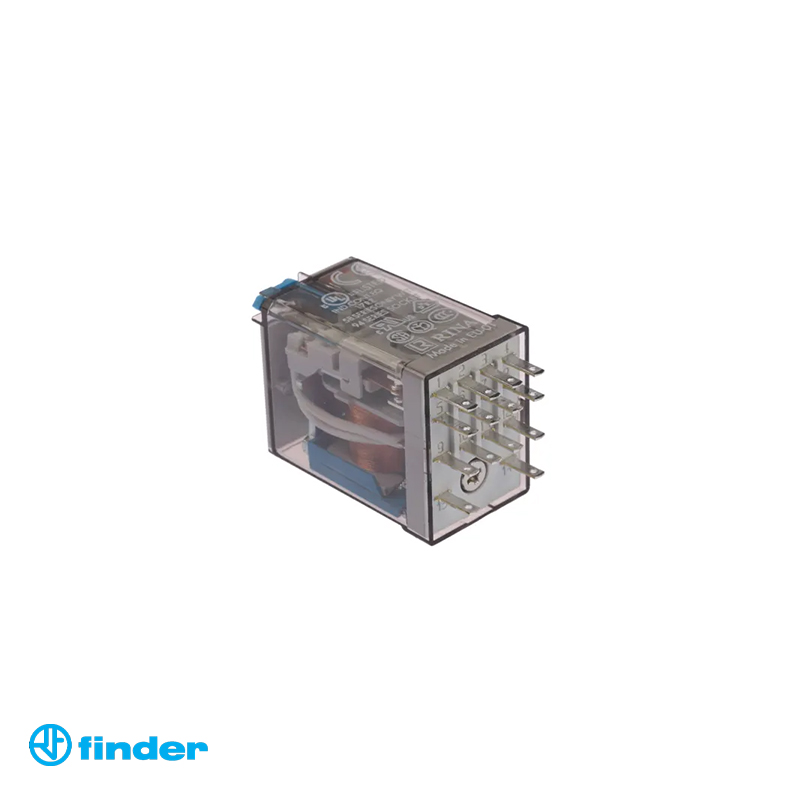

Finder 62.33.8.120.4040 Power Relay 3CO 16A 120V AC - Image 3

Finder 62.33.8.120.4040 Power Relay 3CO 16A 120V AC

Manufacturer: Finder
Model: 62.33.8.120.4040
Contact Configuration: 3 C/O (3PDT)
Rated Current: 16 A (max peak 30 A)
Nominal Voltage: 120 V AC
Mounting: Plug-in / Solder terminals

Get a Quote

Product Description

The Finder 62.33.8.120.4040 is a high-power industrial relay designed for demanding electrical loads. It features 3 changeover (3CO) contacts rated at 16A and operates with a 120V AC coil. Equipped with a mechanical indicator and a manual test button, it allows for easy circuit testing and status monitoring. Its reinforced insulation and robust construction make it perfect for industrial motor control, HVAC systems, and power distribution panels.

Standard Features

  • High Switching Power: Capable of switching AC1 loads up to 4000 VA.
  • Manual Override: Features a lockable test button and mechanical flag for diagnostic checks.
  • Superior Insulation: 6kV (1.2/50µs) between coil and contacts for enhanced safety.
  • Cadmium-Free Contacts: Environmentally friendly AgCdO contacts for high endurance.
  • Versatile Use: Suitable for heavy-duty applications like lighting control and pump management.

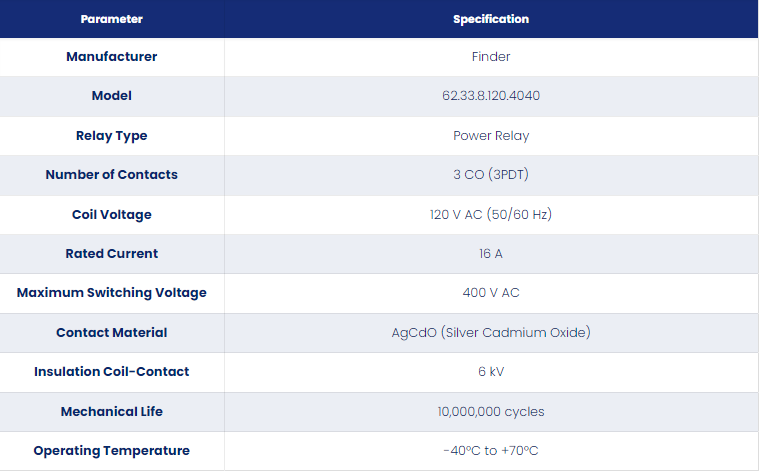

Technical Specifications

ParameterSpecification
ManufacturerFinder
Model62.33.8.120.4040
Relay TypePower Relay
Number of Contacts3 CO (3PDT)
Coil Voltage120 V AC (50/60 Hz)
Rated Current16 A
Maximum Switching Voltage400 V AC
Contact MaterialAgCdO (Silver Cadmium Oxide)
Insulation Coil-Contact6 kV
Mechanical Life10,000,000 cycles
Operating Temperature-40°C to +70°C
