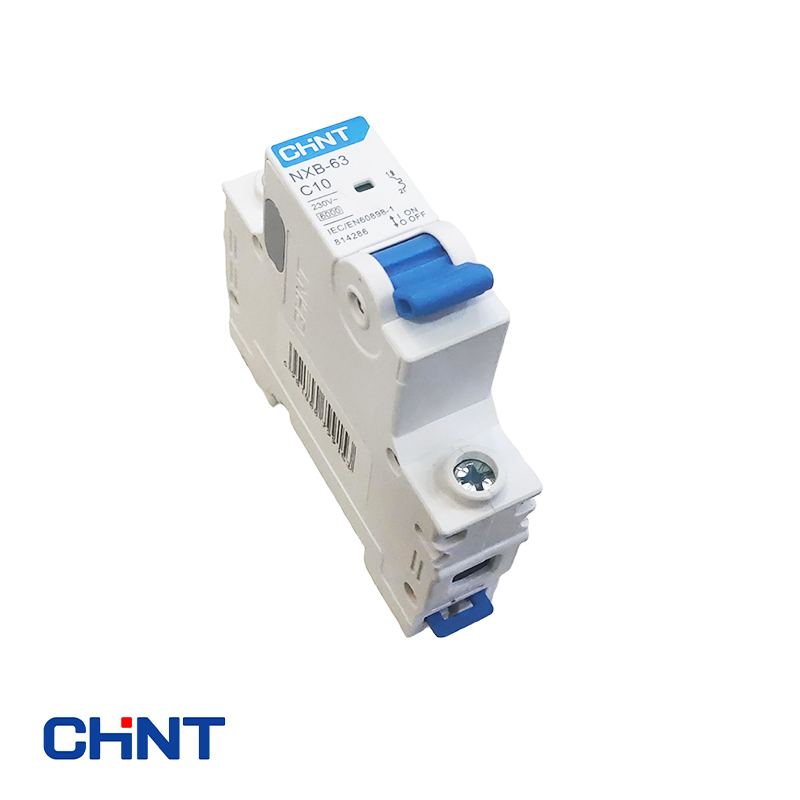

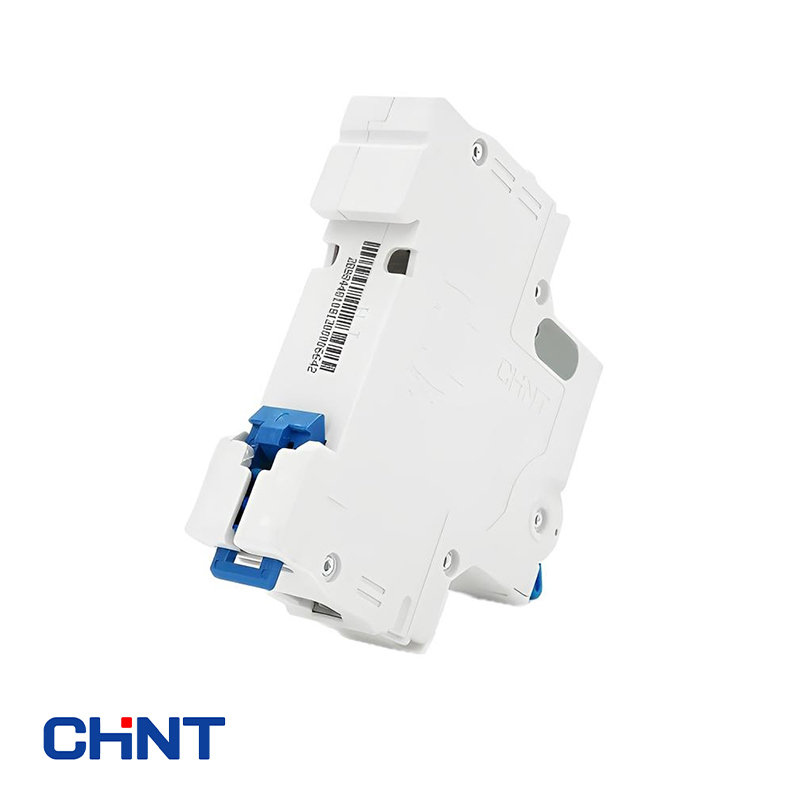

CHINT NXB-63 1P C10 Miniature Circuit Breaker MCB
CHINT NXB-63 1P C10 Miniature Circuit Breaker MCB - Image 2
CHINT NXB-63 1P C10 Miniature Circuit Breaker MCB - Image 3

CHINT NXB-63 1P C10 Miniature Circuit Breaker MCB

Manufacturer: CHINT
Model: NXB-63 1P C10
Rated Current (In): 10 A
Number of Poles: 1P
Tripping Curve: C-curve (5-10 In)
Breaking Capacity: 6000A (6kA)

Get a Quote

Product Description

  • The CHINT NXB-63 1P C10 is a high-quality Miniature Circuit Breaker (MCB) designed for modern electrical distribution systems. It provides reliable protection against overloads and short circuits in residential and industrial environments. Featuring a 10A rated current and C-type tripping curve, it is ideal for circuits with moderate inductive loads. Its compact design ensures easy installation on DIN rails, while the clear status indicator enhances maintenance safety and system reliability.

Standard Features

  • Circuit Protection: Provides robust defense against short-circuit and overload conditions.
  • Standardized Mounting: Fully compatible with 35mm DIN rail for rapid cabinet installation.
  • Fast Breaking: High breaking capacity of 6kA ensures safety during high-fault currents.
  • Visual Feedback: Features a clear contact position indicator for easier diagnostics.
  • High Durability: Mechanical and electrical life designed for long-term operational stability.
  • Wide Application: Suitable for lighting, power distribution, and motor protection circuits.

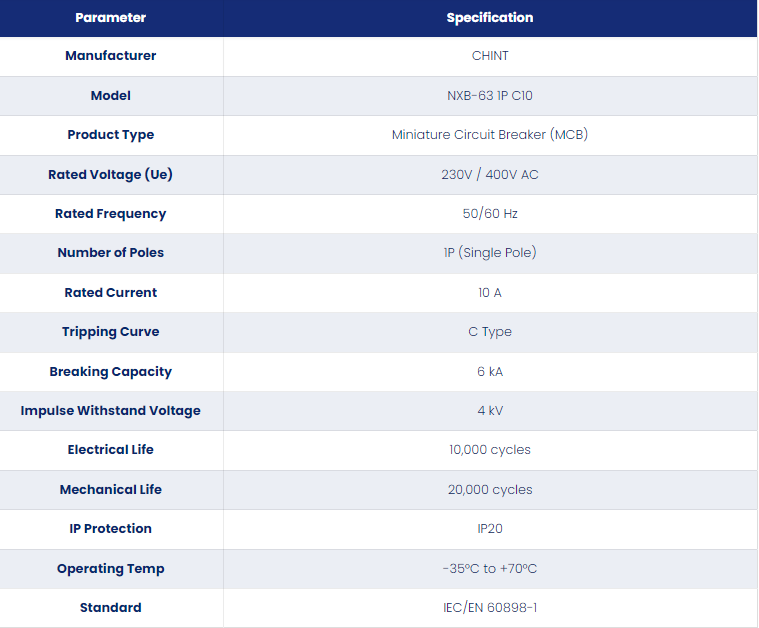

Technical Specifications

ParameterSpecification
ManufacturerCHINT
ModelNXB-63 1P C10
Product TypeMiniature Circuit Breaker (MCB)
Rated Voltage (Ue)230V / 400V AC
Rated Frequency50/60 Hz
Number of Poles1P (Single Pole)
Rated Current10 A
Tripping CurveC Type
Breaking Capacity6 kA
Impulse Withstand Voltage4 kV
Electrical Life10,000 cycles
Mechanical Life20,000 cycles
IP ProtectionIP20
Operating Temp-35°C to +70°C
StandardIEC/EN 60898-1
