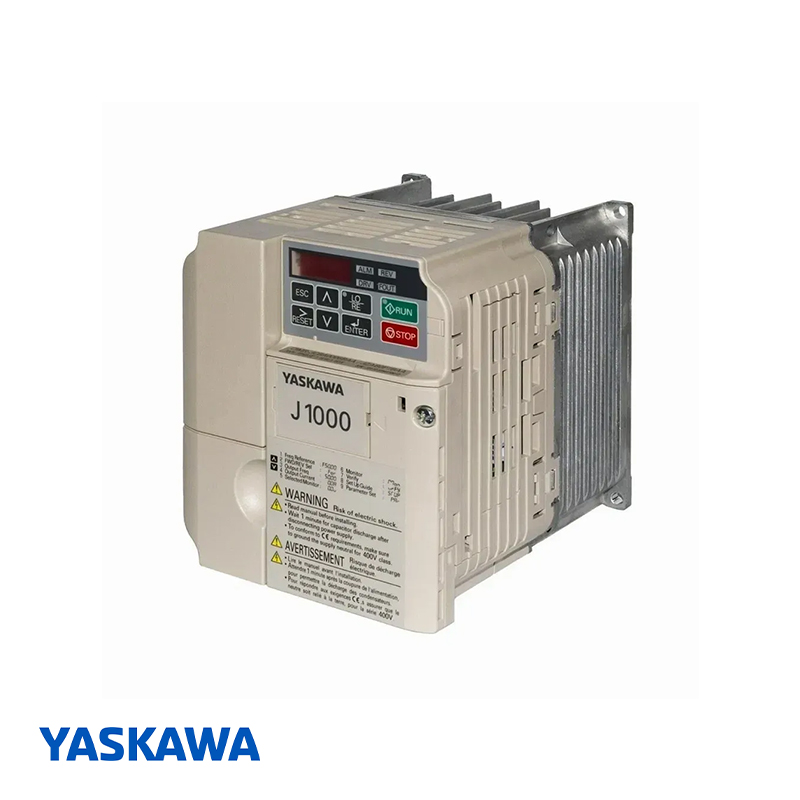

Yaskawa J1000 user-friendly variable frequency drive

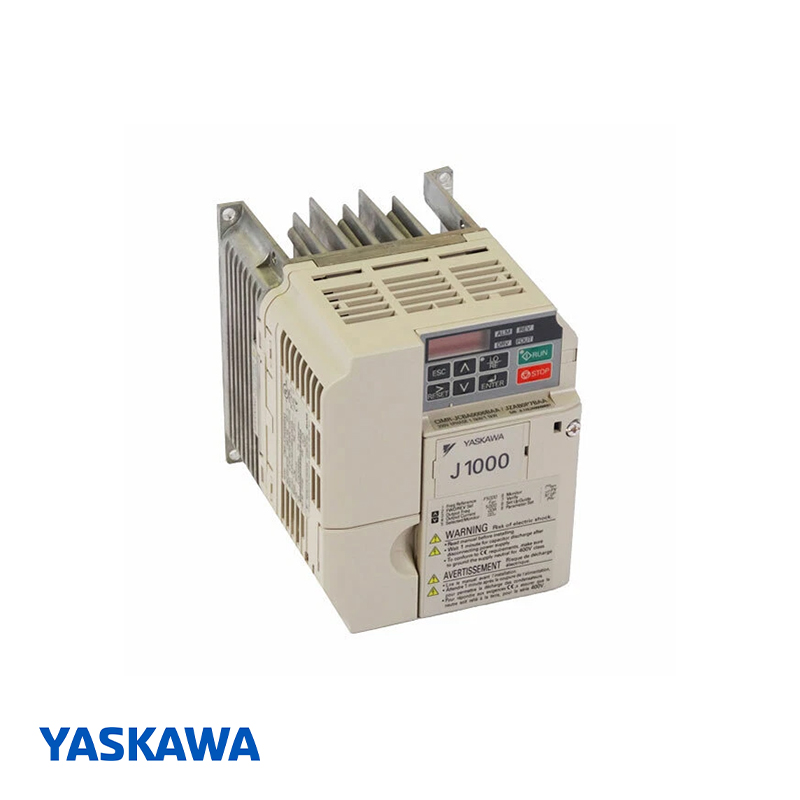

Yaskawa J1000 user-friendly variable frequency drive - Image 2
Yaskawa J1000 user-friendly variable frequency drive - Image 3

Yaskawa J1000 user-friendly variable frequency drive

Manufacturer: Yaskawa
Model: J1000 Compact Drive
Power Range: 0.1 – 7.5 kW (1/8 – 10 hp)
Supply Voltage: 200–240V AC (Single/Three-phase), 380–480V AC (Three-phase)
Protection Rating: IP20 (standard), NEMA Type 1 (optional)

Get a Quote

Product Description

The Yaskawa J1000 is a compact and user-friendly variable frequency drive designed for simple applications requiring reliable speed control and energy efficiency. With its space-saving design, intuitive operation, and robust protection features, the J1000 delivers consistent performance for small motors in conveyors, fans, pumps, and other light-duty machinery. Built to reduce energy consumption and extend motor life, it ensures a cost-effective solution for industries seeking efficiency, simplicity, and durability.

Standard Features

  • Motor Control: V/f control for induction motors, stable low-speed performance

  • Energy Saving: Automatic energy optimization for reduced operating cost

  • Protection Functions: Overload, overcurrent, overvoltage, undervoltage, ground fault, stall prevention

  • Start/Stop Options: Adjustable accel/decel ramps, DC injection braking

  • Communication: Built-in RS-485 Modbus RTU interface

  • Diagnostics: Fault history, status monitoring, self-diagnostics

  • Installation: Compact design for side-by-side mounting, DIN rail option

  • Reliability: Designed for long service life, conformal coating for harsh environments

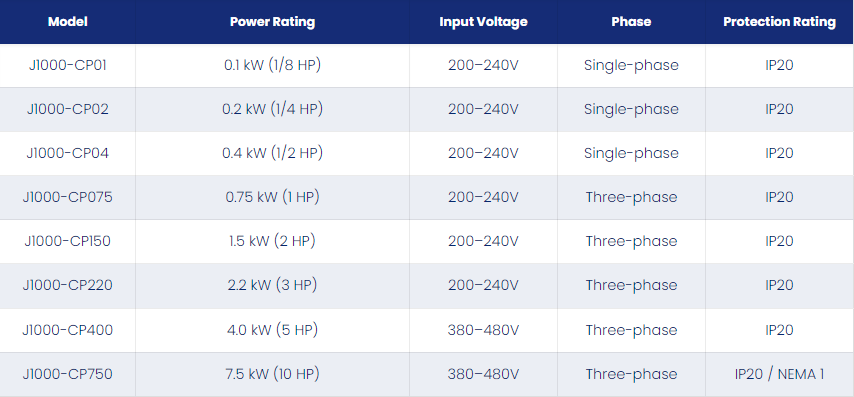

Technical Specifications

ModelPower RatingInput VoltagePhaseProtection Rating
J1000-CP010.1 kW (1/8 HP)200–240VSingle-phaseIP20
J1000-CP020.2 kW (1/4 HP)200–240VSingle-phaseIP20
J1000-CP040.4 kW (1/2 HP)200–240VSingle-phaseIP20
J1000-CP0750.75 kW (1 HP)200–240VThree-phaseIP20
J1000-CP1501.5 kW (2 HP)200–240VThree-phaseIP20
J1000-CP2202.2 kW (3 HP)200–240VThree-phaseIP20
J1000-CP4004.0 kW (5 HP)380–480VThree-phaseIP20
J1000-CP7507.5 kW (10 HP)380–480VThree-phaseIP20 / NEMA 1
