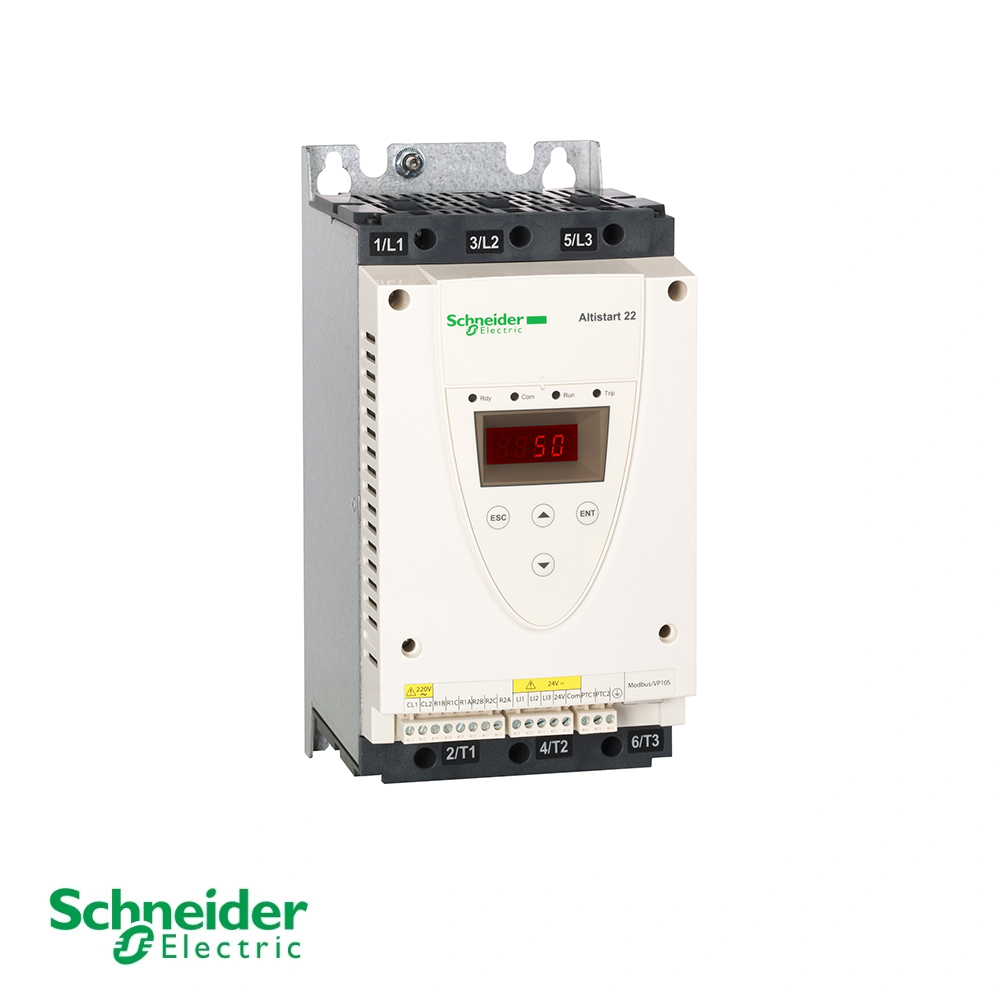

Altistart 22 Soft Starters

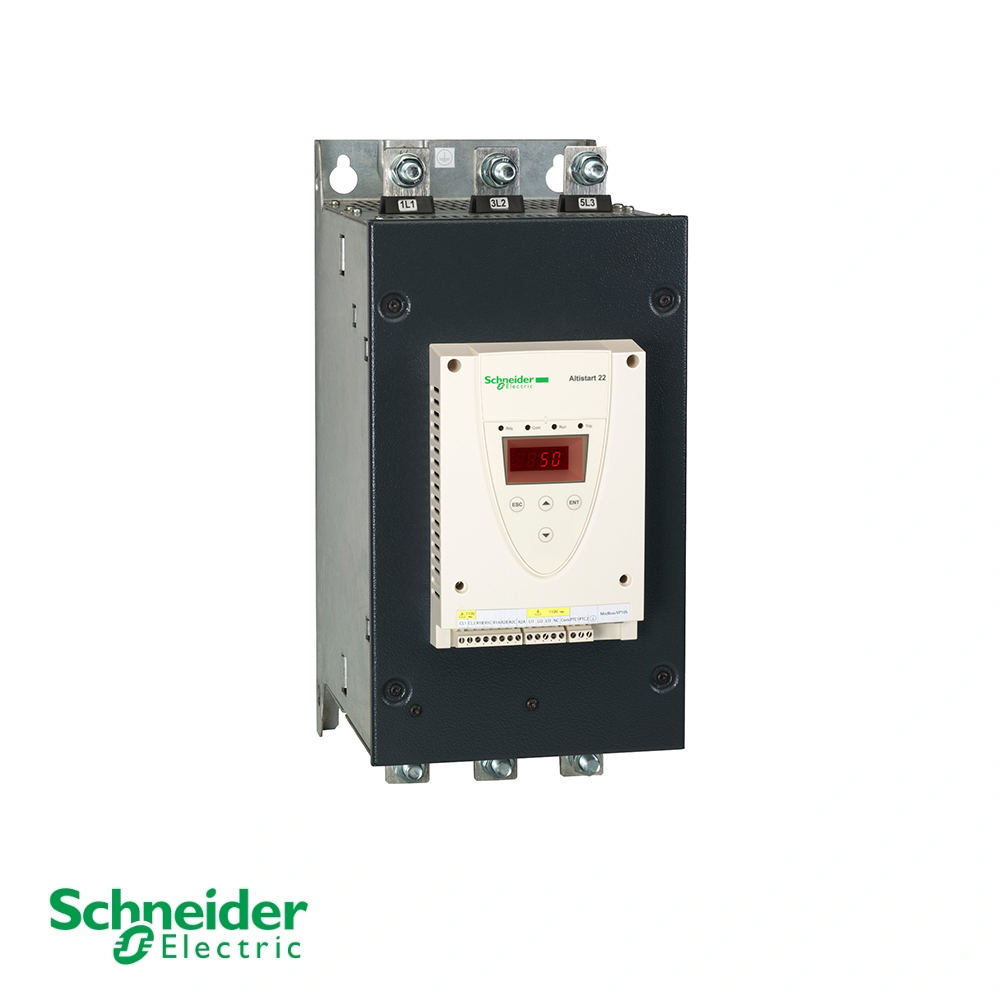

Altistart 22 Soft Starters - Image 2

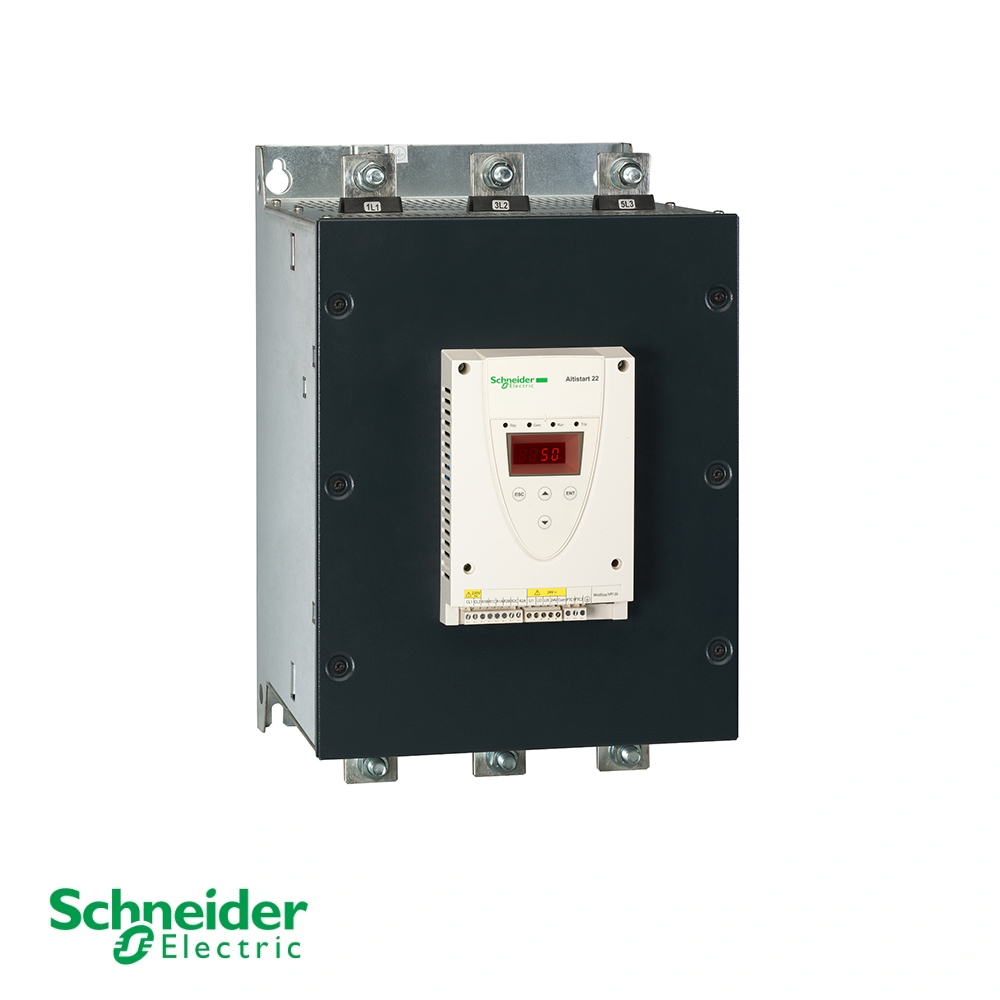

Altistart 22 Soft Starters - Image 3

Altistart 22 Soft Starters

Manufacturer: Schneider
Model: ATS22
Motor rated power range: 4 to 400 kW
Working principle: Starting and stopping of three-phase squirrel-cage asynchronous motors by voltage and torque control

Get a Quote

Product Description

The Altistart 22 soft start/soft stop units support the controlled starting and stopping, via voltage and torque, of three-phase squirrel cage asynchronous motors for power ratings ranging from 4 to 400 kW. They are supplied ready for use in standard applications with class 10 motor protection.

Standard Features

Benefits of Altivar Soft Starter ATS22:

  • A smart, connected EcoStruxure-ready drive with built-in intelligence to gather data and share information at the enterprise level.
  • Improve operational efficiency, profitability and reduce the total cost of ownership (TCO).
  • Offers range from 0.75 kW to 2600 kW in all voltages with easy-to-use and consistent experience for usability, functionality, performance, and flexibility.
  • Cost-effective solution: Reduce the stress associated with electrical distribution while saving up on installation and machine operation.

Technical Specifications

Frame ratingBreaking CapacityNumber of PolesTrip unit ratingsModel name
C10F (36kA)316AC10F3TM016
C10F (36kA)340AC10F3TM040
C10F (36kA)380AC10F3TM080
C10F (36kA)425AC10F4TM025
C10F (36kA)450AC10F4TM050
C10F (36kA)463AC10F6TM063
C10F (36kA)4100AC10F6TM100
C16F (36kA)380AC16F3TM080
C16F (36kA)3125AC16F3TM125
C16F (36kA)3160AC16F3TM160
C16F (36kA)4100AC16F6TM100
C16F (36kA)4160AC16F6TM160
C16F (36kA)480AC16F4TM080
C16F (36kA)4125AC16F4TM125
C25F (36kA)3125AC25F3TM125
C25F (36kA)3200AC25F3TM200
C25F (36kA)3250AC25F3TM250
C25F (36kA)4160AC25F6TM160
C25F (36kA)4200AC25F4TM200
C25F (36kA)4250AC25F4TM250
