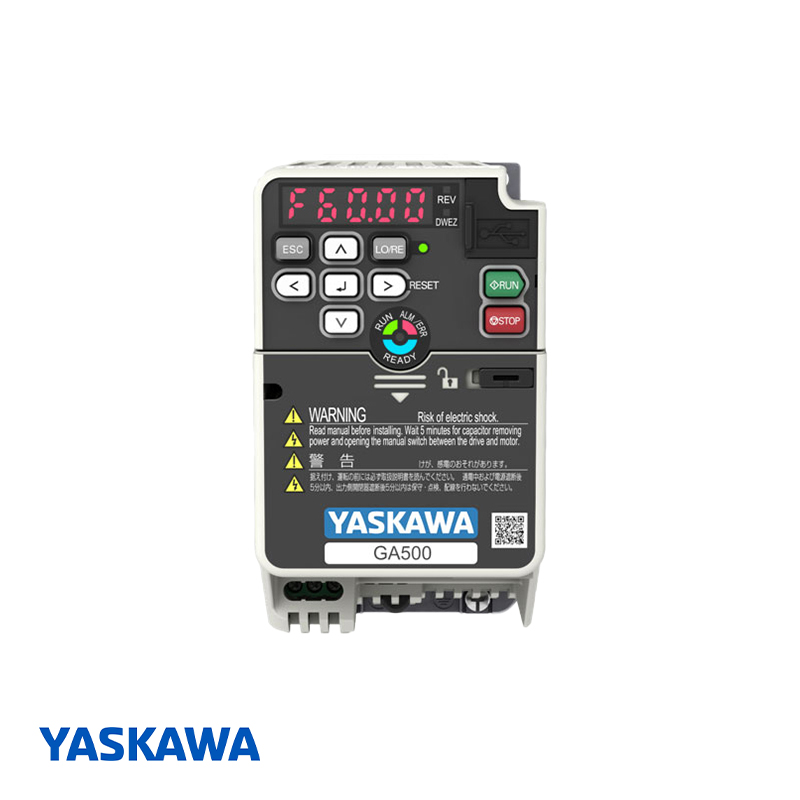

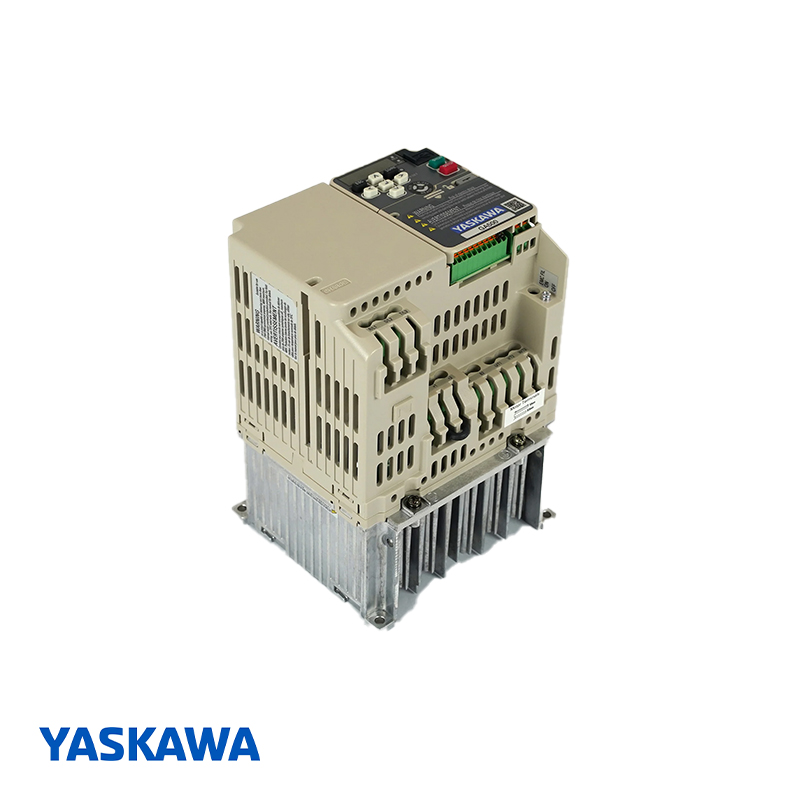

Yaskawa GA500 Variable Frequency Drive
Yaskawa GA500 Variable Frequency Drive - Image 2
Yaskawa GA500 Variable Frequency Drive - Image 3

Yaskawa GA500 Variable Frequency Drive

Manufacturer: Yaskawa
Model: GA500 Variable Frequency Drive
Power Range: 0.1–30 kW (0.2–40 hp)
Supply Voltage: 200–240V AC (Single/Three-phase) 或 380–480V AC (Three-phase)
Protection Rating: IP20, NEMA Type 1 (optional)

Get a Quote

Product Description

The Yaskawa GA500 series is a compact and versatile variable frequency drive (VFD) designed for easy integration, high efficiency, and reliable performance. Supporting a wide range of motor types including induction, permanent magnet, and synchronous reluctance motors, the GA500 offers flexible control for industrial and commercial applications. With a wide power range, advanced safety features, and energy-saving functions, it ensures optimized operation in HVAC, pumps, conveyors, and machine automation. Its intuitive interface and flexible communication options make installation and operation effortless.

Customer Feedback | Field Experience

“We chose the Yaskawa GA500 VFD mainly because of its competitive pricing and strong stock availability — we could get it immediately when needed.

In actual operation, it performs very efficiently and helps reduce energy consumption. This fully meets our factory’s energy efficiency requirements and lowers the hidden long-term cost of ownership.

Overall, it has been a very practical choice for our application.”

Ready Stock Energy Efficient Lower Total Cost

Standard Features

  • Motor Control: Supports induction, permanent magnet, and synchronous reluctance motors

  • Energy Saving: Built-in energy optimization for reduced operating cost

  • Protection Functions: Overcurrent, overvoltage, undervoltage, motor overload, and ground fault protection

  • Start/Stop Options: Soft start, ramp control, and DC braking functions

  • Communication: Built-in RS-485 Modbus, optional EtherNet/IP, PROFINET, DeviceNet, and BACnet

  • Programmability: Embedded PLC functionality with customizable logic programming

  • Diagnostics: Fault logging, predictive maintenance monitoring, and event history

  • Installation Flexibility: Compact size, side-by-side mounting, and easy wiring

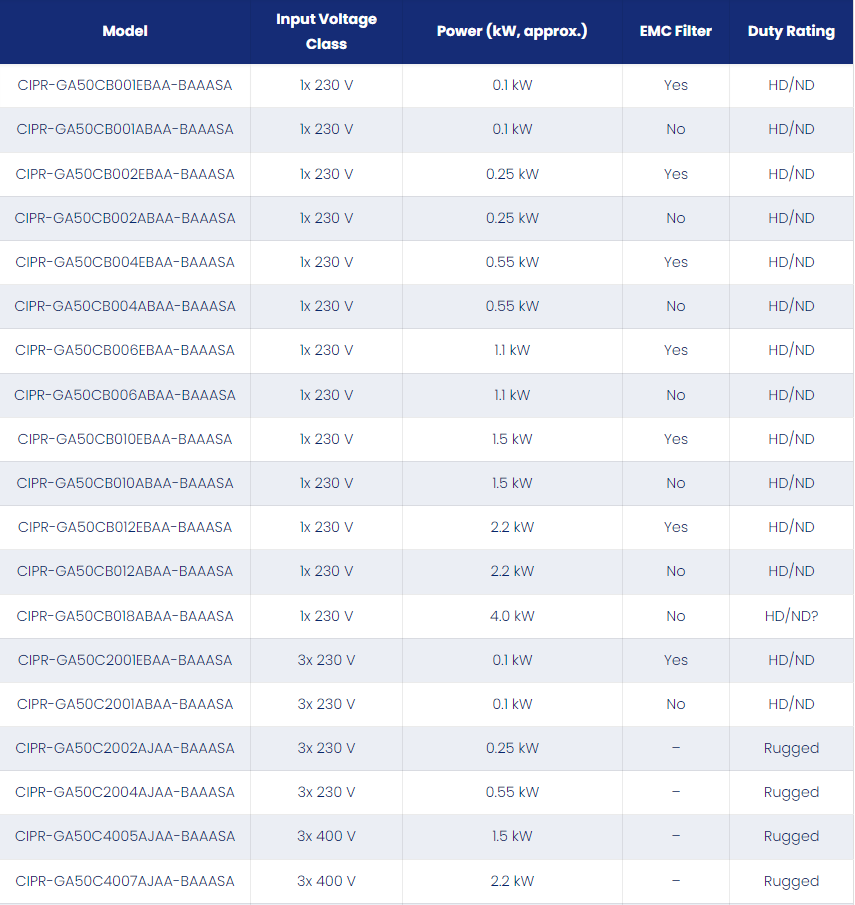

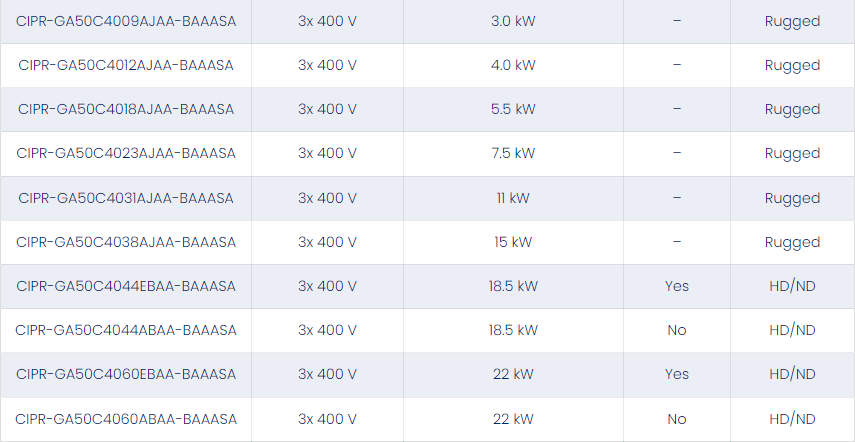

Technical Specifications

ModelInput Voltage ClassPower (kW, approx.)EMC FilterDuty Rating
CIPR-GA50CB001EBAA-BAAASA1x 230 V0.1 kWYesHD/ND
CIPR-GA50CB001ABAA-BAAASA1x 230 V0.1 kWNoHD/ND
CIPR-GA50CB002EBAA-BAAASA1x 230 V0.25 kWYesHD/ND
CIPR-GA50CB002ABAA-BAAASA1x 230 V0.25 kWNoHD/ND
CIPR-GA50CB004EBAA-BAAASA1x 230 V0.55 kWYesHD/ND
CIPR-GA50CB004ABAA-BAAASA1x 230 V0.55 kWNoHD/ND
CIPR-GA50CB006EBAA-BAAASA1x 230 V1.1 kWYesHD/ND
CIPR-GA50CB006ABAA-BAAASA1x 230 V1.1 kWNoHD/ND
CIPR-GA50CB010EBAA-BAAASA1x 230 V1.5 kWYesHD/ND
CIPR-GA50CB010ABAA-BAAASA1x 230 V1.5 kWNoHD/ND
CIPR-GA50CB012EBAA-BAAASA1x 230 V2.2 kWYesHD/ND
CIPR-GA50CB012ABAA-BAAASA1x 230 V2.2 kWNoHD/ND
CIPR-GA50CB018ABAA-BAAASA1x 230 V4.0 kWNoHD/ND?
CIPR-GA50C2001EBAA-BAAASA3x 230 V0.1 kWYesHD/ND
CIPR-GA50C2001ABAA-BAAASA3x 230 V0.1 kWNoHD/ND
CIPR-GA50C2002AJAA-BAAASA3x 230 V0.25 kW–Rugged
CIPR-GA50C2004AJAA-BAAASA3x 230 V0.55 kW–Rugged
CIPR-GA50C4005AJAA-BAAASA3x 400 V1.5 kW–Rugged
CIPR-GA50C4007AJAA-BAAASA3x 400 V2.2 kW–Rugged
CIPR-GA50C4009AJAA-BAAASA3x 400 V3.0 kW–Rugged
CIPR-GA50C4012AJAA-BAAASA3x 400 V4.0 kW–Rugged
CIPR-GA50C4018AJAA-BAAASA3x 400 V5.5 kW–Rugged
CIPR-GA50C4023AJAA-BAAASA3x 400 V7.5 kW–Rugged
CIPR-GA50C4031AJAA-BAAASA3x 400 V11 kW–Rugged
CIPR-GA50C4038AJAA-BAAASA3x 400 V15 kW–Rugged
CIPR-GA50C4044EBAA-BAAASA3x 400 V18.5 kWYesHD/ND
CIPR-GA50C4044ABAA-BAAASA3x 400 V18.5 kWNoHD/ND
CIPR-GA50C4060EBAA-BAAASA3x 400 V22 kWYesHD/ND
CIPR-GA50C4060ABAA-BAAASA3x 400 V22 kWNoHD/ND
