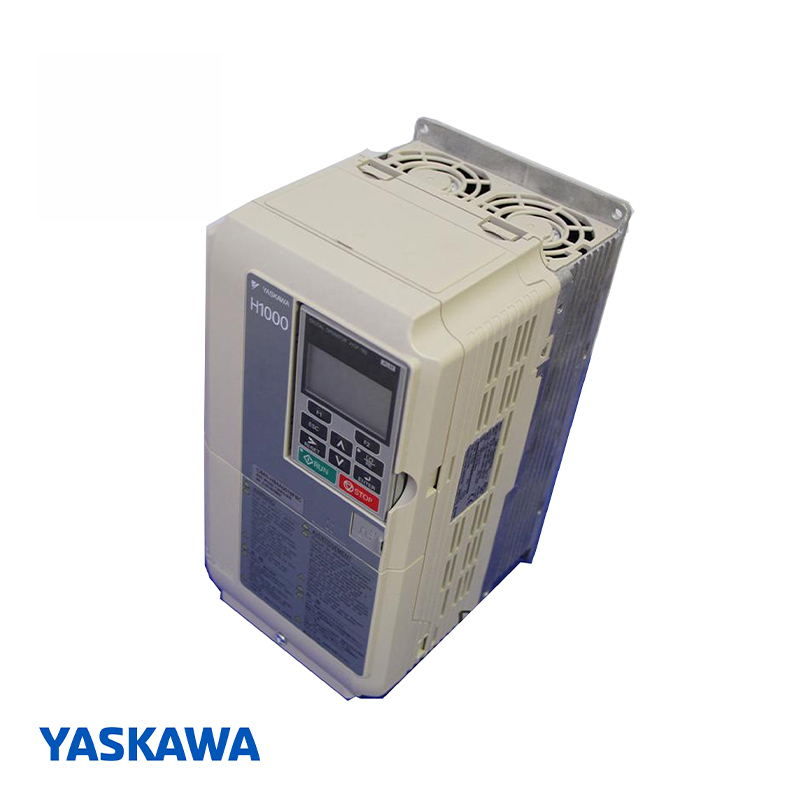

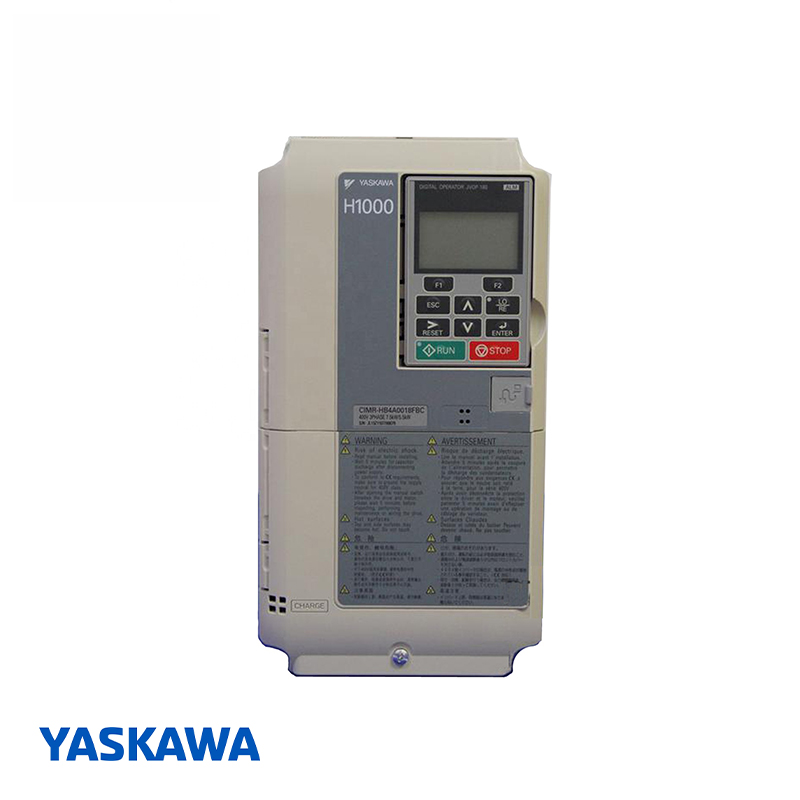

YASKAWA AC Drive H1000
YASKAWA AC Drive H1000 - Image 2
YASKAWA AC Drive H1000 - Image 3

YASKAWA AC Drive H1000

Part Number: CIMR-HB4A0031FBC / CIMR-JB4A0005BBA / CIMR-VB2A0056FBA / CIMR-HB4A0009FBC / CIMR-HB4A0006FBC / CIMR-AB4A0675ABA
Manufacturer: Yaskawa
Model: H1000 Variable Frequency Drive
Power Range: 3.7–630 kW (5–850 hp)
Supply Voltage: 200–240V AC, 380–480V AC, 500–600V AC (3-phase)
Protection Rating: IP20, IP54, NEMA 1, NEMA 12

Get a Quote

Product Description

Yaskawa H1000 Series​ (CIMR-HB) is a heavy-duty industrial inverter (0.4–560kW, 400V/200V) with ​100Hz vector control, ​dual HD/SHD ratings, regenerative energy recovery (D1000/R1000), crane-specific modes, and 10-year design life for cranes, pumps, and elevators.

Standard Features

Two types of enclosures are offered for H1000 drives.

  • IP00 enclosure models are designed for installation in an enclosure panel that serves to protect personnel from injury caused by accidentally touching live parts.
  • IP20/NEMA Type 1 enclosure models mount to an indoor wall or in an enclosure panel.

Technical Specifications

Voltage ClassIP20/NEMA Type 1 EnclosureIP00 Enclosure
Three-Phase
 200 V Class		CIMR-H2A0005F-
CIMR-H2A0008F-
CIMR-H2A0011F-
CIMR-H2A0018F-
Three-Phase
 200 V Class		CIMR-H2A0025F -
CIMR-H2A0033F -
CIMR-H2A0047F -
CIMR-H2A0060F-
CIMR-H2A0075F-
CIMR-H2A0085F -
CIMR-H2A0115FCIMR-H2A0115A
CIMR-H2A0145FCIMR-H2A0145A
CIMR-H2A0180FCIMR-H2A0180A
CIMR-H2A0215FCIMR-H2A0215A
CIMR-H2A0283FCIMR-H2A0283A
CIMR-H2A0346FCIMR-H2A0346A
-CIMR-H2A0415A
Three-Phase
400 V Class		CIMR-H4A0003F-
CIMR-H4A0005F -
CIMR-H4A0006F -
CIMR-H4A0009F-
CIMR-H4A0015F-
CIMR-H4A0018F-
CIMR-H4A0024F-
CIMR-H4A0031F-
CIMR-H4A0039F-
CIMR-H4A0045F-
CIMR-H4A0060FCIMR-H4A0060A
CIMR-H4A0075FCIMR-H4A0075A
CIMR-H4A0091FCIMR-H4A0091A
CIMR-H4A0112FCIMR-H4A0112A
CIMR-H4A0150FCIMR-H4A0150A
CIMR-H4A0180FCIMR-H4A0180A
CIMR-H4A0216FCIMR-H4A0216A
CIMR-H4A0260FCIMR-H4A0260A
CIMR-H4A0304F CIMR-H4A0304A
-CIMR-H4A0370A
-CIMR-H4A0450A
-CIMR-H4A0515A
-CIMR-H4A0605A
-CIMR-H4A0810A
-CIMR-H4A1090A
