Turck NI50-CP80-FZ3X2 Inductive Proximity Sensor
Turck NI50-CP80-FZ3X2 Inductive Proximity Sensor - Image 2
Turck NI50-CP80-FZ3X2 Inductive Proximity Sensor - Image 3

Turck NI50-CP80-FZ3X2 Inductive Proximity Sensor

Manufacturer: Turck
Model:NI50-CP80-FZ3X2
Sensing Principle: Inductive Proximity
Sensing Range:50 mm (2 in)
Supply Voltage: 10-30V DC
0utput Type:PNP Normally Open
Protection Rating: IP67,IP69K
Housing Material: Stainless Steel AISI 303

Get a Quote

Product Description

The Turck NI50-CP80-FZ3X2 is a high-performance inductive proximity sensor designed for long-range detection applications in industrial automation. Featuring a robust metal threaded design with a 50 mm sensing range, it operates reliably in harsh industrial environments. Its fully-flush mounting capability allows easy integration into machine structures like a standard nut, significantly simplifying installation.

Standard Features

  • Extended Range: 12 mm sensing distance for versatile metal detection.

  • Rugged Housing: M18 nickel-plated brass body ensures durability.

  • Stable Output: PNP normally open output for easy PLC integration.

  • Reliable Operation: High immunity to electrical noise and vibration.

  • Wide Voltage Range: Operates on 10–30 VDC for flexible installation.

  • IP67 Protection: Suitable for use in dusty, oily, or wet environments.

  • Maintenance-Free: Non-contact sensing eliminates wear and mechanical failure.

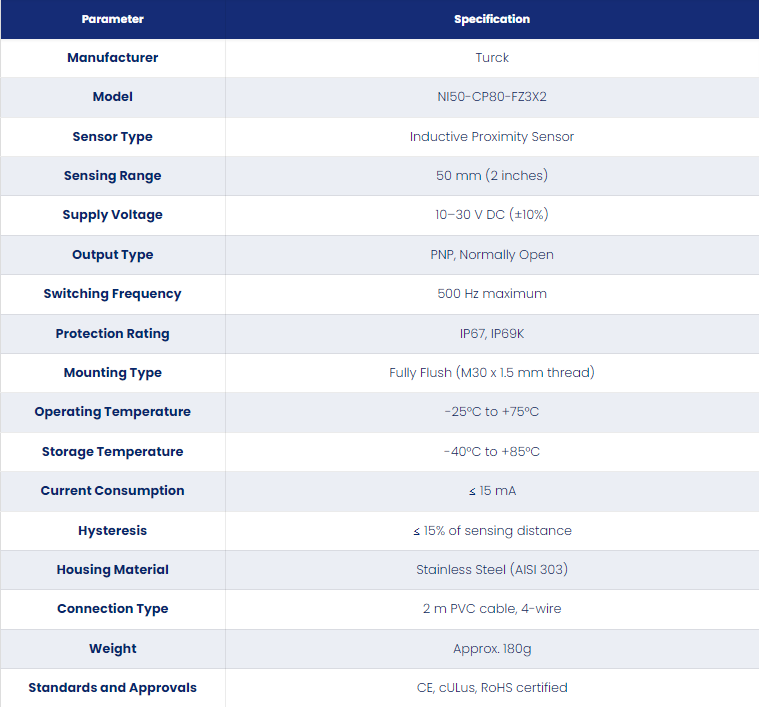

Technical Specifications

Parameter Specification
ManufacturerTurck
ModelNI50-CP80-FZ3X2
Sensor TypeInductive Proximity Sensor
Sensing Range50 mm (2 inches)
Supply Voltage10–30 V DC (±10%)
Output TypePNP, Normally Open
Switching Frequency500 Hz maximum
Protection RatingIP67, IP69K
Mounting TypeFully Flush (M30 x 1.5 mm thread)
Operating Temperature-25°C to +75°C
Storage Temperature-40°C to +85°C
Current Consumption≤ 15 mA
Hysteresis≤ 15% of sensing distance
Housing MaterialStainless Steel (AISI 303)
Connection Type2 m PVC cable, 4-wire
WeightApprox. 180g
Standards and ApprovalsCE, cULus, RoHS certified
```
