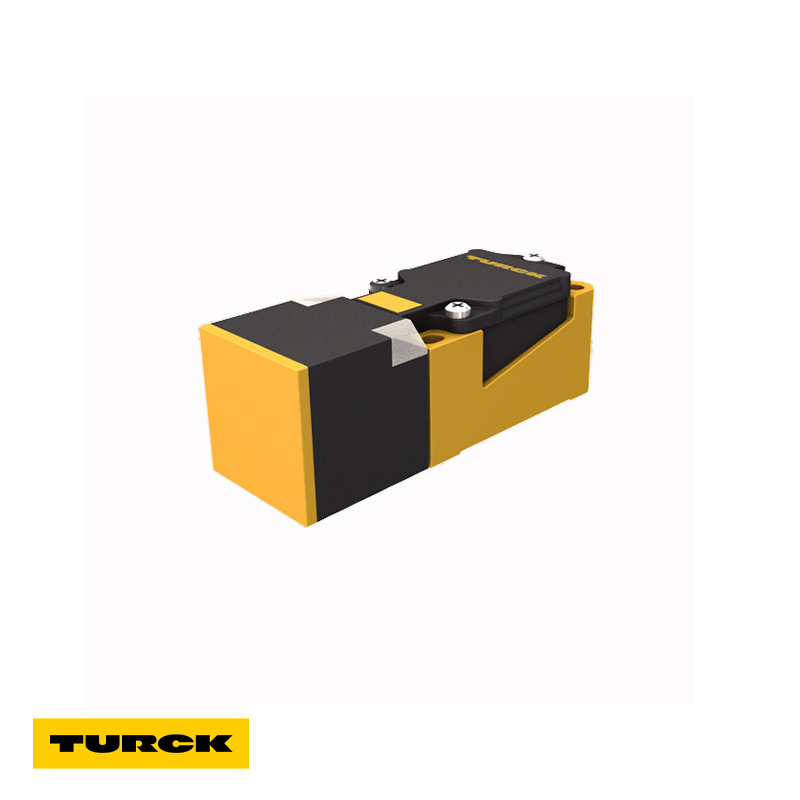

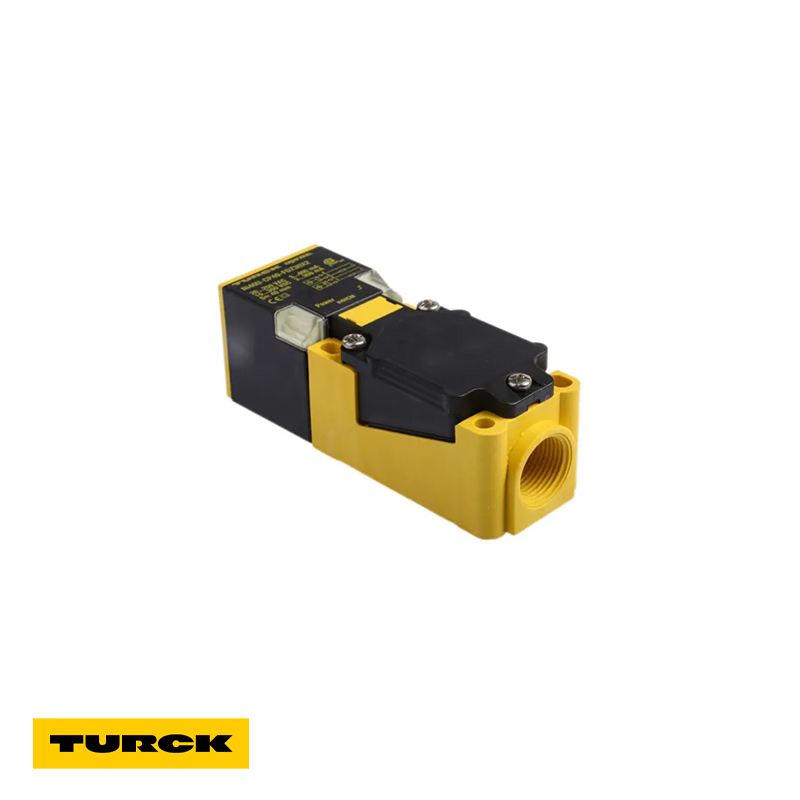

Turck NI40U-CP40-FDZ30X2 Inductive Proximity Sensor
Turck NI40U-CP40-FDZ30X2 Inductive Proximity Sensor - Image 2
Turck NI40U-CP40-FDZ30X2 Inductive Proximity Sensor - Image 3

Turck NI40U-CP40-FDZ30X2 Inductive Proximity Sensor

Manufacturer: Turck
Model: NI40U-CP40-FDZ30X2
Sensing Range: 40 mm (flush)
Output Type: PNP, Normally Open
Supply Voltage: 10–30 V DC
Protection Rating: IP68

Get a Quote

Product Description

The Turck NI40U-CP40-FDZ30X2 is a high-performance inductive proximity sensor designed for reliable object detection in harsh industrial environments. Featuring a sensing range of 40 mm and IP68 protection, it ensures stable operation in wet, dusty, or vibration-prone conditions. With a flush-mount design and 3-wire DC connection, this sensor offers precise detection, robust build, and long service life for automation and machinery applications.

Standard Features

  • Detection Range: 40 mm sensing distance for reliable metallic target detection

  • Durability: IP68 protection for dust-tight and water-resistant performance

  • Output Type: PNP normally open output for flexible PLC integration

  • Mounting: Flush-mount cylindrical housing, easy to install

  • Indication: Integrated LED for output status visualization

  • Temperature Range: -25°C to +70°C for harsh environment operation

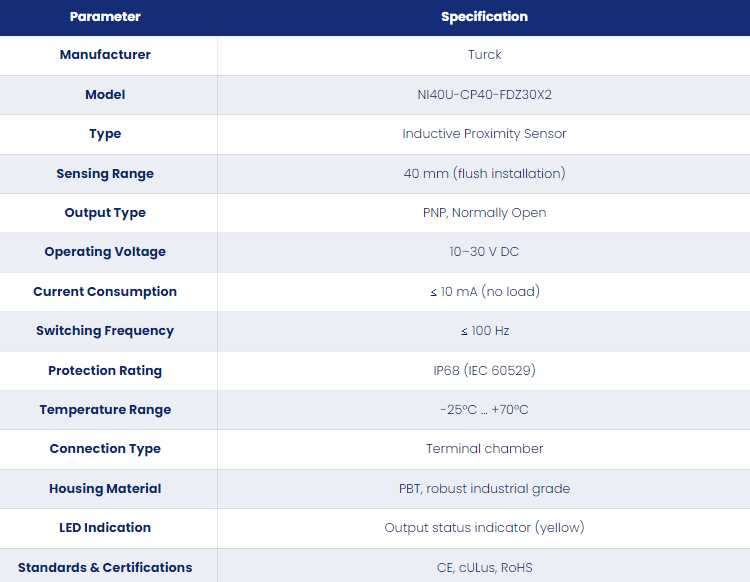

Technical Specifications

ParameterSpecification
ManufacturerTurck
ModelNI40U-CP40-FDZ30X2
TypeInductive Proximity Sensor
Sensing Range40 mm (flush installation)
Output TypePNP, Normally Open
Operating Voltage10–30 V DC
Current Consumption≤ 10 mA (no load)
Switching Frequency≤ 100 Hz
Protection RatingIP68 (IEC 60529)
Temperature Range-25°C … +70°C
Connection TypeTerminal chamber
Housing MaterialPBT, robust industrial grade
LED IndicationOutput status indicator (yellow)
Standards & CertificationsCE, cULus, RoHS
