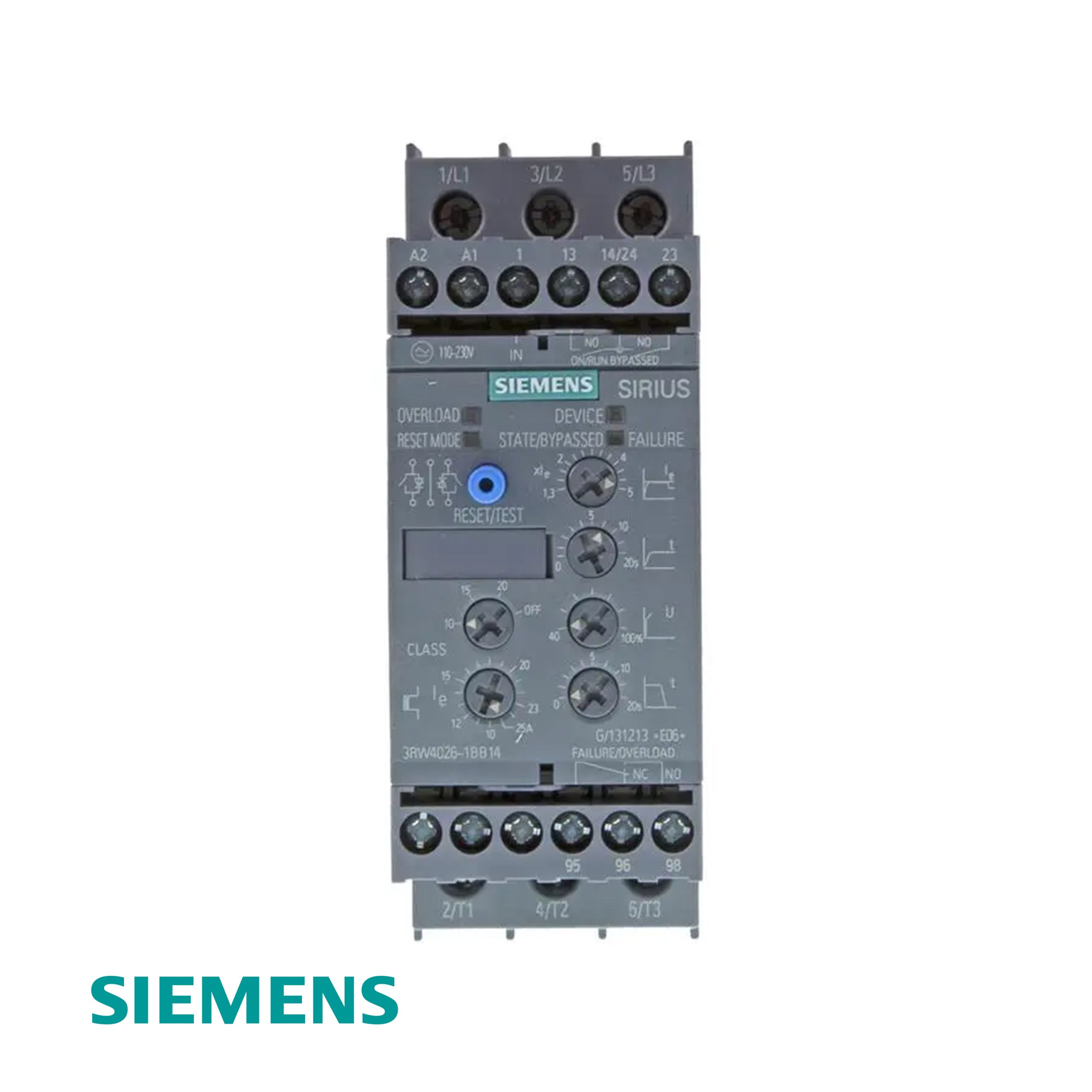

Siemens SIRIUS 3RW402 Series Soft Starter 12.5-38A 5.5-18.5kW 200-600V AC S0

Product Description

The Siemens SIRIUS 3RW402 series is a compact soft starter range designed for smooth starting and stopping of three-phase asynchronous motors in industrial applications. The series covers rated operational currents from 12.5 to 38 A and supports motors from 5.5 to 18.5 kW at 400 V, depending on the selected variant. Available versions support main circuit voltages of 200–480 V AC or 400–600 V AC. Integrated electronic motor overload protection, adjustable current limiting, two-phase control, and a built-in bypass contact system help reduce electrical and mechanical stress while minimizing power losses during continuous operation.

Standard Features

• 12.5–38 A product range: Available in multiple current ratings for small and medium three-phase motor applications.
• 5.5–18.5 kW @ 400 V: Covers several motor power ratings depending on the selected 3RW402 variant.
• Electronic motor overload protection: Provides integrated protection without requiring a separate overload relay in typical applications.
• Adjustable current limiting: Helps control motor starting current and reduce loading on the electrical supply.
• Two-phase control: Provides smooth motor acceleration and deceleration with compact power electronics.
• Integrated bypass: Reduces power losses and heat generation after the motor reaches operating speed.
• Flexible voltage variants: Available for 200–480 V AC and 400–600 V AC main circuits with different control-voltage options.

Technical Specifications
