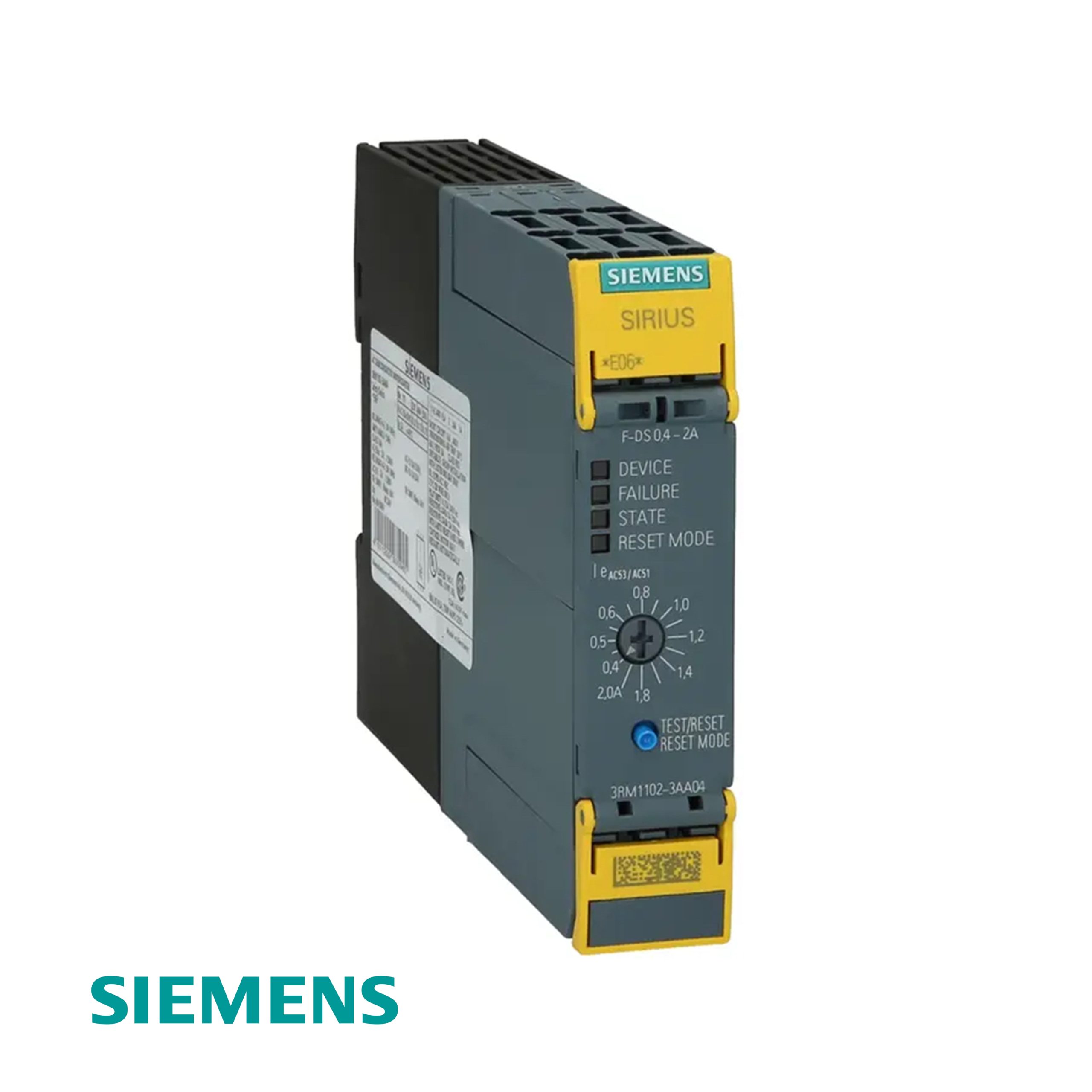

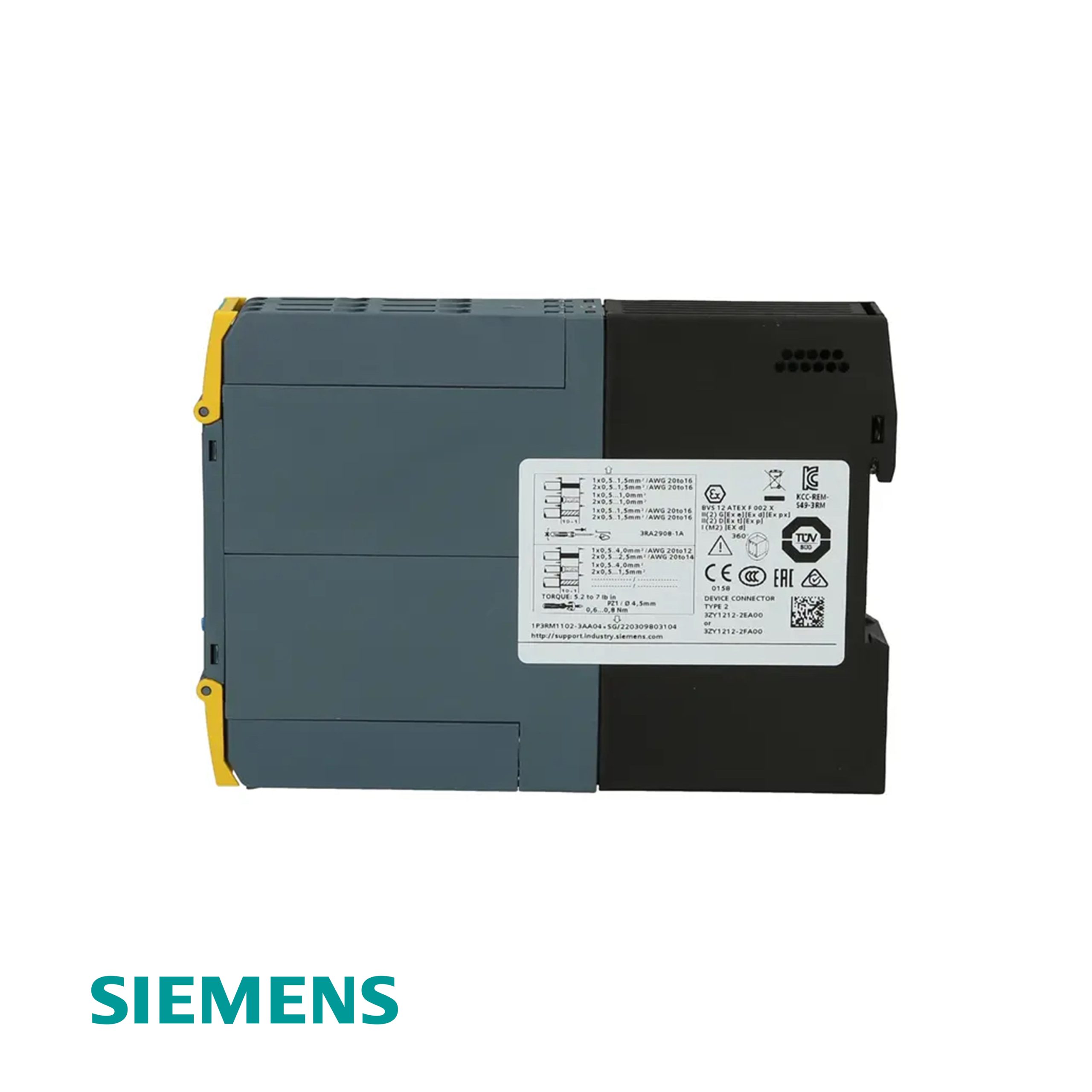

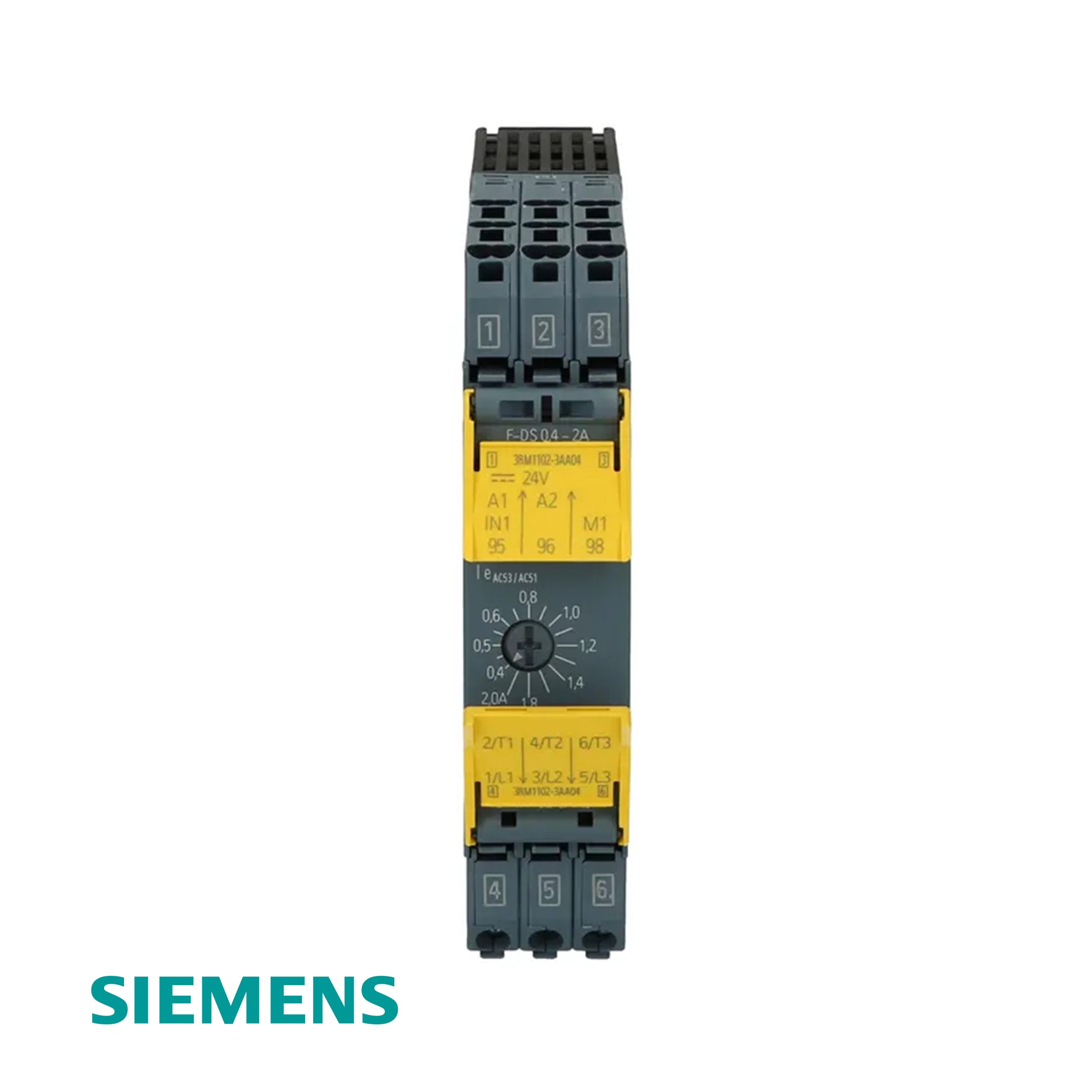

Siemens SIRIUS 3RM11 Series Fail-Safe Direct-On-Line Motor Starter 0.1-7A Up to 3kW 500V

Product Description

The Siemens SIRIUS 3RM11 is a fail-safe direct-on-line motor starter designed for switching, protecting, and safely shutting down three-phase motors in industrial automation systems. Part of the compact 3RM1 family, it combines hybrid switching technology with integrated electronic overload protection in a housing only 22.5 mm wide. Depending on the selected variant, the 3RM11 covers motor current ranges from 0.1 to 7 A and supports three-phase motors up to 3 kW at 400 V. Its safety functionality supports applications up to SIL 3 and PL e / Category 4, making it suitable for conveyors, machinery, assembly systems, and other safety-related motor control applications.

Standard Features

• Fail-safe direct-on-line starting: Combines standard motor switching with safety-related shutdown functionality.
• 0.1–7 A product range: Available in multiple current ranges for small three-phase motor applications.
• Up to 3 kW @ 400 V: Supports industrial three-phase motors across the 3RM11 product range.
• Hybrid switching technology: Combines semiconductor and relay technology for low-wear switching and efficient continuous operation.
• Electronic overload protection: Eliminates the need for a separate thermal overload relay in typical motor feeder configurations.
• SIL 3 / PL e safety capability: Supports safety-related shutdown applications up to SIL 3 and Performance Level e / Category 4.
• 22.5 mm compact width: Reduces control-panel space requirements compared with conventional motor starter combinations.
