Schneider Electric LC1D40AM7

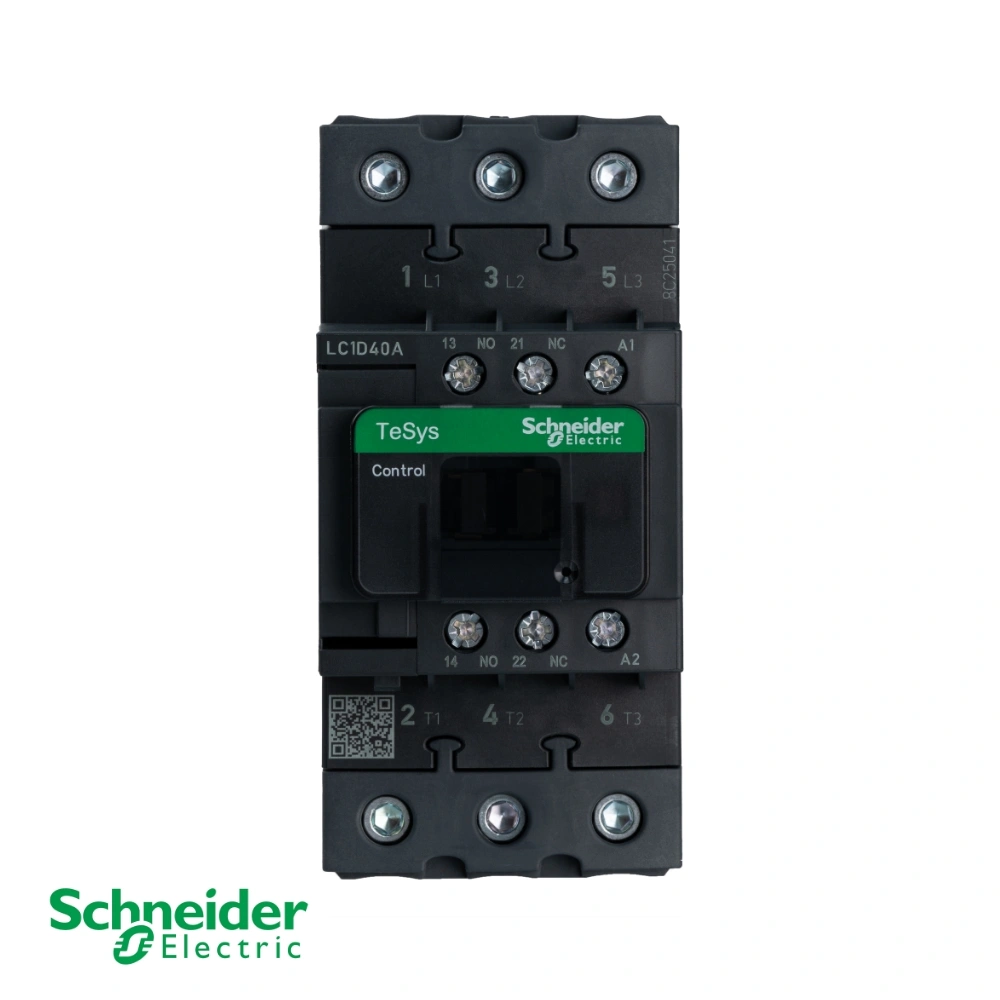

Schneider Electric LC1D40AM7 - Image 2

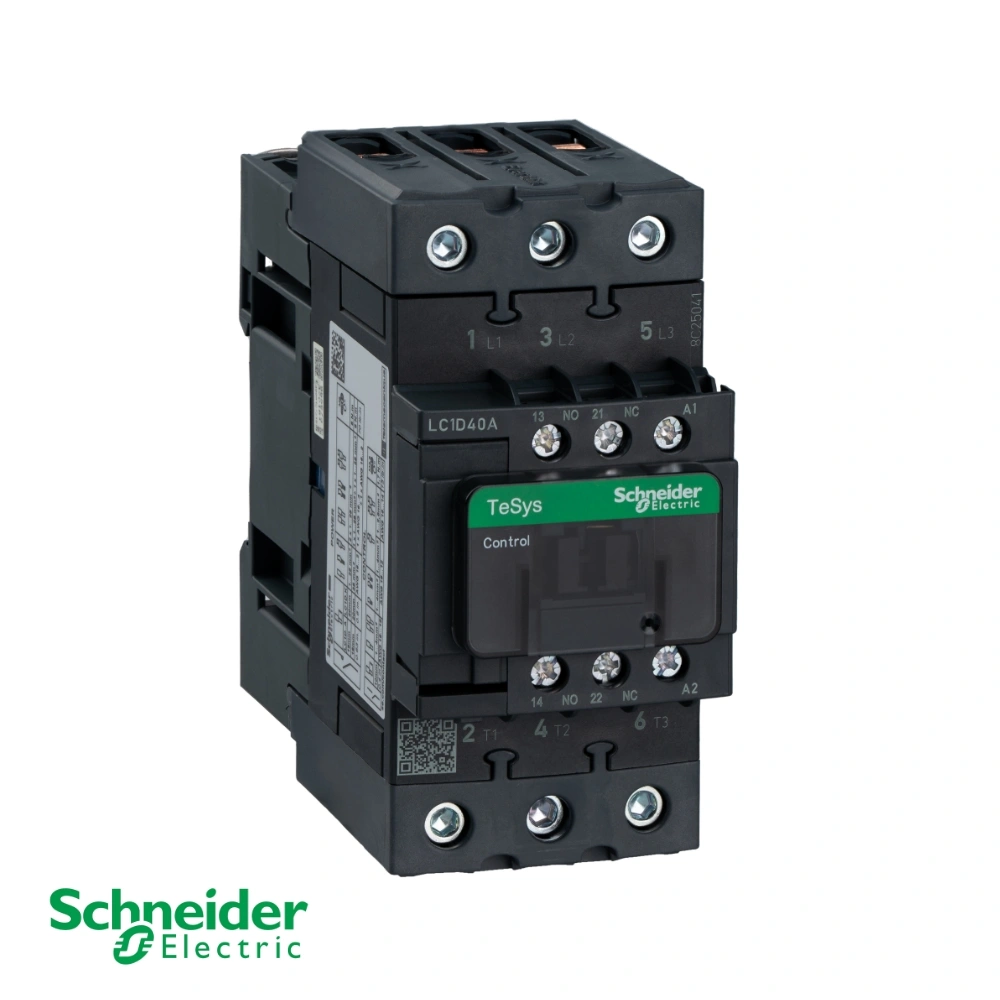

Schneider Electric LC1D40AM7 - Image 3

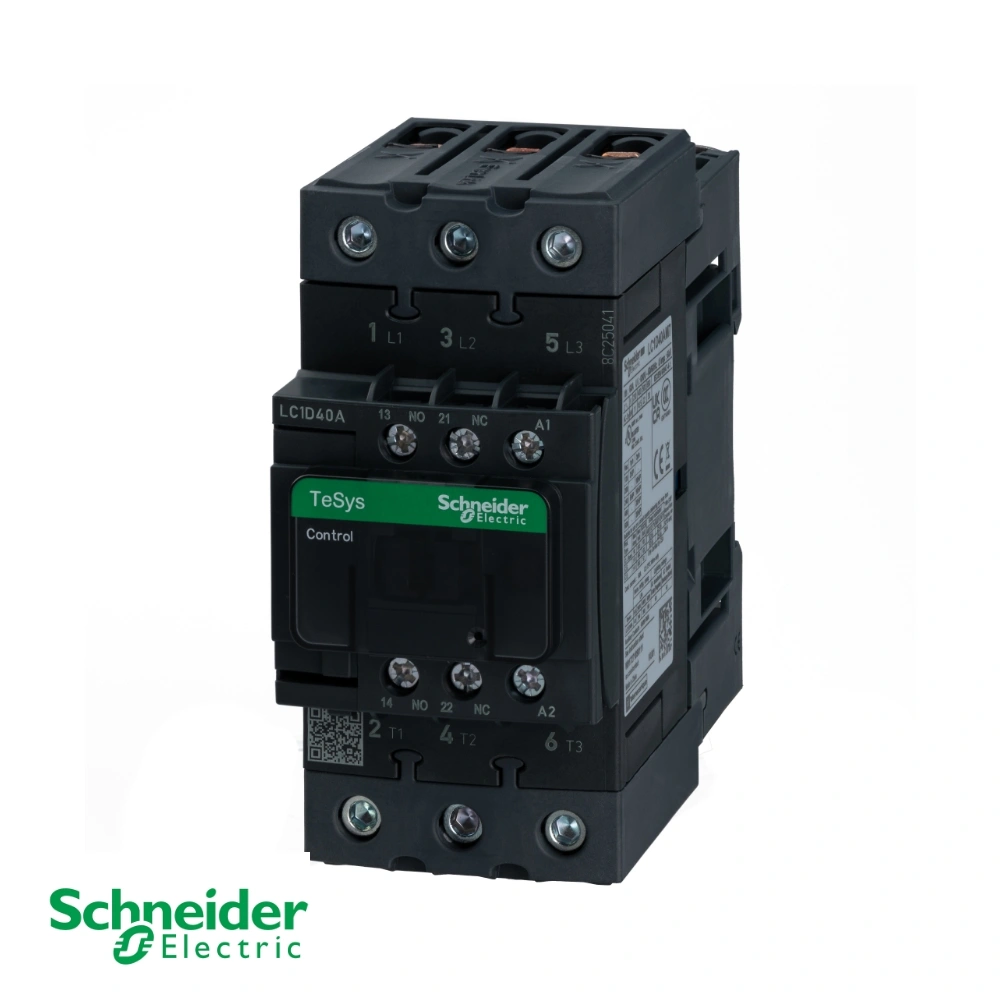

Schneider Electric LC1D40AM7

Manufacturer: Schneider Electric
Model: LC1D40AM7
Category: Industrial Relay, General Purpose Relay
Coil Voltage: 220 VAC
Rated Current: 40 A
Number of Poles: 3
Mounting Type: DIN Rail
Operating Voltage: 600 VAC
Contact Type: 3PST-NO
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 90°C

Get a Quote

Product Description

The TeSys Deca contactor is a 3-pole (3NO) device for motor control, supporting up to 40A/440V AC-3/3e (18.5kW @ 400V).

Coil and Auxiliary Contacts
It features a 220V 50/60Hz AC coil and 1NO+1NC auxiliary contacts (NC mirror certified), offering high reliability for up to 3600 cycles/hour in environments up to 60°C.

Mounting and Application
Compact in design, it can be mounted on a DIN rail or by screws, and is rated for various HP applications across different voltages.

Certifications and Standards
Certified to multiple standards (IEC, UL, CSA, CCC, EAC, Marine), it achieves an SCCR of up to 100kA when used with compatible circuit breakers or fuses.

Connection and Accessories
It comes with screw clamp terminals for easy connections and supports a range of accessories to meet diverse needs.

Dimensions and Weight
The contactor measures 4.80" x 2.17" x 4.72" and weighs 1.87 lbs, ensuring compliance and reliability in various operational settings.

Standard Features

The Schneider Electric LC1D40AM7 is a TeSys D series contactor designed for controlling three-phase AC motors. Its standard features include:

  • 1. Rated Current : 40A at 380-440V AC (AC-3 category) for reliable motor switching.
  • 2. Coil Voltage : 24V DC (denoted by "M7" in the model code).
  • 3. Poles : 3 NO (Normally Open) main contacts for power circuit control.
  • 4. Auxiliary Contacts : Configurable with optional NO/NC (Normally Closed) modules.
  • 5. Standards Compliance : Meets IEC/EN 60947-4-1, ensuring safety and performance.
  • 6. Applications : Motor starting, stopping, and reversing in industrial systems; compatible with overload relays for full motor protection.
  • 7. Durability : High mechanical and electrical endurance for frequent operations.

Technical Specifications

Attribute NameAttribute Value
RangeTeSys
TeSys Deca
Range of ProductTeSys Deca
Product or Component TypeContactor
Device short nameLC1D
Contactor applicationResistive load
Motor control
Utilisation categoryAC-4
AC-1
AC-3
AC-3e
Poles description3P
[Ue] rated operational voltagePower circuit <= 690 V AC 25...400 Hz
Power circuit <= 300 V DC
[Ie] rated operational current60 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit
40 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit
40 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit
[Uc] control circuit voltage220 V AC 50/60 Hz
Complementary - Motor power kW18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
11 kW at 220...230 V AC 50/60 Hz (AC-3)
22 kW at 415...440 V AC 50/60 Hz (AC-3)
22 kW at 500 V AC 50/60 Hz (AC-3)
30 kW at 660...690 V AC 50/60 Hz (AC-3)
9 kW at 400 V AC 50/60 Hz (AC-4)
18.5 kW at 380...400 V AC 50/60 Hz (AC-3e)
11 kW at 220...230 V AC 50/60 Hz (AC-3e)
22 kW at 415...440 V AC 50/60 Hz (AC-3e)
22 kW at 500 V AC 50/60 Hz (AC-3e)
30 kW at 660...690 V AC 50/60 Hz (AC-3e)
Maximum Horse Power Rating5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
10 hp at 230/240 V AC 50/60 Hz for 3 phase motors
30 hp at 575/600 V AC 50/60 Hz for 3 phase motors
10 hp at 200/208 V AC 50/60 Hz for 3 phase motors
3 hp at 115 V AC 50/60 Hz for 1 phase motors
30 hp at 460/480 V AC 50/60 Hz for 3 phase motors
Compatibility codeLC1D
Pole contact composition3 NO
Protective coverWith

Read More
