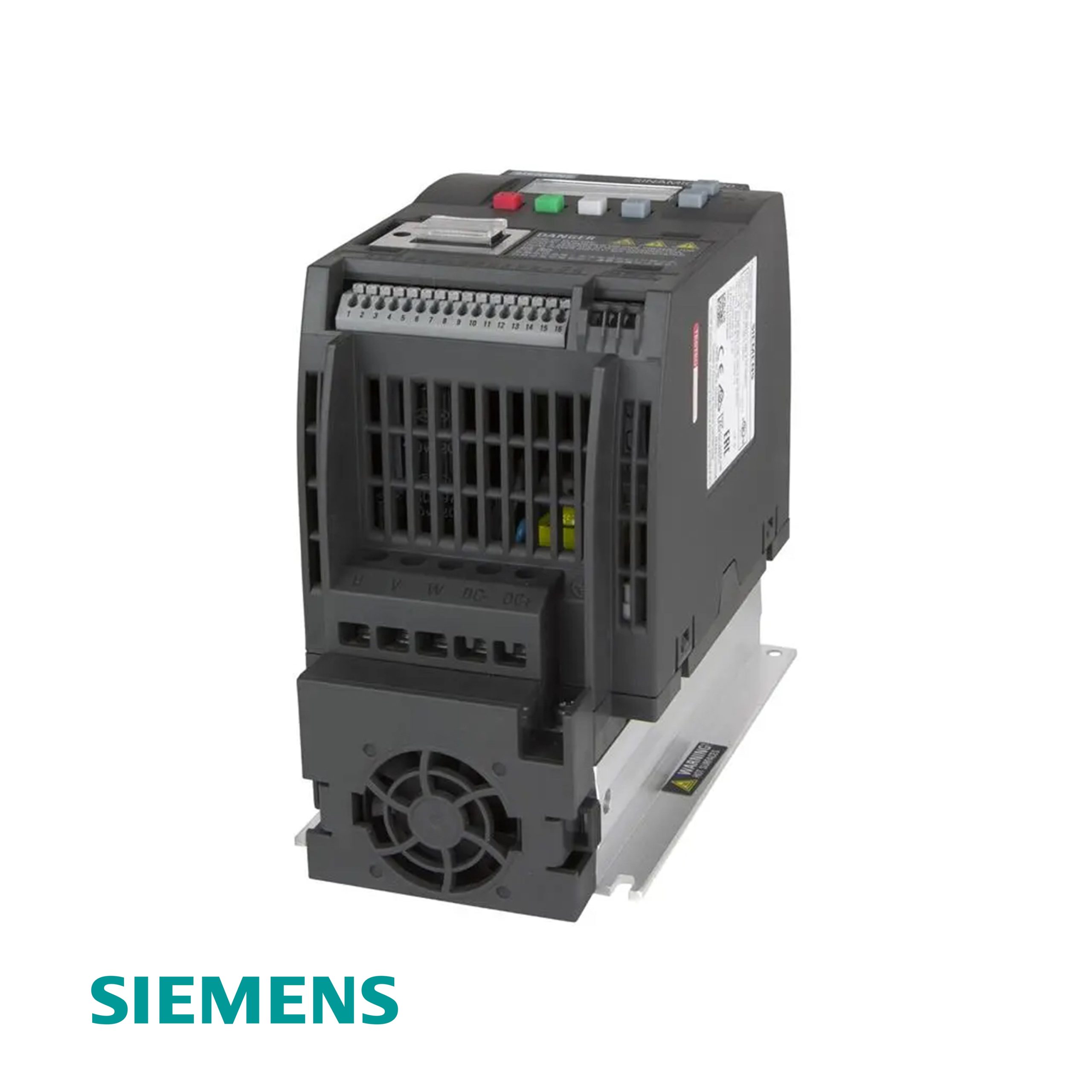

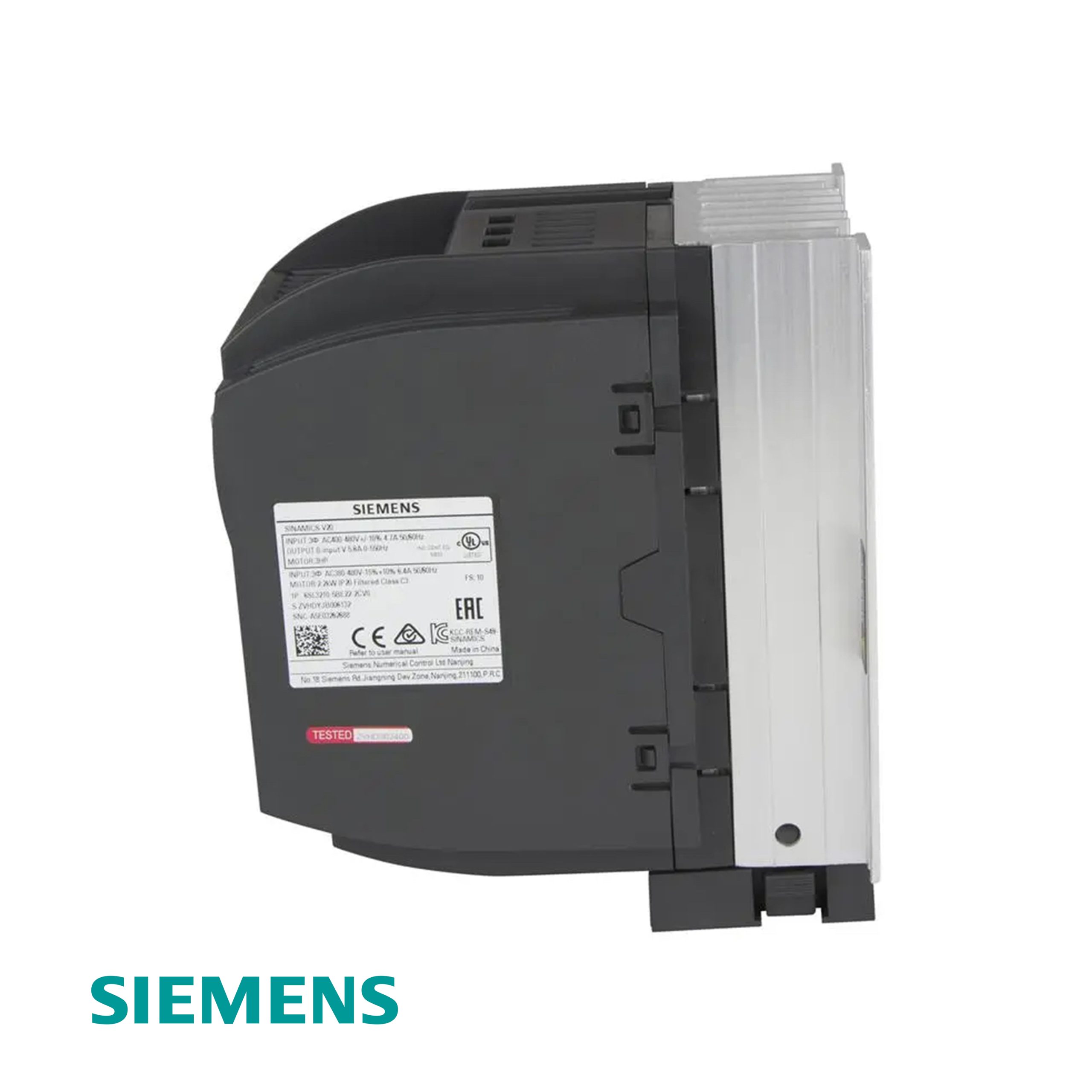

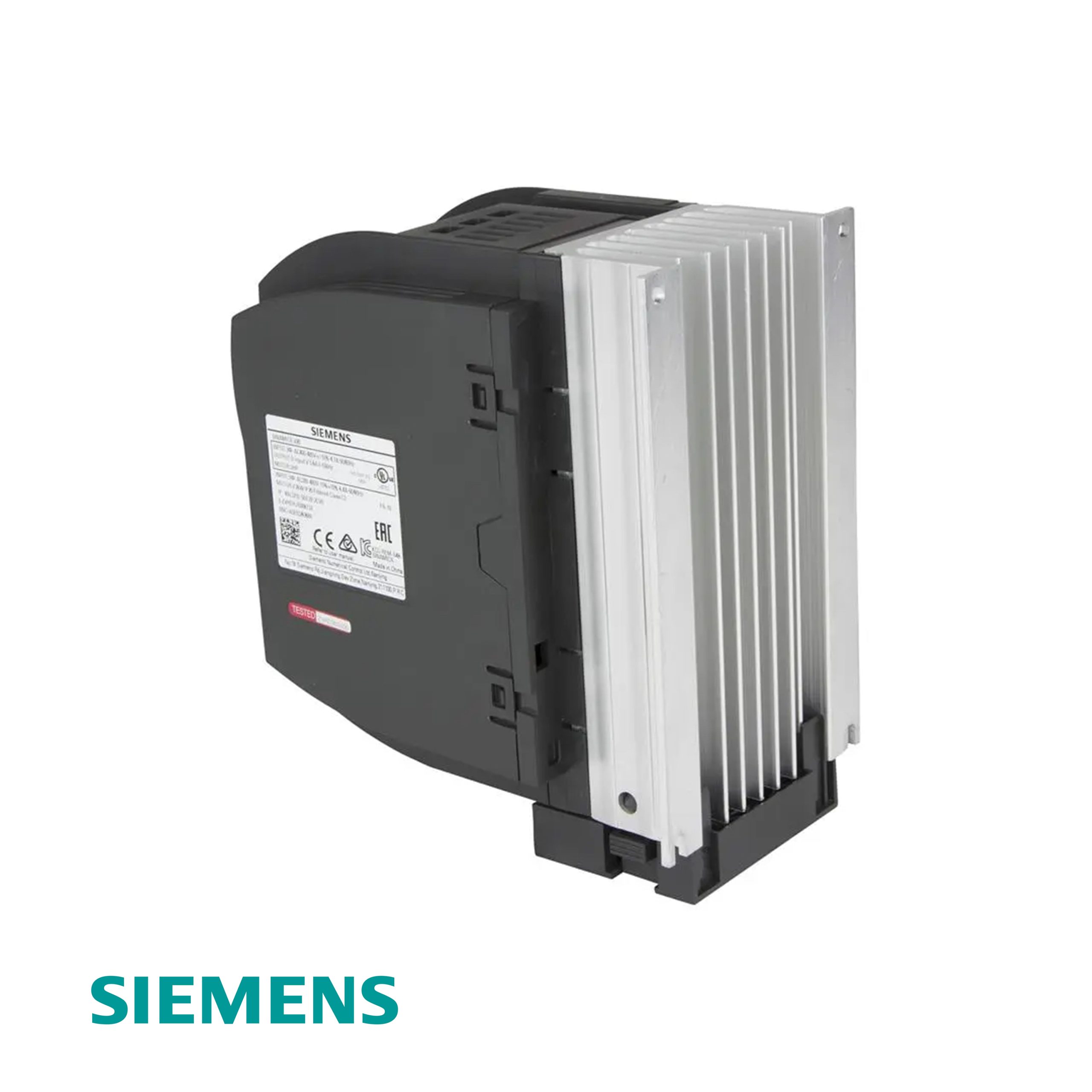

Siemens SINAMICS V20 6SL3210-5BE22-2CV1 Frequency Converter 2.2kW 380-480V 3-Phase 5.6A

Product Description

The Siemens 6SL3210-5BE22-2CV1 is a SINAMICS V20 basic frequency converter designed for reliable variable-speed control of three-phase AC motors in industrial applications. Rated at 2.2 kW with a 5.6 A output current, it operates from a 380 to 480 V three-phase AC supply. The drive provides an output frequency range of 0 to 550 Hz and supports 150% high-overload operation for 60 seconds. Integrated USS and Modbus RTU communication, digital and analog I/O, an onboard basic operator panel, an EMC filter, and an integrated braking chopper simplify commissioning and motor-control integration.

Standard Features

• 2.2 kW rated power: Designed for three-phase motor applications requiring compact variable-speed control.
• 380–480 V three-phase input: Suitable for common industrial three-phase power systems.
• 5.6 A rated output current: Provides reliable motor control at the 400 V IEC rating.
• 150% high-overload capability: Supports 150% rated output current for up to 60 seconds.
• USS / Modbus RTU communication: Enables integration with PLCs and industrial automation systems.
• Integrated braking chopper: Supports connection of braking components for improved deceleration performance.
• Built-in I/O and operator panel: Provides 4 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output, and local parameter control.
