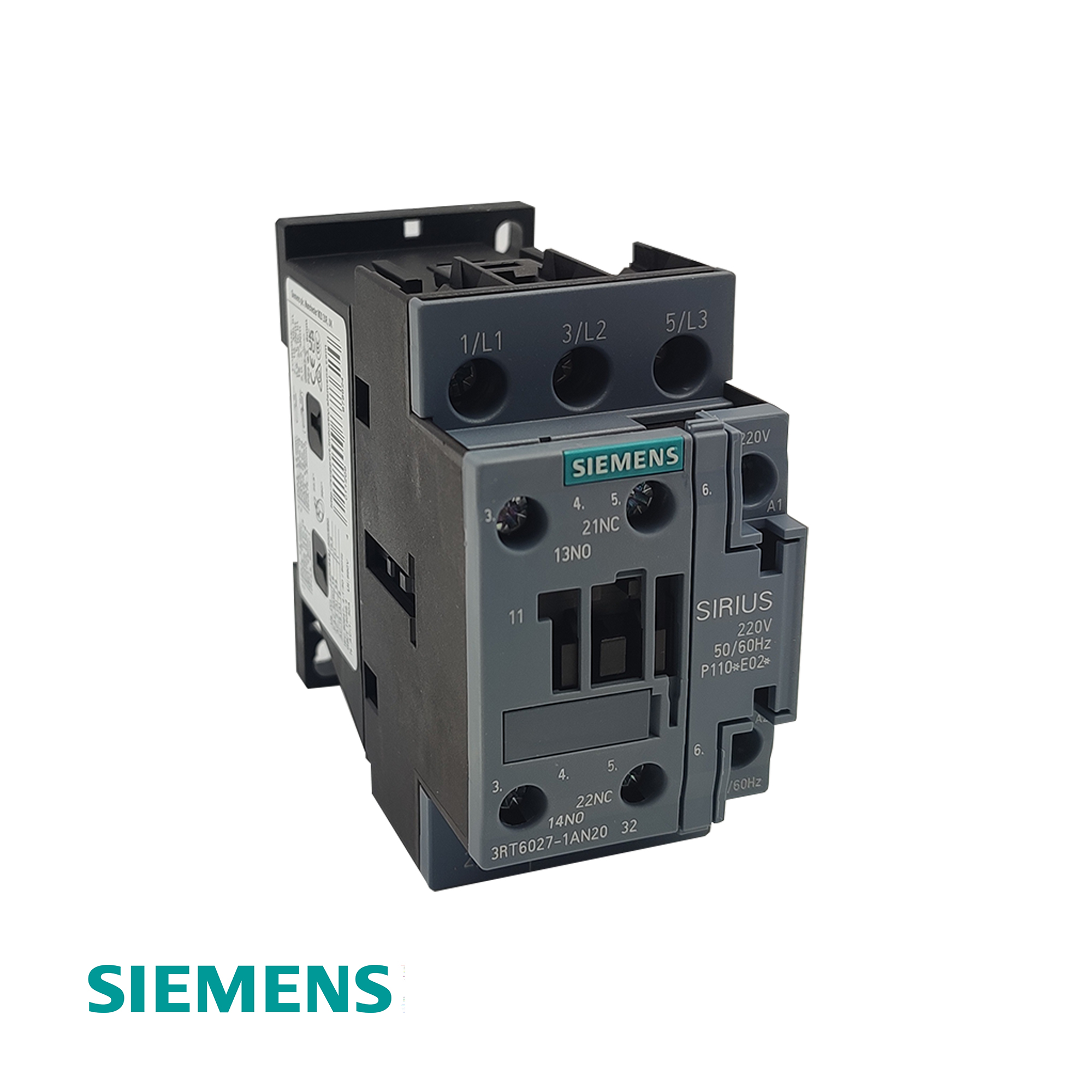

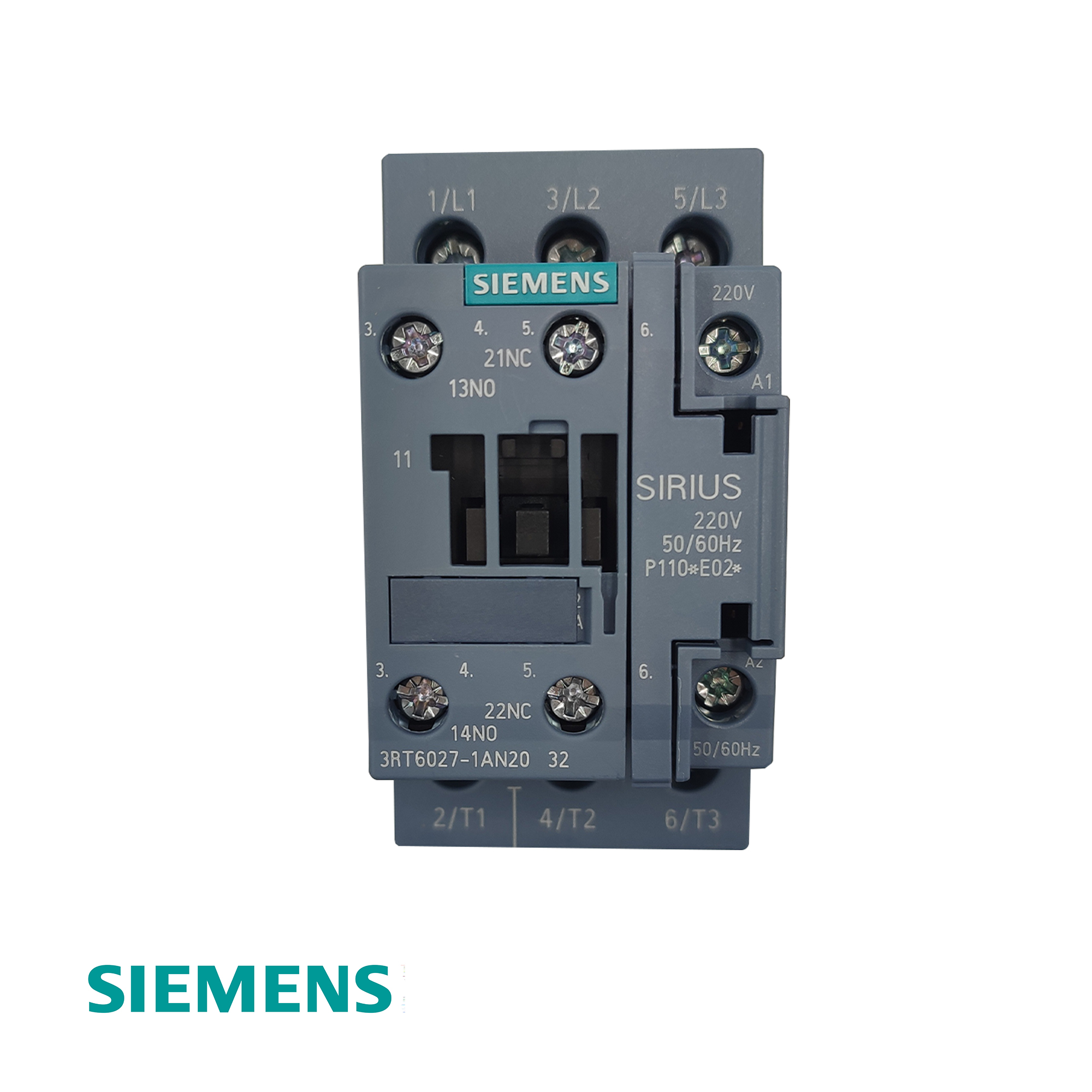

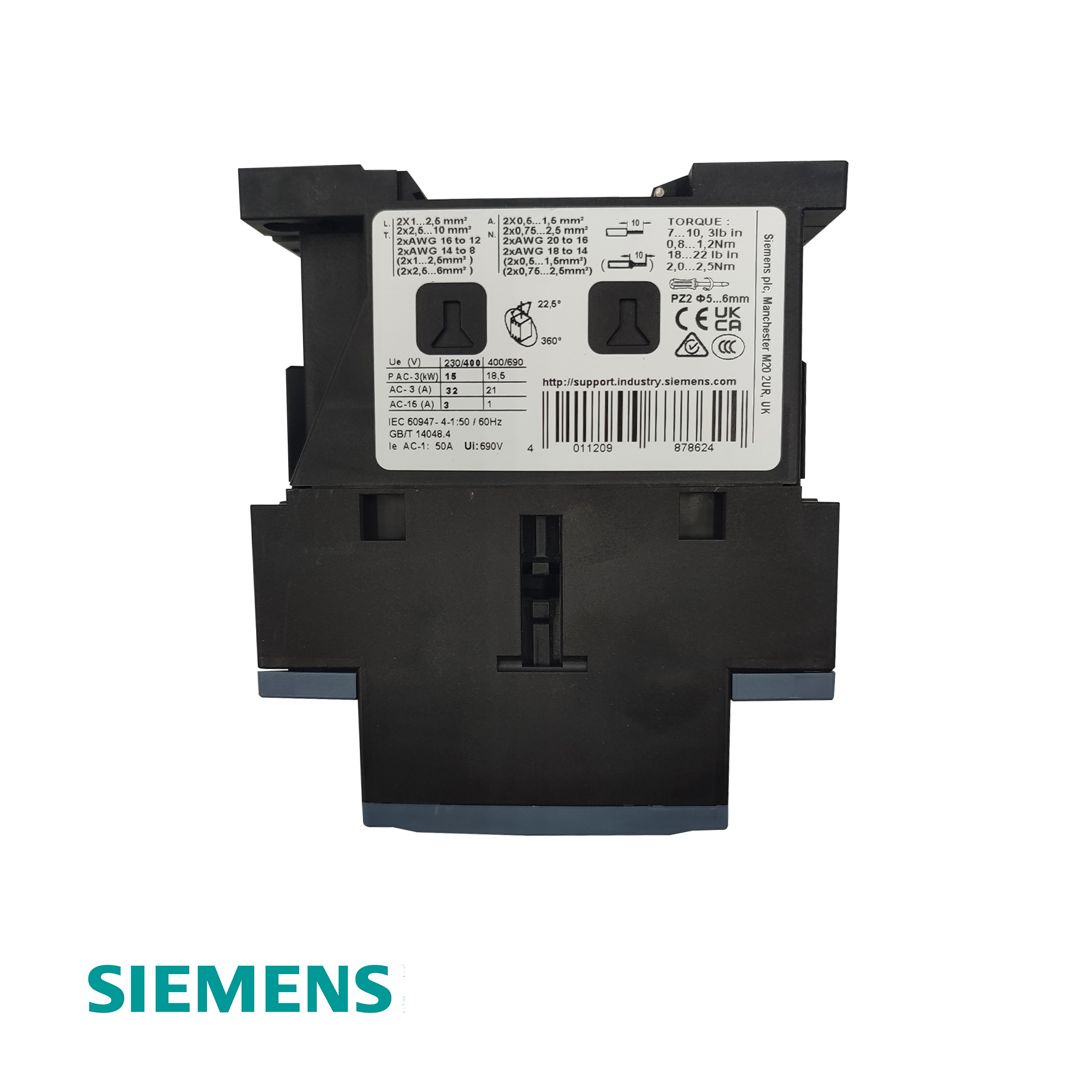

Siemens 3RT6027-1AN20 SIRIUS 3-Pole Power Contactor 32A AC-3 15kW 400V 220V AC Coil 1NO+1NC Screw Terminal S0

Manufacturer: Siemens
Model: 3RT6027-1AN20
Type: SIRIUS 3RT6 Power Contactor
Rated Current: 32 A (AC-3 @ 400 V)
Motor Power: 15 kW @ 400 V AC
Coil Voltage: 220 V AC, 50/60 Hz
Auxiliary Contacts: 1 NO + 1 NC
Size: S0

Product Description

The Siemens 3RT6027-1AN20 is a size S0 power contactor from the SIRIUS 3RT6 series, designed for reliable switching of motors and power circuits in industrial control applications. It is rated 32 A in AC-3/AC-3e category at 400 V AC, corresponding to a motor power of 15 kW at 400 V and 18.5 kW at 690 V. The contactor features a 220 V AC 50/60 Hz control coil and provides one normally open (NO) and one normally closed (NC) auxiliary contact. The main circuit uses screw terminals with a conductor cross-section from 1 to 10 mm². With a mechanical service life of 10 million operating cycles, 690 V rated insulation voltage, and 6 kV rated impulse withstand voltage, it is suitable for pumps, fans, compressors, and general-purpose motor control in industrial automation and building systems.

Standard Features

  • 32 A / 15 kW AC-3 Rating: Rated operational current of 32 A in AC-3/AC-3e category at 400 V AC, suitable for direct-on-line starting of three-phase motors up to 15 kW at 400 V and 18.5 kW at 690 V.
  • 220 V AC 50/60 Hz Coil: Standard AC control coil voltage for integration with common industrial control circuits, with an operating range of 0.8 to 1.1 × Us.
  • 1 NO + 1 NC Auxiliary Contacts: Built-in auxiliary contacts provide integrated signal contacts for status feedback and control interlocking; mirror contact per IEC 60947-4-1.
  • Compact S0 Size: Space-saving 45 mm width design with screw terminals, ideal for control panels with limited mounting space.
  • High Insulation and Impulse Withstand: Rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV ensure dependable performance in industrial power circuits.
  • Extended Mechanical Durability: Mechanical service life of 10 million operating cycles ensures long-term reliability in frequent switching applications.
  • Snap-On DIN Rail Mounting: Compatible with screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 for quick installation.

Technical Specifications

ParameterValue
ManufacturerSiemens
Model3RT6027-1AN20
SeriesSIRIUS 3RT6
Product TypePower Contactor
SizeS0
Number of Poles3
Rated Operational Current (AC-3 @ 400 V)32 A
Motor Power (AC-3 @ 400 V)15 kW
Motor Power (AC-3 @ 690 V)18.5 kW
Coil Control Voltage220 V AC, 50/60 Hz
Auxiliary Contacts1 NO + 1 NC
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Connection TypeScrew terminals (1–10 mm²)
MountingScrew and snap-on 35 mm DIN rail (DIN EN 50022)
Dimensions (W × H × D)45 mm × 85 mm × 97 mm
Mechanical Service Life10,000,000 operating cycles
StandardsIEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1
