Schneider Motor circuit breaker GV2ME21

Schneider Motor circuit breaker GV2ME21

Manufacturer: Schneider Electric
Model: GV2ME21 TeSys GV2 Motor Circuit Breaker
Setting Range: 17 … 23 A
Rated Current: 23 A (thermal-magnetic trip)
Breaking Capacity: 50 kA @ 400/415 V (Icu, IEC 60947-2)
Control: Pushbutton control, 3-pole

Get a Quote

Product Description

The Schneider Electric GV2ME21 is the world’s most popular motor circuit breaker for 11–15 kW motors at 400 V — the absolute standard for high-power compact starters. Part of the legendary TeSys GV2 series, it provides Class 10 thermal-magnetic protection, high short-circuit performance, phase-loss sensitivity and manual isolation in a single ultra-compact 45 mm unit. Pushbutton operation and instant DIN-rail mounting make it the perfect all-in-one solution for pumps, fans, compressors, large conveyors, HVAC systems and heavy industrial motors.

Standard Features

  • Perfect for 11–15 kW motors: 17–23 A range covers the most common 400 V motors in this power class worldwide.

  • 50 kA breaking capacity: Excellent short-circuit performance — safe in nearly all industrial networks.

  • Pushbutton manual control: Direct ON/OFF + clear trip indication — no separate contactor required for basic DOL.

  • Phase failure protection: Built-in differential thermal trip automatically protects against single-phasing.

  • Full add-on compatibility: Accepts all GV2/GV3 auxiliary contacts, under-voltage/shunt trips, rotary handles.

  • Global certifications: UL 60947-4-1 Type E, CSA, CE, CCC, Marine — accepted everywhere.

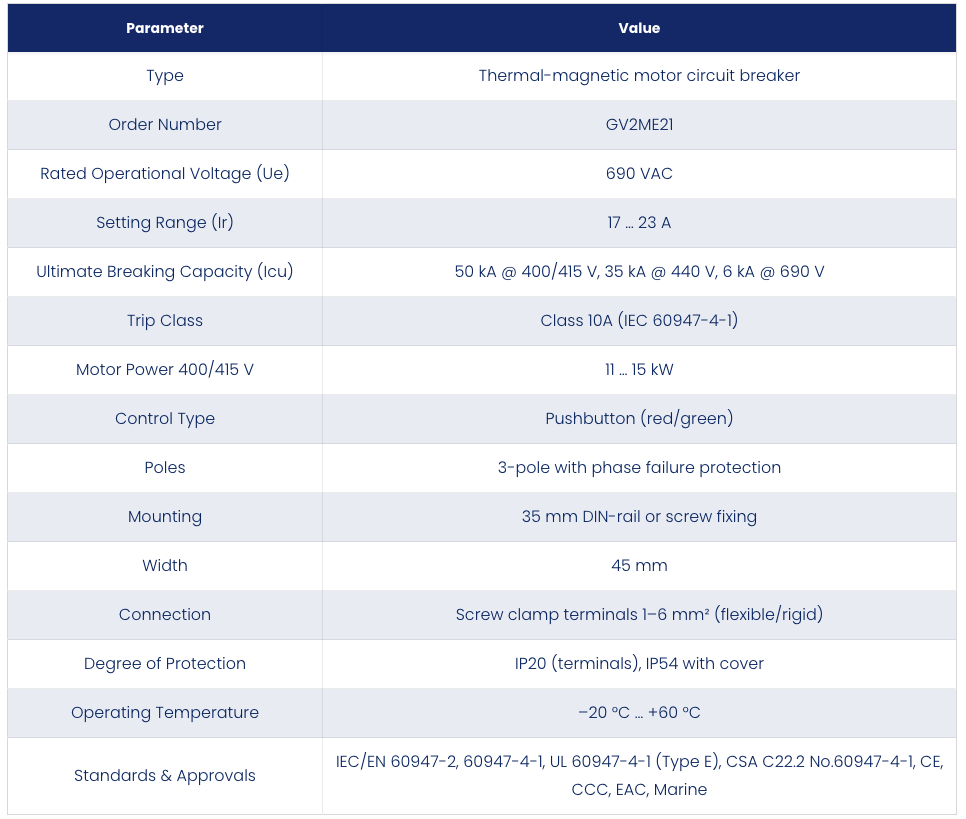

Technical Specifications

ParameterValue
TypeThermal-magnetic motor circuit breaker
Order NumberGV2ME21
Rated Operational Voltage (Ue)690 VAC
Setting Range (Ir)17 … 23 A
Ultimate Breaking Capacity (Icu)50 kA @ 400/415 V, 35 kA @ 440 V, 6 kA @ 690 V
Trip ClassClass 10A (IEC 60947-4-1)
Motor Power 400/415 V11 … 15 kW
Control TypePushbutton (red/green)
Poles3-pole with phase failure protection
Mounting35 mm DIN-rail or screw fixing
Width45 mm
ConnectionScrew clamp terminals 1–6 mm² (flexible/rigid)
Degree of ProtectionIP20 (terminals), IP54 with cover
Operating Temperature–20 °C … +60 °C
Standards & ApprovalsIEC/EN 60947-2, 60947-4-1, UL 60947-4-1 (Type E), CSA C22.2 No.60947-4-1, CE, CCC, EAC, Marine
