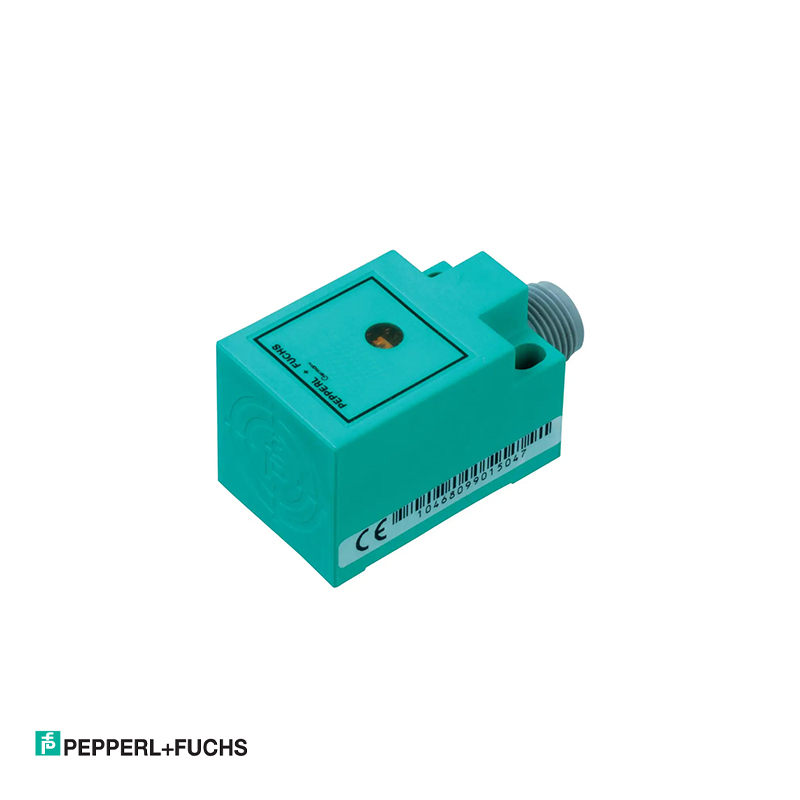

Pepperl+Fuchs NBN10-F10-E2-V1 Inductive sensor
Pepperl+Fuchs NBN10-F10-E2-V1 Inductive sensor - Image 2

Pepperl+Fuchs NBN10-F10-E2-V1 Inductive sensor

anufacturer: Pepperl+Fuchs
Model: NBN10-F10-E2-V1 Inductive Sensor
Sensing Distance: 10 mm (non-flush)
Supply Voltage: 10–30 VDC
Protection Rating: IP67
Application: Cost-effective position detection, conveyor systems, packaging machines

Get a Quote

Product Description

The Pepperl+Fuchs NBN10-F10-E2-V1 is the economical 40 × 40 mm block-style inductive sensor with 10 mm non-flush sensing range and M12 quick-disconnect. Featuring a bright yellow LED, high EMC immunity, and classic P+F reliability at a budget price, it is the perfect choice for standard applications where maximum sensing range is needed but extreme environmental conditions are not present.

Standard Features

  • Best price/performance ratio: Full 10 mm non-flush range in the proven 40 × 40 mm Varikont housing – unbeatable value.

  • Clear visibility: Large yellow LED on the connector side – easy status check even from a distance.

  • Quick installation: Rotatable M12 connector and standard mounting holes for fast retrofits.

  • Proven durability: PBT housing, –25°C to +70°C, and high vibration resistance – millions installed worldwide.

  • Universal compatibility: Standard PNP NO output works with every PLC and controller brand.

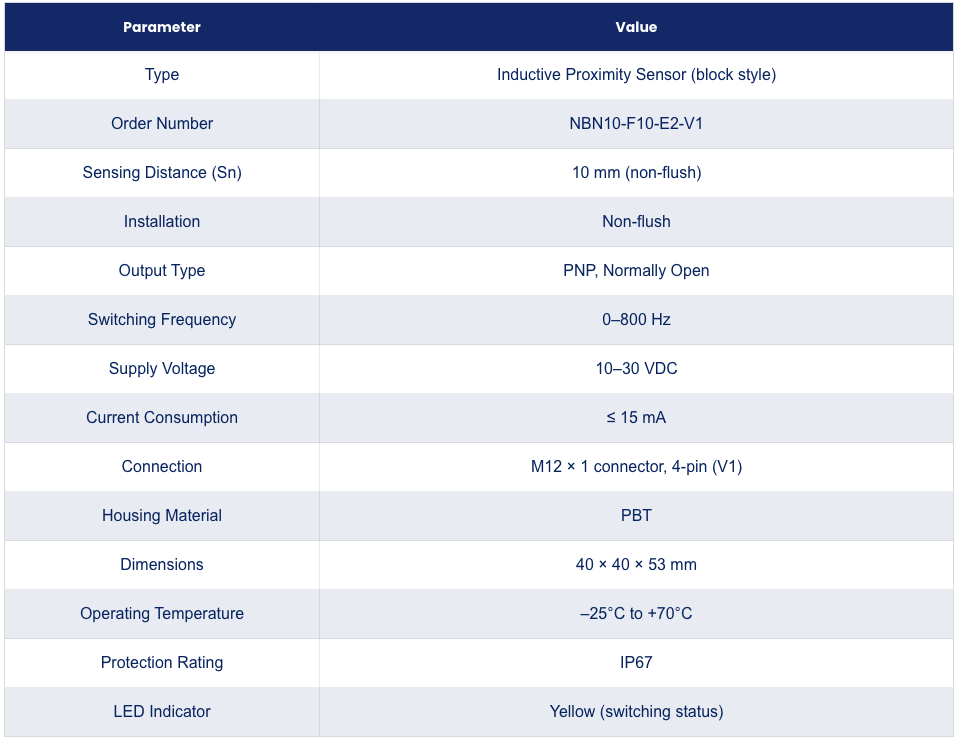

Technical Specifications

ParameterValue
TypeInductive Proximity Sensor (block style)
Order NumberNBN10-F10-E2-V1
Sensing Distance (Sn)10 mm (non-flush)
InstallationNon-flush
Output TypePNP, Normally Open
Switching Frequency0–800 Hz
Supply Voltage10–30 VDC
Current Consumption≤ 15 mA
ConnectionM12 × 1 connector, 4-pin (V1)
Housing MaterialPBT
Dimensions40 × 40 × 53 mm
Operating Temperature–25°C to +70°C
Protection RatingIP67
LED IndicatorYellow (switching status)
