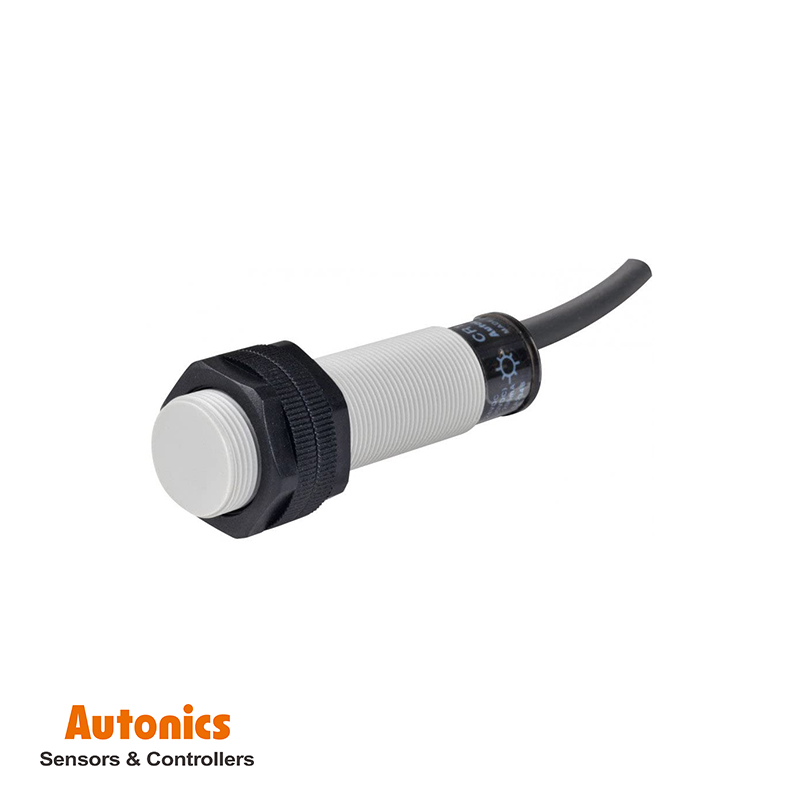

Autonics CR Capacitive Proximity Sensors
Autonics CR Capacitive Proximity Sensors - Image 2
Autonics CR Capacitive Proximity Sensors - Image 3

Autonics CR Capacitive Proximity Sensors

Model: Autonics
Rated Current: Max. 200 mA (DC types)
Operating Voltage: DC 10–30V (DC types),  AC 100–240V (AC types)
Response Frequency: 50 Hz (DC types), 20 Hz (AC types)
Sensing Distance: Up to 15 mm
Manufacture: Autonics

Get a Quote

Product Description

The CR series cylindrical capacitive proximity sensors are capable of detecting any material with dielectric different from air. The sensors can detect conductive and non-conductive materials including metal, iron, stone, plastic, water, and grain.

Standard Features

The built-in sensitivity adjuster allows easy configuration of detecting distance, making it ideal for application in various environmental settings.

  • Detects a wide range of materials

  • Adjustable sensitivity for precise detection

  • Red LED operation indicator for easy status monitoring

  • Built-in surge protection and reverse polarity protection (DC types)

  • Long life cycle with high reliability

  • Suitable for level detection and position control applications

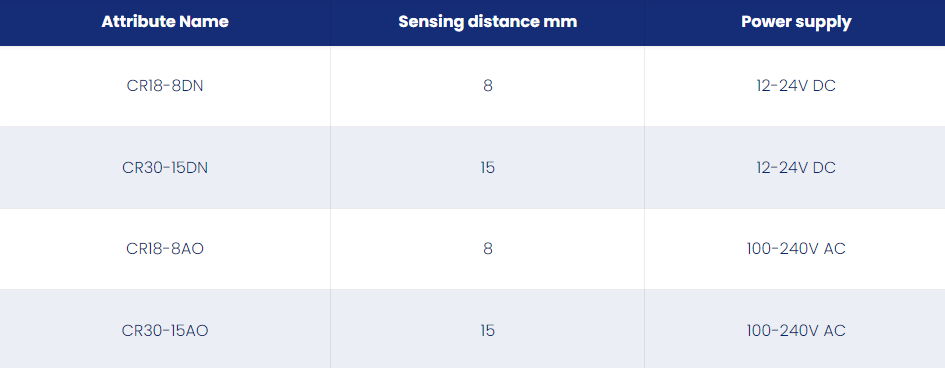

Technical Specifications

Attribute NameSensing distance mmPower supply
CR18-8DN812-24V DC
CR30-15DN1512-24V DC
CR18-8AO8100-240V AC
CR30-15AO15100-240V AC
