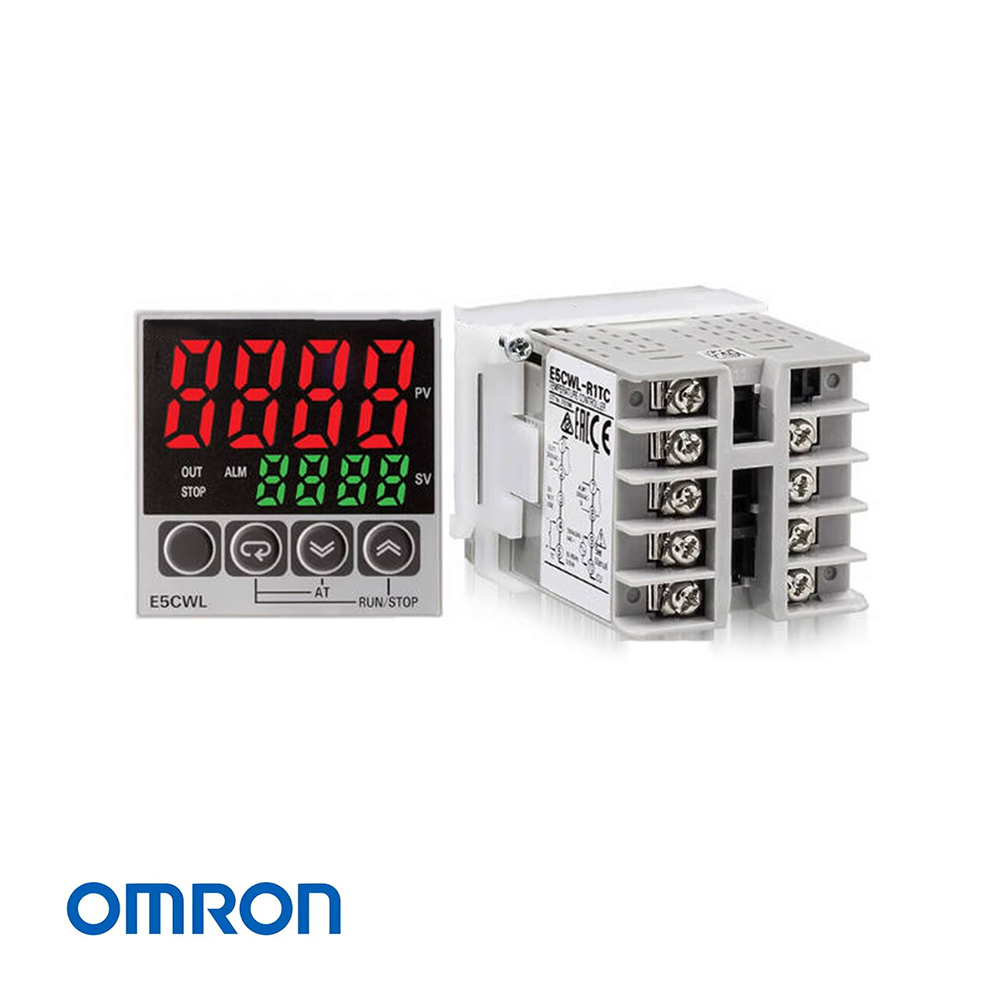

Omron E5CWL-Q1TC Digital Temperature Controller
Omron E5CWL-Q1TC Digital Temperature Controller - Image 2

Omron E5CWL-Q1TC Digital Temperature Controller

Manufacturer: Omron
Model: E5CWL-Q1TC
Type: Digital temperature controller (1/16 DIN, 48 × 48 mm)
Input: Thermocouple (K, J, T, R, S)
Control Output: Voltage output (for driving SSR, 12 VDC +25%/-15%, max 21 mA)
Alarm Output: 1 relay output (250 VAC, 1 A resistive load)
Power Supply: 100–240 VAC 50/60 Hz
Display: Dual display: PV 16.2 mm character height, SV 10 mm (red/green LED)

Get a Quote

Product Description

The Omron E5CWL-Q1TC is a compact, easy-to-use digital temperature controller from the E5CWL series, designed for simple temperature control applications in industrial ovens, packaging machines, food processing, and laboratory equipment. It features thermocouple input, voltage output for SSR drive (precise time-proportional control), one alarm relay, PID auto-tuning, and a bright dual LED display with large characters for easy reading. The shallow depth (60 mm behind panel) and fewer parameters make setup quick and intuitive. This model is ideal for cost-sensitive projects requiring stable ON/OFF or PID control with SSR output.

Standard Features

  • Thermocouple input: Supports K, J, T, R, S types — common for high-temperature applications.

  • Voltage output for SSR: Drives solid-state relays directly — noise-free, precise control with short-circuit protection.

  • Alarm relay output: 1 A resistive load — for high/low limit alarms or deviation signaling.

  • Dual display & large characters: PV 16.2 mm height — clear visibility even from a distance.

  • Shallow depth 60 mm: Saves cabinet space — fits in tight panels.

  • Global approvals: CE, UL, CSA — compliant for industrial and international use.

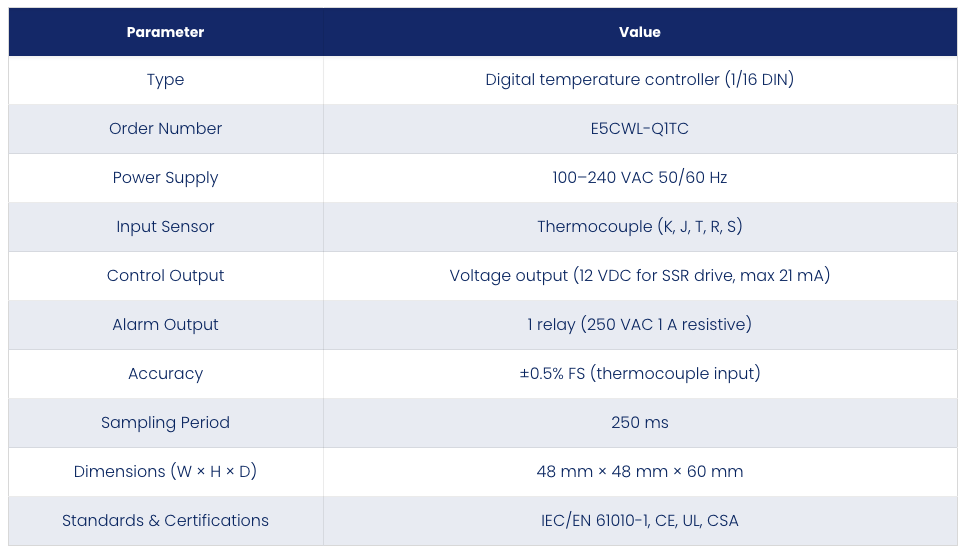

Technical Specifications

ParameterValue
TypeDigital temperature controller (1/16 DIN)
Order NumberE5CWL-Q1TC
Power Supply100–240 VAC 50/60 Hz
Input SensorThermocouple (K, J, T, R, S)
Control OutputVoltage output (12 VDC for SSR drive, max 21 mA)
Alarm Output1 relay (250 VAC 1 A resistive)
Accuracy±0.5% FS (thermocouple input)
Sampling Period250 ms
Dimensions (W × H × D)48 mm × 48 mm × 60 mm
Standards & CertificationsIEC/EN 61010-1, CE, UL, CSA
