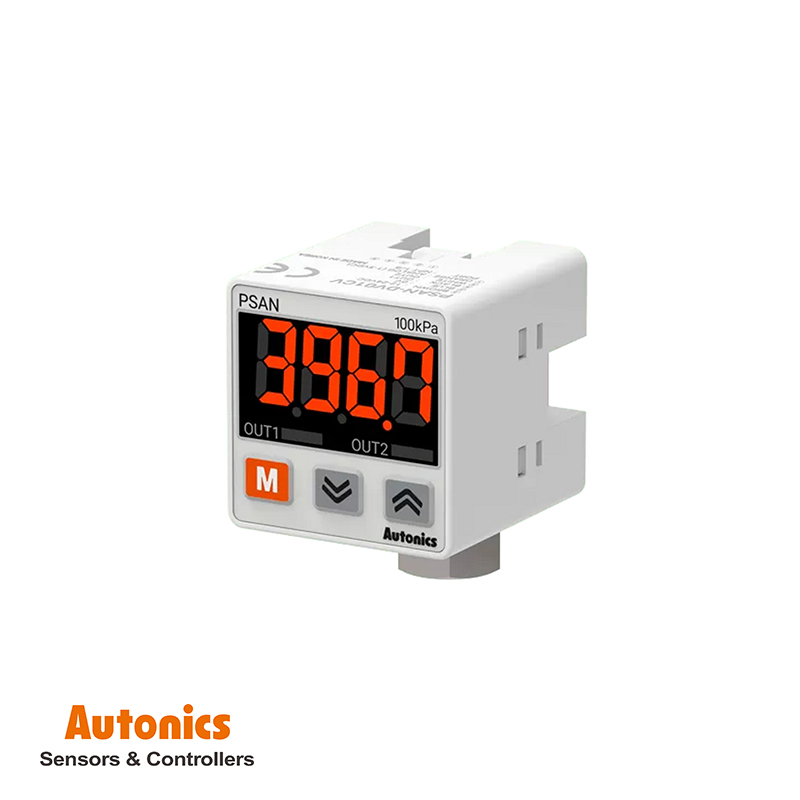

Autonics PSAN Pressure Sensors
Autonics PSAN Pressure Sensors - Image 2
Autonics PSAN Pressure Sensors - Image 3

Autonics PSAN Pressure Sensors

Rated Current Consumption: Max. 50 mA , Max. 75 mA
Operating Voltage: 12–24 V DC
Response Time: 2.5 ms, 5 ms, 100 ms, 500 ms, 1000 ms
Humidity Range: 30 to 80% RH
Accuracy: ±0.5% F.S. (0–50°C), ±1% F.S. (-10–0°C)
Manufacture: Autonics

Get a Quote

Product Description

With functionalities like auto shift, zero-point adjustment, and peak value monitoring, the PSAN Series ensures accurate readings and easy maintenance. Their versatility makes them suitable for integration into diverse systems requiring dependable pressure monitoring.

Standard Features

The Autonics PSAN Series digital pressure sensors are designed for precise measurement and control of gas and liquid pressures in industrial settings.

  • Wide measuring range: Pressure measurement of any gas, liquid or oil
  • Auto shift function
  • Hold function: hold current display value or control output
  • Easy wiring: One-touch connector type
  • Multiple functions: Zero-point adjustment function, peak value monitoring function, chattering prevention function

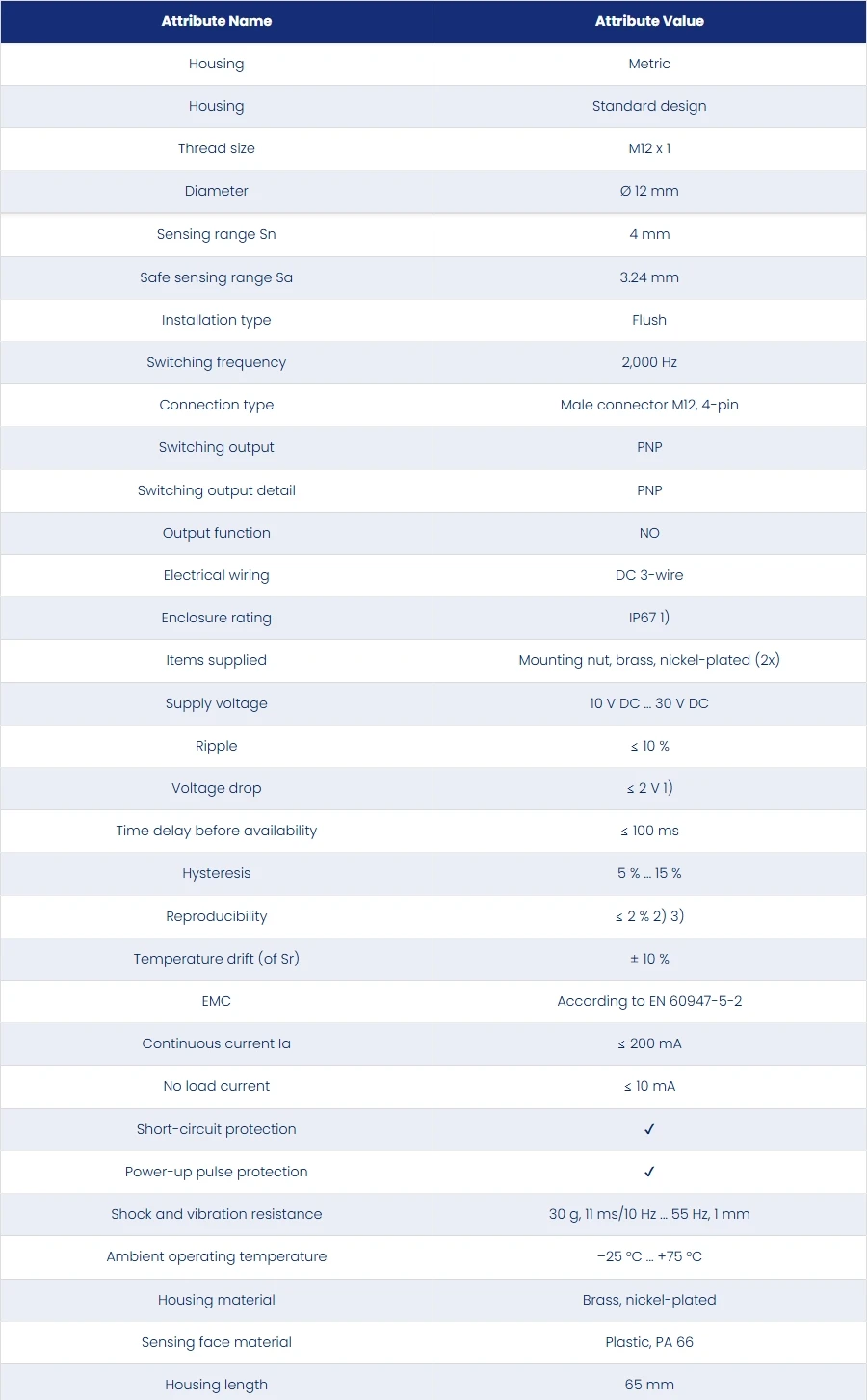

Technical Specifications

Attribute NameAttribute Value
HousingMetric
HousingStandard design

M12 x 1

Ø 12 mm
Sensing range Sn4 mm
Safe sensing range Sa3.24 mm
Installation typeFlush
Switching frequency2,000 Hz
Connection typeMale connector M12, 4-pin
Switching outputPNP
Switching output detailPNP
Output functionNO
Electrical wiringDC 3-wire
Enclosure ratingIP67 1)
Items suppliedMounting nut, brass, nickel-plated (2x)
Supply voltage10 V DC ... 30 V DC
Ripple≤ 10 %
Voltage drop≤ 2 V 1)
Time delay before availability≤ 100 ms
Hysteresis5 % ... 15 %
Reproducibility≤ 2 % 2) 3)
Temperature drift (of Sr)± 10 %
EMCAccording to EN 60947-5-2
Continuous current Ia≤ 200 mA
No load current≤ 10 mA
Short-circuit protection✔
Power-up pulse protection✔
Shock and vibration resistance30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature–25 °C ... +75 °C
Housing materialBrass, nickel-plated
Sensing face materialPlastic, PA 66
Housing length65 mm
Thread length48 mm
Tightening torque, max.≤ 12 Nm
UL File No.NRKH.E181493
