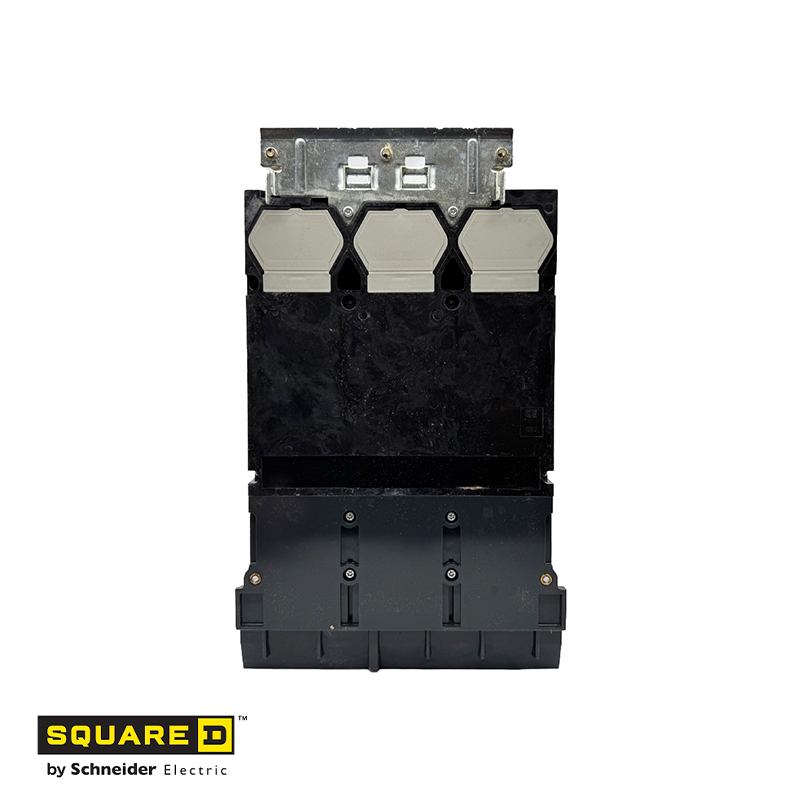

MGA36800 PowerPacT M Thermal-Magnetic Circuit Breaker 800 A 3-Pole 600 VAC 35 kA
MGA36800 PowerPacT M Thermal-Magnetic Circuit Breaker 800 A 3-Pole 600 VAC 35 kA - Image 2
MGA36800 PowerPacT M Thermal-Magnetic Circuit Breaker 800 A 3-Pole 600 VAC 35 kA - Image 3

MGA36800 PowerPacT M Thermal-Magnetic Circuit Breaker 800 A 3-Pole 600 VAC 35 kA

Manufacturer: Schneider Electric
Model: MGA36800
Type: PowerPacT M Molded Case Circuit Breaker
Rated Current: 800 A
Number of Poles: 3-Pole
Rated Operational Voltage: 600 VAC
Interrupting Capacity: 35 kA at 600 VAC
Mounting Type: Plug-in / Fixed
Trip Unit Type: Thermal-Magnetic

Get a Quote

Product Description

The Schneider Electric MGA36800 is a PowerPacT M-frame thermal-magnetic molded case circuit breaker designed to deliver reliable protection for electrical systems in industrial and commercial environments. With a rated current of 800 A and an interrupting capacity of 35 kA at 600 VAC, it ensures safe operation under high-load conditions. This 3-pole circuit breaker combines robust performance with a compact design, providing dependable overload and short-circuit protection. Ideal for use in power distribution panels, switchboards, and control systems, the MGA36800 offers durability, efficiency, and consistent protection for demanding applications.

Standard Features

  • Thermal-Magnetic Protection: Provides combined overload (thermal) and short-circuit (magnetic) protection for reliable operation

  • High Interrupting Capacity: Rated up to 35 kA at 600 VAC for secure protection under high fault conditions

  • Adjustable Trip Settings: Allows fine-tuning of trip thresholds to match system requirements

  • Durable Construction: Heavy-duty molded case design ensures long service life and reliability in demanding environments

  • Easy Installation: Compatible with plug-in or fixed mounting for flexible system integration

  • Clear Status Indication: Includes ON/OFF and trip position indicators for quick visual inspection

  • Compatibility: Integrates with PowerPacT M-frame accessories and trip units for enhanced functionality

  • Application Range: Suitable for industrial, commercial, and infrastructure power distribution systems

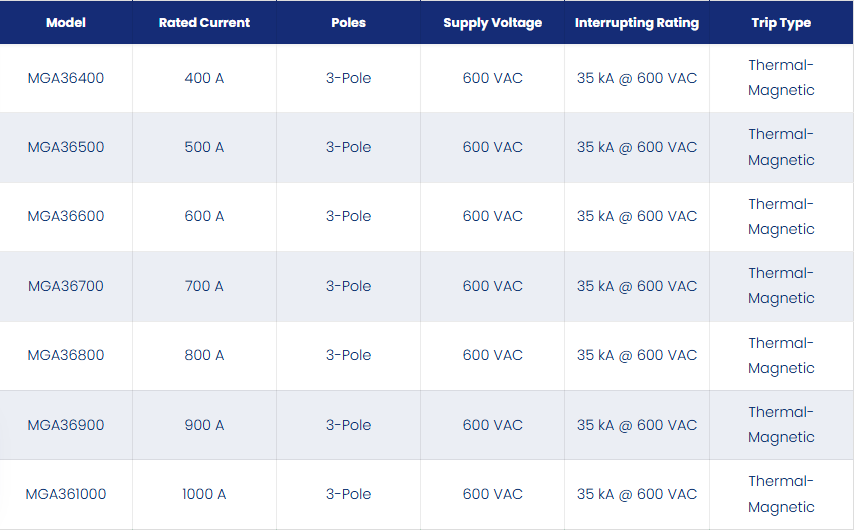

Technical Specifications

ModelRated CurrentPolesSupply VoltageInterrupting RatingTrip Type
MGA36400400 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
MGA36500500 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
MGA36600600 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
MGA36700700 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
MGA36800800 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
MGA36900900 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
MGA3610001000 A3-Pole600 VAC35 kA @ 600 VACThermal-Magnetic
