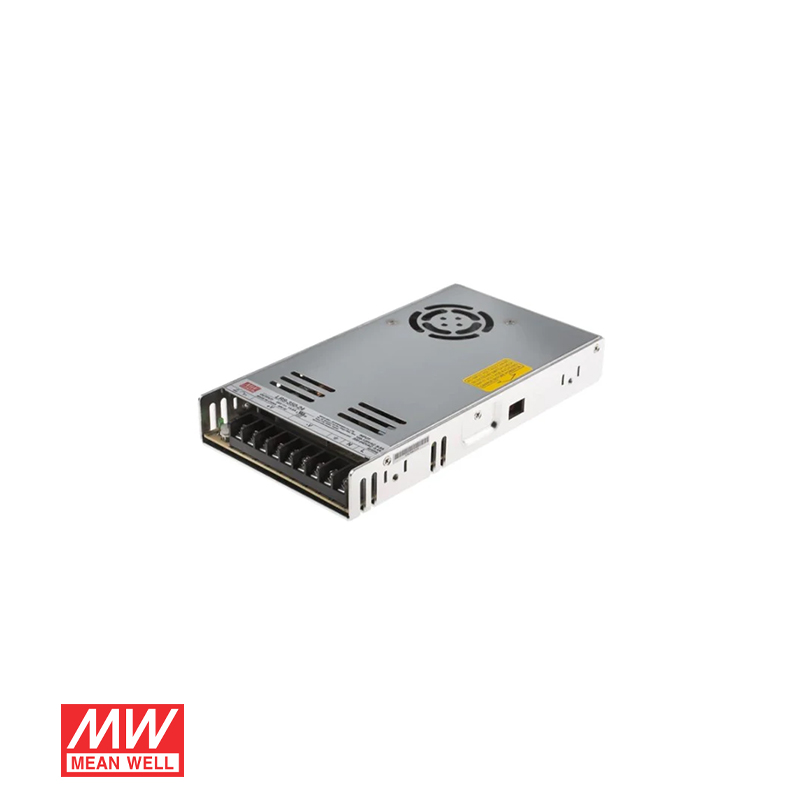

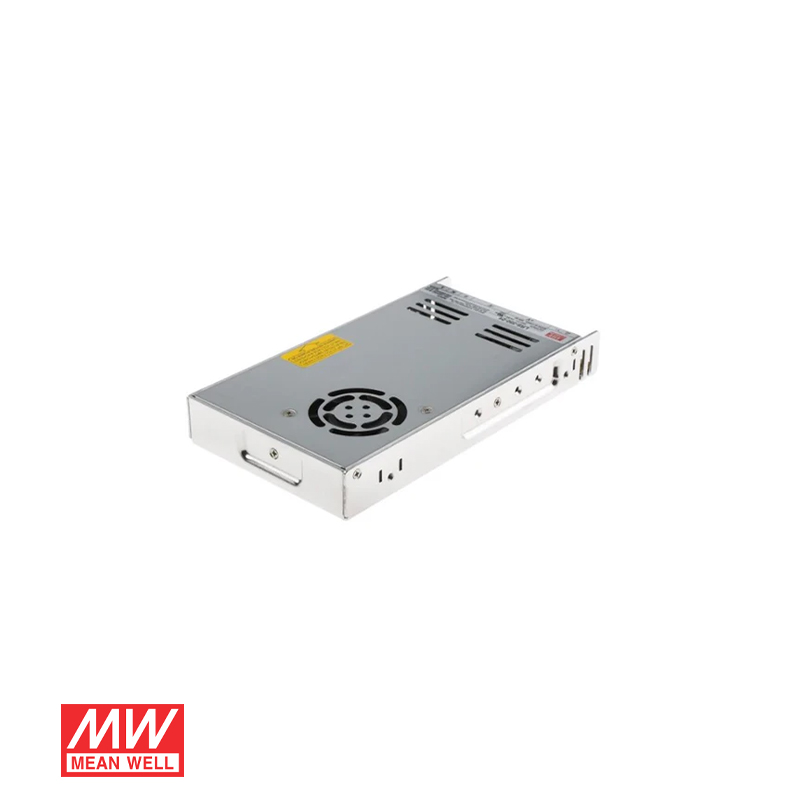

Mean Well LRS Series Power Supply

Manufacturer: Mean Well
Model: LRS Series Power Supply
Power Range: 35W – 350W
Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 36V, 48V DC
Supply Voltage: 85–264V AC or 120–370V DC
Efficiency: Up to 91%
Protection Rating: UL62368-1, EN61558-1/-2-16, EN60335-1 compliant

Description

Product Description

The Mean Well LRS Series Power Supplies are compact, highly efficient, and cost-effective solutions for a wide range of industrial and electronic applications. With output power ranging from 35W to 350W, the LRS series features a low-profile design, universal AC input, high efficiency up to 91%, and reliable protections such as short circuit, overload, overvoltage, and over-temperature. These power supplies are designed for long-term operation with full load capability in harsh environments, making them ideal for factory automation, instrumentation, control systems, and LED applications.

Standard Features

Universal Input: 85–264V AC and 120–370V DC wide input range
High Efficiency: Up to 91% efficiency with low power loss
Compact Design: Ultra-low 30 mm profile for space-saving installation
Protection Functions: Short circuit, overload, overvoltage, and over-temperature protection
Cooling: Natural air convection cooling without fan
Reliability: Withstand 300VAC surge input for 5 seconds
Safety Approval: Certified to UL, CE, CB, and EAC standards
Applications: Ideal for factory automation, test equipment, LED lighting, and security systems

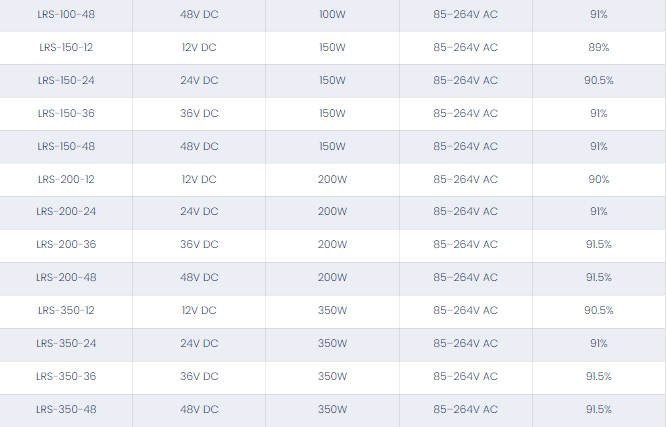

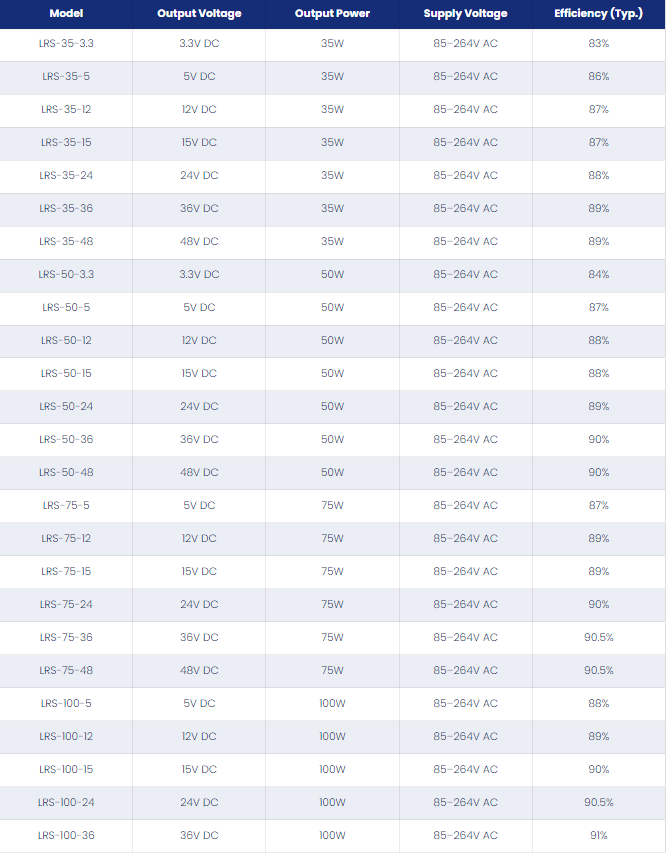

Technical Specifications

Model	Output Voltage	Output Power	Supply Voltage	Efficiency (Typ.)
LRS-35-3.3	3.3V DC	35W	85–264V AC	83%
LRS-35-5	5V DC	35W	85–264V AC	86%
LRS-35-12	12V DC	35W	85–264V AC	87%
LRS-35-15	15V DC	35W	85–264V AC	87%
LRS-35-24	24V DC	35W	85–264V AC	88%
LRS-35-36	36V DC	35W	85–264V AC	89%
LRS-35-48	48V DC	35W	85–264V AC	89%
LRS-50-3.3	3.3V DC	50W	85–264V AC	84%
LRS-50-5	5V DC	50W	85–264V AC	87%
LRS-50-12	12V DC	50W	85–264V AC	88%
LRS-50-15	15V DC	50W	85–264V AC	88%
LRS-50-24	24V DC	50W	85–264V AC	89%
LRS-50-36	36V DC	50W	85–264V AC	90%
LRS-50-48	48V DC	50W	85–264V AC	90%
LRS-75-5	5V DC	75W	85–264V AC	87%
LRS-75-12	12V DC	75W	85–264V AC	89%
LRS-75-15	15V DC	75W	85–264V AC	89%
LRS-75-24	24V DC	75W	85–264V AC	90%
LRS-75-36	36V DC	75W	85–264V AC	90.5%
LRS-75-48	48V DC	75W	85–264V AC	90.5%
LRS-100-5	5V DC	100W	85–264V AC	88%
LRS-100-12	12V DC	100W	85–264V AC	89%
LRS-100-15	15V DC	100W	85–264V AC	90%
LRS-100-24	24V DC	100W	85–264V AC	90.5%
LRS-100-36	36V DC	100W	85–264V AC	91%
LRS-100-48	48V DC	100W	85–264V AC	91%
LRS-150-12	12V DC	150W	85–264V AC	89%
LRS-150-24	24V DC	150W	85–264V AC	90.5%
LRS-150-36	36V DC	150W	85–264V AC	91%
LRS-150-48	48V DC	150W	85–264V AC	91%
LRS-200-12	12V DC	200W	85–264V AC	90%
LRS-200-24	24V DC	200W	85–264V AC	91%
LRS-200-36	36V DC	200W	85–264V AC	91.5%
LRS-200-48	48V DC	200W	85–264V AC	91.5%
LRS-350-12	12V DC	350W	85–264V AC	90.5%
LRS-350-24	24V DC	350W	85–264V AC	91%
LRS-350-36	36V DC	350W	85–264V AC	91.5%
LRS-350-48	48V DC	350W	85–264V AC	91.5%
