LC1D32G7 TeSys D contactor 3P
LC1D32G7 TeSys D contactor 3P - Image 2

LC1D32G7 TeSys D contactor 3P

Manufacturer: Schneider Electric
Model: LC1D32G7 TeSys D Contactor
Rating: 32 A (AC-3), 50 A (AC-1)
Coil Voltage: 120 VAC 50/60 Hz
Poles: 3 NO power poles + 1 NO + 1 NC built-in auxiliary contacts
Application: Motor control up to 15 kW / 400 V (20 HP @ 460–480 V) and resistive/general switching

Get a Quote

Product Description

The Schneider Electric LC1D32G7 is the world's most popular 32 A contactor and the undisputed leader in the 15 kW (400 V) / 20 HP (460–480 V) motor class. Part of the legendary TeSys D series that has sold well over 150 million units worldwide, it maintains the ultra-compact 45 mm width, identical mounting footprint to the 9–25 A models, and comes standard with 1 NO + 1 NC auxiliary contacts. This is the default “go-to” contactor in millions of pumps, fans, compressors, conveyors, HVAC systems, and machine tools across North America and globally.

Standard Features

  • Perfect 15 kW / 20 HP rating: One of the most common three-phase motor sizes worldwide — one contactor covers virtually every standard 380–480 V application in this power range.

  • Zero-redesign upgrade path: 100 % mechanically and electrically interchangeable with LC1D09, D12, D18, D25 — same 45 mm width, same fixing centers, same terminal layout.

  • Built-in auxiliaries included: 1 NO + 1 NC already integrated — eliminates add-on blocks for 95 % of DOL, reversing and star-delta starters.

  • 120 VAC coil (G7): True North-American standard — drop-in replacement for Square D 8910DPA43, Siemens 3RT202x, ABB AF30/AF38, Eaton XTCE032C, and older Allen-Bradley 100-C30/37.

  • Unrivalled availability: Among the single most-stocked contactor models on Earth — instantly available from every distributor and spare-parts warehouse.

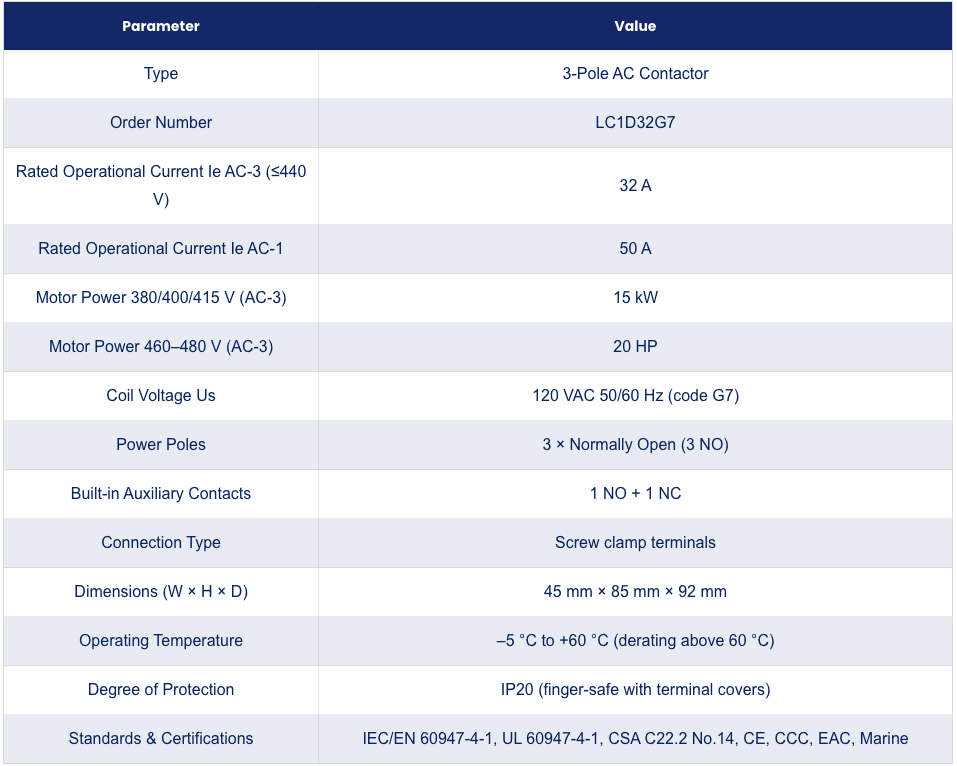

Technical Specifications

ParameterValue
Type3-Pole AC Contactor
Order NumberLC1D32G7
Rated Operational Current Ie AC-3 (≤440 V)32 A
Rated Operational Current Ie AC-150 A
Motor Power 380/400/415 V (AC-3)15 kW
Motor Power 460–480 V (AC-3)20 HP
Coil Voltage Us120 VAC 50/60 Hz (code G7)
Power Poles3 × Normally Open (3 NO)
Built-in Auxiliary Contacts1 NO + 1 NC
Connection TypeScrew clamp terminals
Dimensions (W × H × D)45 mm × 85 mm × 92 mm
Operating Temperature–5 °C to +60 °C (derating above 60 °C)
Degree of ProtectionIP20 (finger-safe with terminal covers)
Standards & CertificationsIEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No.14, CE, CCC, EAC, Marine
