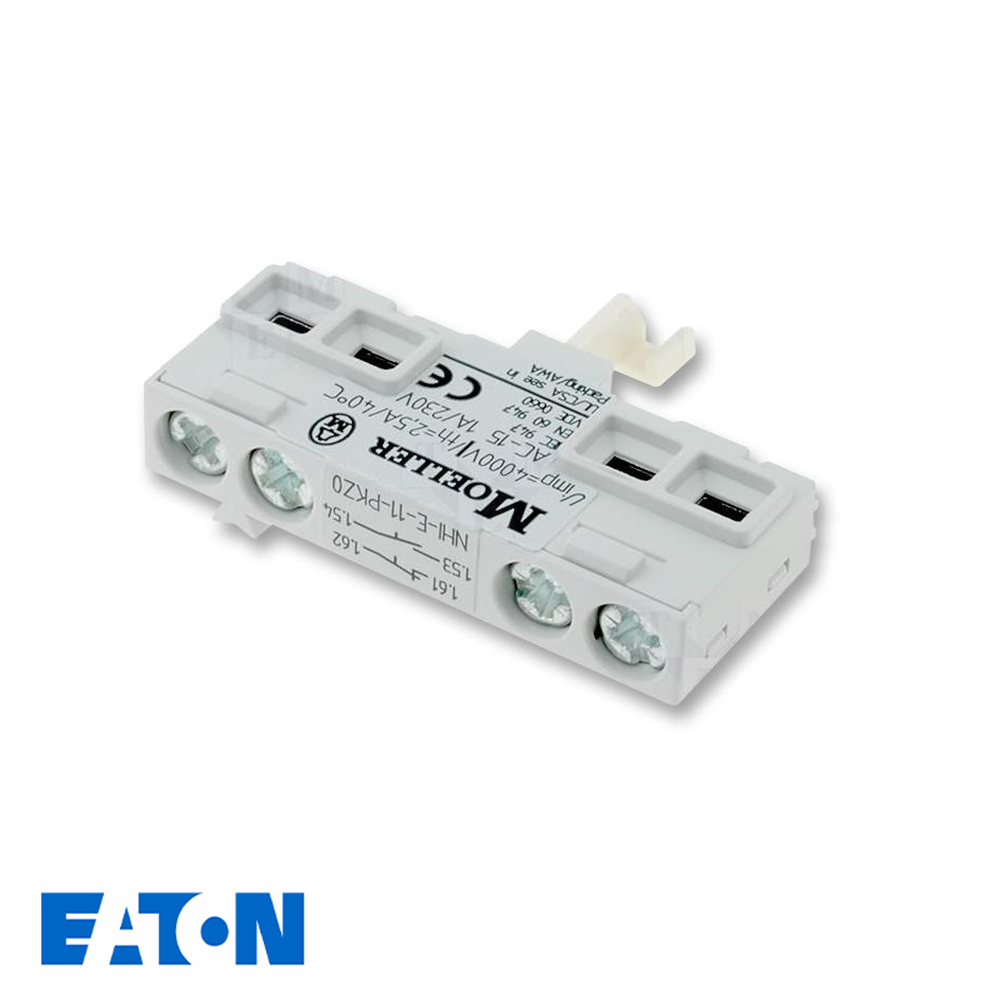

Eaton Moeller NHI-E-11-PKZ0 Auxiliary Contact Block

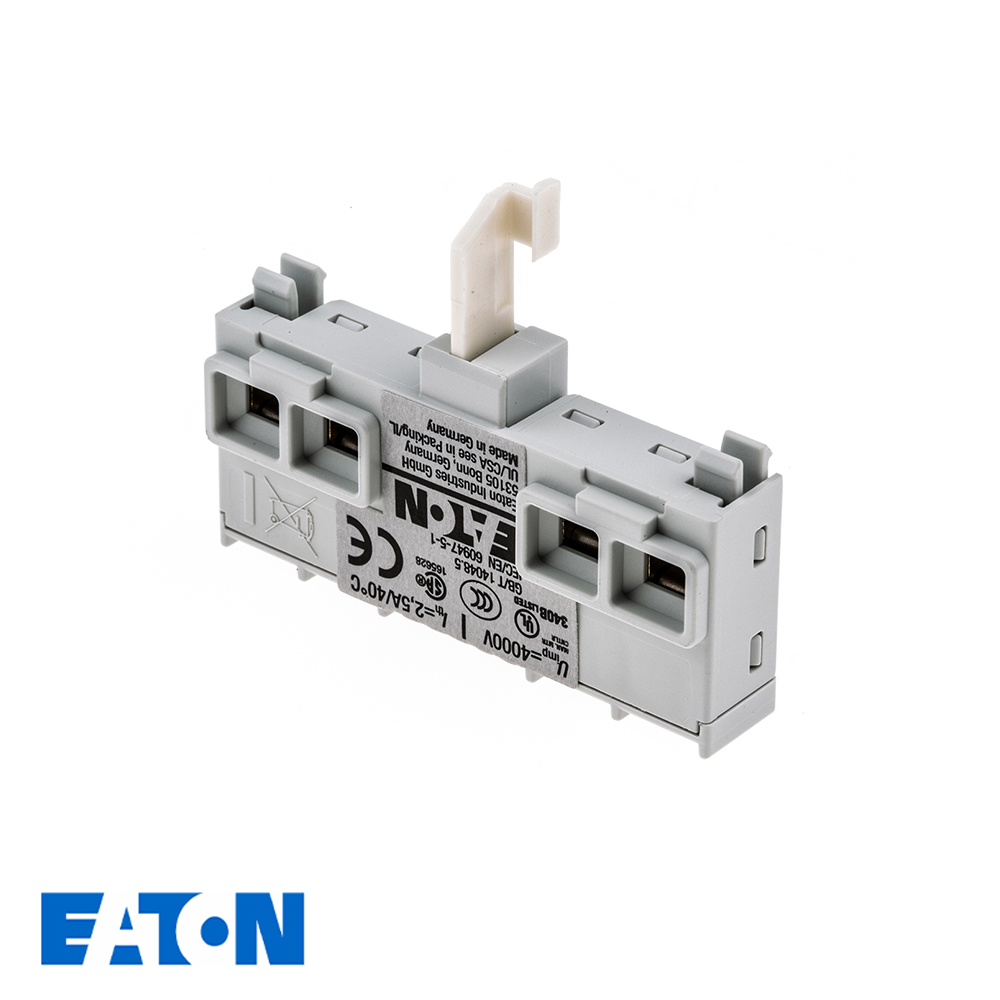

Eaton Moeller NHI-E-11-PKZ0 Auxiliary Contact Block - Image 2

Eaton Moeller NHI-E-11-PKZ0 Auxiliary Contact Block

Manufacturer: Eaton Moeller
Model: NHI-E-11-PKZ0 (Catalog No. 082882)
Type: Standard auxiliary contact block
Contact Configuration: 1 NO + 1 NC (front mount)
Rated Current/Voltage: 10 A @ 230 V AC (AC-15) / 6 A @ 24 V DC (DC-13)
Mounting: Front snap-on to PKZ motor-protective circuit breakers
Application: Signaling, interlocking, and status monitoring for PKZM0, PKZM4, PKZM01 motor protectors

Get a Quote

Product Description

The Eaton Moeller NHI-E-11-PKZ0 (also cross-referenced as XTPAXFA11) is a standard front-mounted auxiliary contact block designed for PKZ series manual motor protectors and circuit breakers. It adds 1 normally open (NO) and 1 normally closed (NC) contact for signaling (e.g., to PLCs, lamps, or alarms), interlocking, or status feedback without increasing the overall width of the device. The screw terminals ensure secure wiring, and it mounts directly to the front of PKZM0, PKZM4, PKZM01, PKZM0-T, and similar motor-protective devices. This accessory is widely used in motor control panels, machine building, and industrial automation for reliable fault indication and control circuit expansion.

Standard Features

  • 1 NO + 1 NC contacts: Versatile for signaling (NO) and safety/interlocking (NC) functions.

  • Front snap-on mounting: Quick installation on PKZ motor protectors — no tools needed, no added width.

  • 10 A AC-15 rating: Suitable for control circuits up to 690 V — reliable for auxiliary signaling and interlocks.

  • Screw terminals: Secure wiring for 0.75–1.5 mm² conductors — vibration-resistant in industrial use.

  • High endurance: Mechanical life 100,000 operations — proven in continuous duty applications.

  • Global approvals: UL 508, CSA C22.2 No.14, IEC 60947-4-1, CE — accepted worldwide.

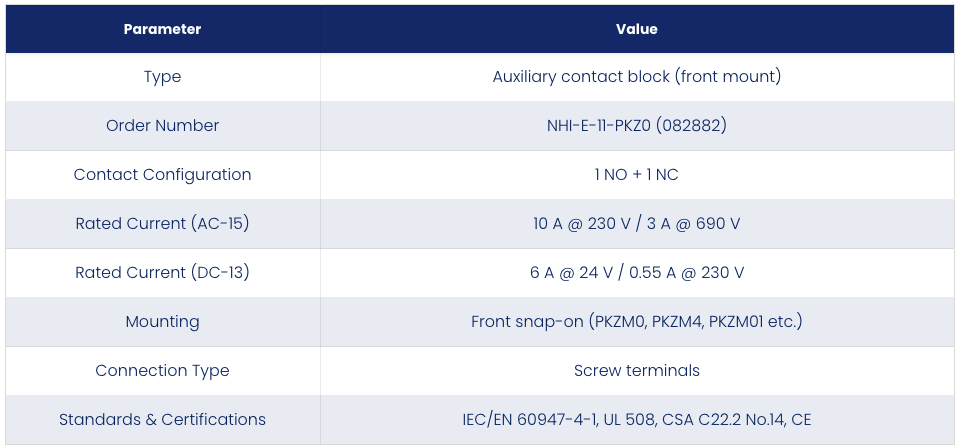

Technical Specifications

ParameterValue
TypeAuxiliary contact block (front mount)
Order NumberNHI-E-11-PKZ0 (082882)
Contact Configuration1 NO + 1 NC
Rated Current (AC-15)10 A @ 230 V / 3 A @ 690 V
Rated Current (DC-13)6 A @ 24 V / 0.55 A @ 230 V
MountingFront snap-on (PKZM0, PKZM4, PKZM01 etc.)
Connection TypeScrew terminals
Standards & CertificationsIEC/EN 60947-4-1, UL 508, CSA C22.2 No.14, CE
