Eaton DILM Series High Performance Motor Protection Contactors
Eaton DILM Series High Performance Motor Protection Contactors - Image 2
Eaton DILM Series High Performance Motor Protection Contactors - Image 3

Eaton DILM Series High Performance Motor Protection Contactors

Manufacturer: Eaton
Model: DILM DC Contactor
AC-3 Current Range: 7 A to 250 A
Rated Operational Voltage (Ue): up to 1000 V AC
Control Voltage: AC/DC 24 V, 48 V, 110 V, 220 V, 230 V, 400 V
Power Range (AC-3, 400 V): 3 kW to 132 kW

Get a Quote

Product Description

Eaton DILM series contactors are high-performance motor control devices widely used in industrial automation, electrical control and power distribution systems. The series covers AC-3 current range from 7A to 250A, suitable for 3kW to 132kW (@400V) motor control, rated working voltage up to 1000V AC, and supports a variety of control voltages (such as 24V, 110V, 230V AC/DC)

Standard Features



  • 3-pole main contact configuration for motor control

  • Wide range of control voltages (AC/DC 24V–400V) available

  • Supports modular expansion with auxiliary contacts and overload relays

  • Flexible mounting: screw or DIN rail

  • Long mechanical and electrical lifespan for reliable operation

  • Compliant with international standards (IEC, UL, CSA)

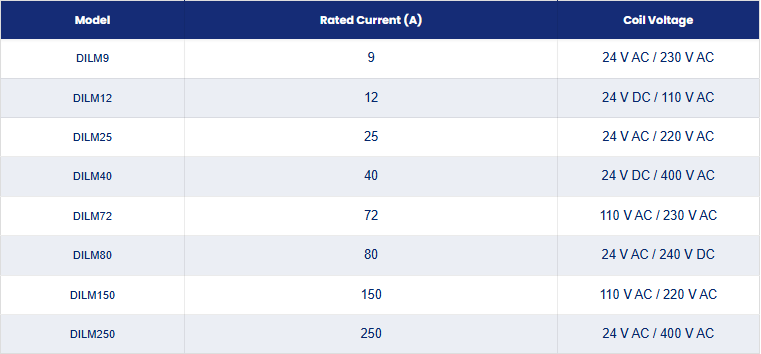

Technical Specifications



ModelRated Current (A)Coil Voltage
DILM9924 V AC / 230 V AC
DILM121224 V DC / 110 V AC
DILM252524 V AC / 220 V AC
DILM404024 V DC / 400 V AC
DILM7272110 V AC / 230 V AC
DILM808024 V AC / 240 V DC
DILM150150110 V AC / 220 V AC
DILM25025024 V AC / 400 V AC
