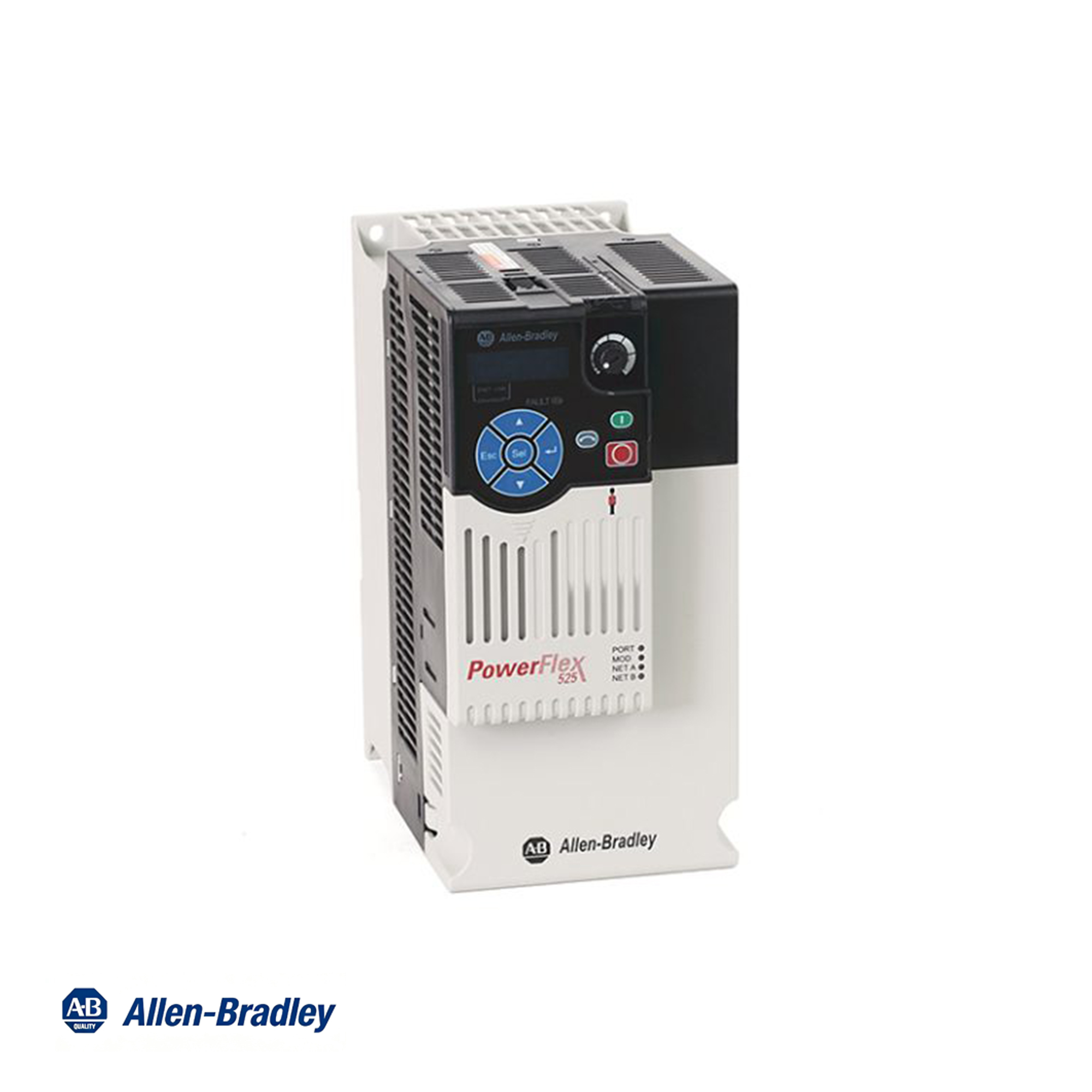

Allen Bradley 25B-D017N114 PowerFlex 525 AC Drive Inverter 7.5kW 10Hp

Product Description

The Allen-Bradley 25B-D017N114 is a versatile and compact PowerFlex 525 adjustable frequency AC drive designed for precise speed control of three-phase electric motors. Operating at an input voltage of 380–480 VAC (3-phase) and delivering an output current of 17 A, this drive provides a power output of 10 HP (7.5 kW) for both normal and heavy-duty applications. Built in a Frame C enclosure rated IP20 NEMA/Open Type, it comes integrated with embedded EtherNet/IP communication, an integral EMC filter, and Safe Torque Off (STO) functionality to enhance operational control, safety, and network connectivity in industrial control systems.

Standard Features

• Power Output: Rated for 10 HP (7.5 kW) under both Normal Duty and Heavy Duty operations.
• Embedded Communications: Built-in EtherNet/IP port and RS485 for seamless networking and remote monitoring.
• Integrated Safety: Features Safe Torque Off (STO) functionality (SIL2 / Cat 3) to protect machinery and personnel.
• Integral EMC Filter: Built-in filter reduces electromagnetic interference without extra mounting hardware.
• Flexible Control Modes: Supports Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed Loop Velocity Vector, and Permanent Magnet motor control.
• Compact Design: Frame C IP20 NEMA / Open Type enclosure with support for panel mounting and zero-stacking.

Technical Specifications
