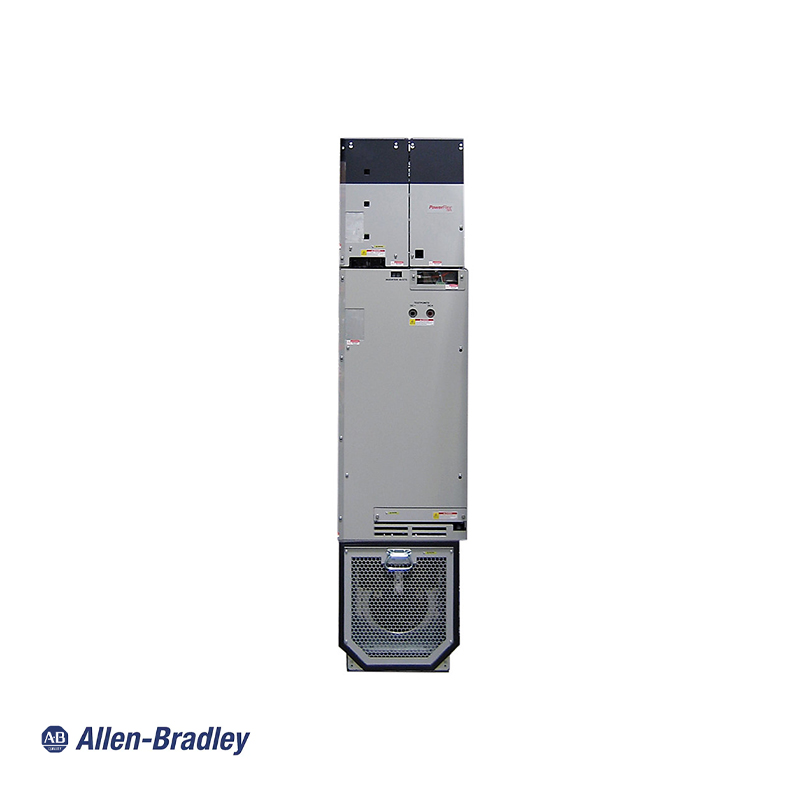

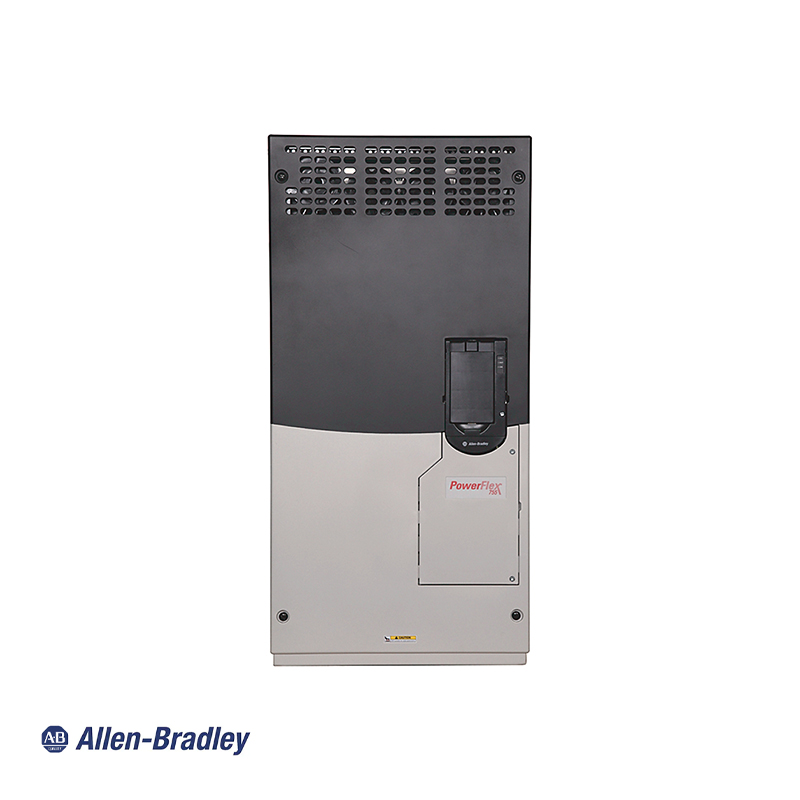

Allen Bradley 20F PowerFlex 753 drives
Allen Bradley 20F PowerFlex 753 drives - Image 2
Allen Bradley 20F PowerFlex 753 drives - Image 3

Allen Bradley 20F PowerFlex 753 drives

Manufacturer: Allen-Bradley (Rockwell Automation)
Model: PowerFlex 753
Power Range: 0.75-400kW (1-535hp)
Supply Voltage: 200-690V AC (3-phase)
Protection Rating: IP00/IP20 NEMA/UL Type Open, IP54 NEMA/UL Type 12
Application: Industrial motor control

Get a Quote

Product Description

The Allen-Bradley PowerFlex 753 AC Drives are cost-effective, high-performance solutions for controlling three-phase asynchronous motors, ranging from 0.75kW to 400kW (1hp to 535hp) at 40°C. Operating at 200-690V AC (3-phase), they feature built-in I/O, V/Hz control, vector control with FORCE™ technology, and sensorless vector control. Suitable for applications like pumps, fans, and conveyors in manufacturing and processing industries, they include predictive diagnostics, a slot-based architecture for option modules, and operate reliably up to 70°C with derating.

Standard Features

  • Power Range: 0.75-400kW (1-535hp)

  • Voltage Compatibility: 200-690V AC (3-phase)

  • Protection: IP00/IP20 NEMA/UL Type Open, IP54 NEMA/UL Type 12

  • Control: V/Hz, vector, sensorless vector

  • Safety: Safe Torque-Off (PLe/SIL3 CAT 3), predictive diagnostics

  • Durability: Operates up to 70°C with derating

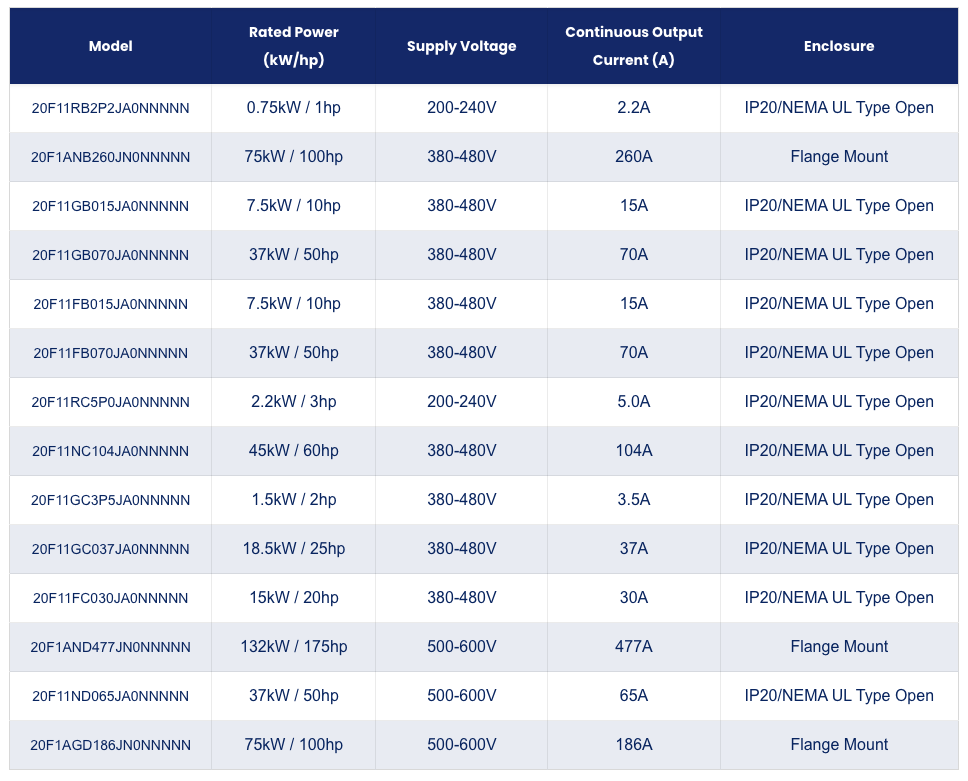

Technical Specifications

ModelRated Power (kW/hp)Supply VoltageContinuous Output Current (A)Enclosure
20F11RB2P2JA0NNNNN0.75kW / 1hp200-240V2.2AIP20/NEMA UL Type Open
20F1ANB260JN0NNNNN75kW / 100hp380-480V260AFlange Mount
20F11GB015JA0NNNNN7.5kW / 10hp380-480V15AIP20/NEMA UL Type Open
20F11GB070JA0NNNNN37kW / 50hp380-480V70AIP20/NEMA UL Type Open
20F11FB015JA0NNNNN7.5kW / 10hp380-480V15AIP20/NEMA UL Type Open
20F11FB070JA0NNNNN37kW / 50hp380-480V70AIP20/NEMA UL Type Open
20F11RC5P0JA0NNNNN2.2kW / 3hp200-240V5.0AIP20/NEMA UL Type Open
20F11NC104JA0NNNNN45kW / 60hp380-480V104AIP20/NEMA UL Type Open
20F11GC3P5JA0NNNNN1.5kW / 2hp380-480V3.5AIP20/NEMA UL Type Open
20F11GC037JA0NNNNN18.5kW / 25hp380-480V37AIP20/NEMA UL Type Open
20F11FC030JA0NNNNN15kW / 20hp380-480V30AIP20/NEMA UL Type Open
20F1AND477JN0NNNNN132kW / 175hp500-600V477AFlange Mount
20F11ND065JA0NNNNN37kW / 50hp500-600V65AIP20/NEMA UL Type Open
20F1AGD186JN0NNNNN75kW / 100hp500-600V186AFlange Mount
