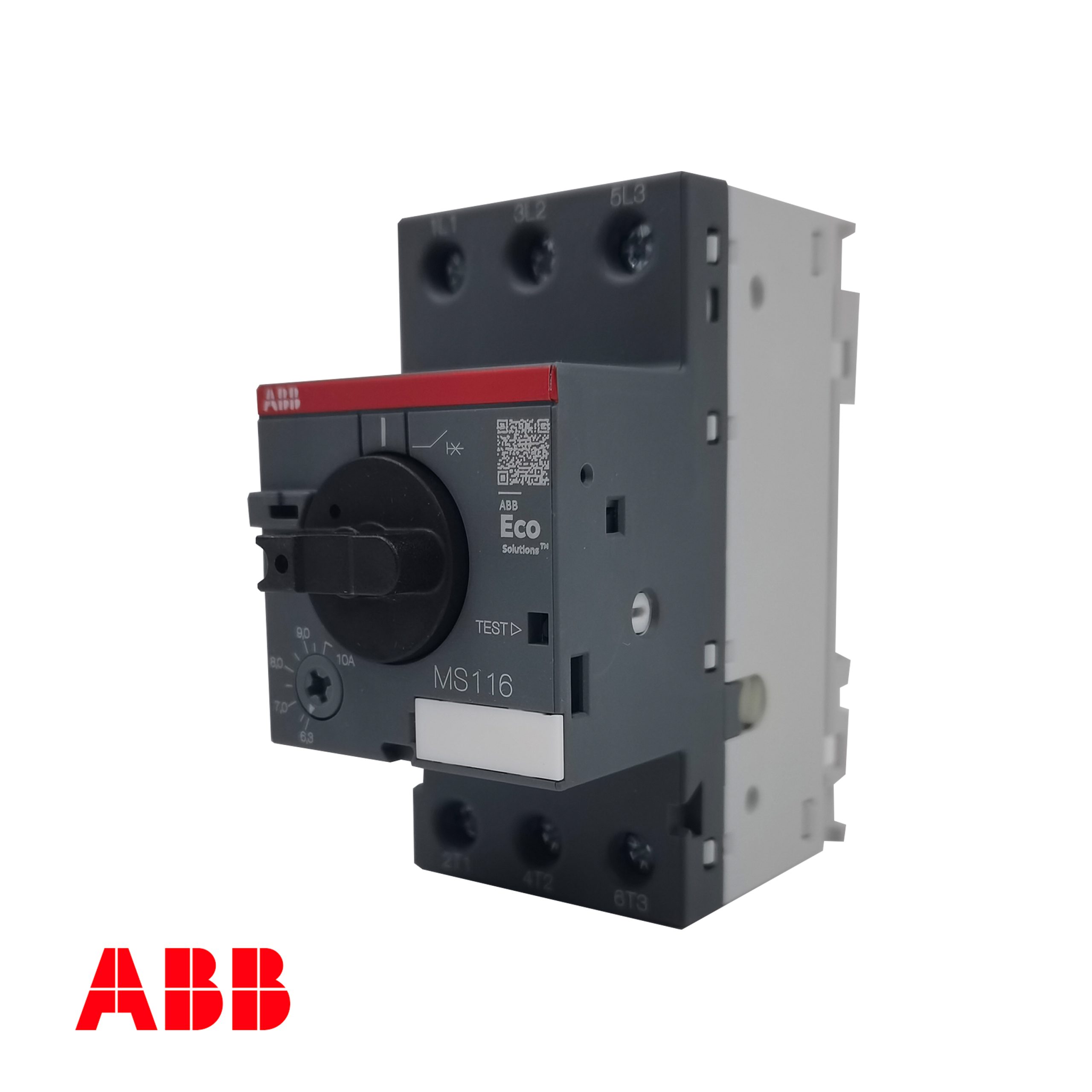

ABB MS116‑10 Manual Motor Starter – 10A, 3‑Pole, 4kW @ 400V (AC‑3), Class 10A, 45mm Width

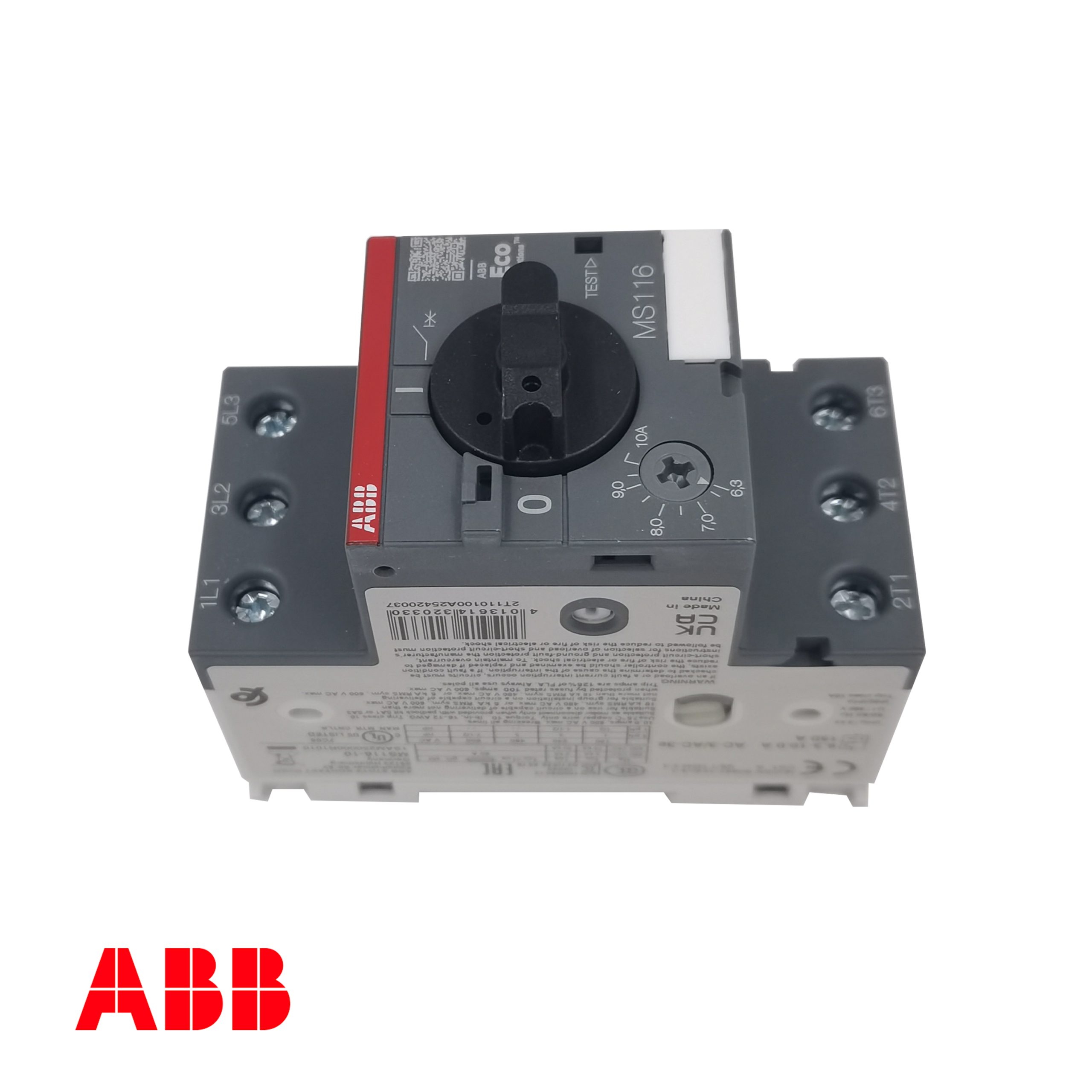

ABB MS116‑10 Manual Motor Starter – 10A, 3‑Pole, 4kW @ 400V (AC‑3), Class 10A, 45mm Width - Image 2
ABB MS116‑10 Manual Motor Starter – 10A, 3‑Pole, 4kW @ 400V (AC‑3), Class 10A, 45mm Width - Image 3

ABB MS116‑10 Manual Motor Starter – 10A, 3‑Pole, 4kW @ 400V (AC‑3), Class 10A, 45mm Width

ParameterValue
Product TypeManual Motor Starter / Motor Protection Circuit Breaker (MPCB)
Series / BrandMS116 / ABB
Model NumberMS116‑10
Order Number1SAM250000R1010[reference:32]
Number of Poles3‑pole[reference:33]
Rated Operational Current (Ie)10.0 A[reference:34]
Overload Release Adjustment Range6.3…10.0 A[reference:35][reference:36]
Instantaneous Short‑Circuit Release Setting150 A[reference:37][reference:38]
Motor Power – AC‑3 @ 230V4 kW[reference:39]
Motor Power – AC‑3 @ 400V4 kW[reference:40][reference:41]
Rated Operational Voltage (Ue)690 V AC[reference:42]
Rated Insulation Voltage (Ui)690 V[reference:43]
Rated Impulse Withstand Voltage (Uimp)6 kV[reference:44][reference:45]
Rated Ultimate Short‑Circuit Breaking Capacity (Icu) @ 400 VAC75 kA[reference:46][reference:47]
Rated Service Short‑Circuit Breaking Capacity (Ics) @ 400 VAC50 kA[reference:48][reference:49]
Tripping ClassClass 10A[reference:50]
Phase Failure SensitivityYes[reference:51]
Dimensions (W × H × D)45 mm × 90 mm × 85.6 mm[reference:52]
Net WeightApprox. 0.265 kg[reference:53]
MountingDIN rail (35 mm)[reference:54]
Terminal TypeScrew terminals[reference:55]
Degree of Protection (IP)IP20 (housing) / IP10 (terminals)[reference:56]
Ambient Operating Temperature‑25°C to +70°C[reference:57][reference:58]
Standards & CertificationsIEC/EN 60947‑1/‑2[reference:59], UL 508[reference:60], CSA, CCC, CE, EAC[reference:61]
Country of OriginGermany[reference:62]
Get a Quote

Product Description

The MS116-16 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 16.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures.

Standard Features

Manual Motor Starter MS116 The manual motor starter offers a rated service short-circuit breaking capacity Ics = 16 kA at 400 VAC and trip class 10A.

  • Overload protection – trip class 10A
  • Phase loss sensitivity
  • Disconnect function
  • Temperature compensation from -25 … +55 °C
  • Adjustable current setting for overload protection
  • Suitable for three- and single-phase applications
  • Trip-free mechanism
  • Clear switch position indication ON/OFF

Technical Specifications

Setting rangeTypeOrder code
0.10-0.16MS116-0.161SAM250000R1001
0.16-0.25 MS116-0.251SAM250000R1002
0.25-0.40 MS116-0.41SAM250000R1003
0.40-0.63  MS116-0.631SAM250000R1004
0.63-1.00 MS116-1.01SAM250000R1005
1.00-1.60 MS116-1.61SAM250000R1006
1.60-2.50 MS116-2.51SAM250000R1007
2.50-4.00  MS116-4.01SAM250000R1008
4.00-6.30 MS116-6.31SAM250000R1009
6.30-10.0 MS116-101SAM250000R10010
8.00-12.0 MS116-121SAM250000R10011
10.0-16.0 MS116-161SAM250000R10012
16.0-20.0 MS116-201SAM250000R10013
20.0-25.0 MS116-251SAM250000R10014
25.0-32.0 MS116-321SAM250000R10015

Read More

ABB MS116‑10 Manual Motor Starter – 10A, 3‑Pole, 4kW @ 400V (AC‑3), Class 10A, 45mm Width

Manufacturer: ABB
Model: MS116‑10
Order Number: 1SAM250000R1010
Type: Manual Motor Starter / Motor Protection Circuit Breaker (MPCB)
Series: MS116
Rated Operational Current (Ie): 10.0 A
Adjustment Range: 6.3…10.0 A
Motor Power (AC‑3 @ 400V): 4 kW
Tripping Class: Class 10A
Short‑Circuit Breaking Capacity (Icu @ 400V): 75 kA[reference:0]
Application: Manual switching and protection of motors in industrial and commercial applications

The ABB MS116‑10 is a compact 3‑pole manual motor starter (also known as a motor protection circuit breaker or manual motor protector) from the MS116 series[reference:1][reference:2]. With a width of just 45 mm[reference:3][reference:4], it is designed for manual switching and reliable protection of motors against short‑circuits, overload, and phase failures without the need for additional fuses[reference:5]. The device features a thermomagnetic trip mechanism[reference:6] with an adjustable overload release range of 6.3…10 A and a fixed instantaneous short‑circuit release at 150 A[reference:7]. Offering a rated service short‑circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A[reference:8][reference:9], the MS116‑10 is suitable for three‑ and single‑phase applications[reference:10] and complies with global standards including IEC/EN 60947, UL, CSA, and CCC[reference:11]. Ideal for use as a motor disconnect in single motor applications and group motor installations[reference:12].

  • Adjustable Overload Protection: Thermal overload release adjustable from 6.3 A to 10.0 A[reference:13], providing flexible protection for a wide range of motor applications.

  • High Short‑Circuit Breaking Capacity: Delivers Icu = 75 kA at 400 VAC[reference:14][reference:15] and Ics = 50 kA at 400 VAC[reference:16][reference:17], ensuring robust fault protection.

  • Class 10A Tripping: Provides reliable overload protection for standard motor starting applications[reference:18][reference:19].

  • Compact & Space‑Saving Design: 45 mm width[reference:20][reference:21] with DIN rail mounting[reference:22], ideal for control panels with limited space.

  • Phase Failure Sensitivity: Detects phase loss and load imbalances, preventing motor damage[reference:23][reference:24].

  • Secure Screw Terminals: Screw‑type connections[reference:25] ensure reliable wiring and low contact resistance[reference:26].

  • Global Approvals: Certified to IEC/EN 60947‑1/‑2[reference:27], UL 508[reference:28][reference:29], CSA, CCC[reference:30], CE, and EAC[reference:31], suitable for worldwide use.
