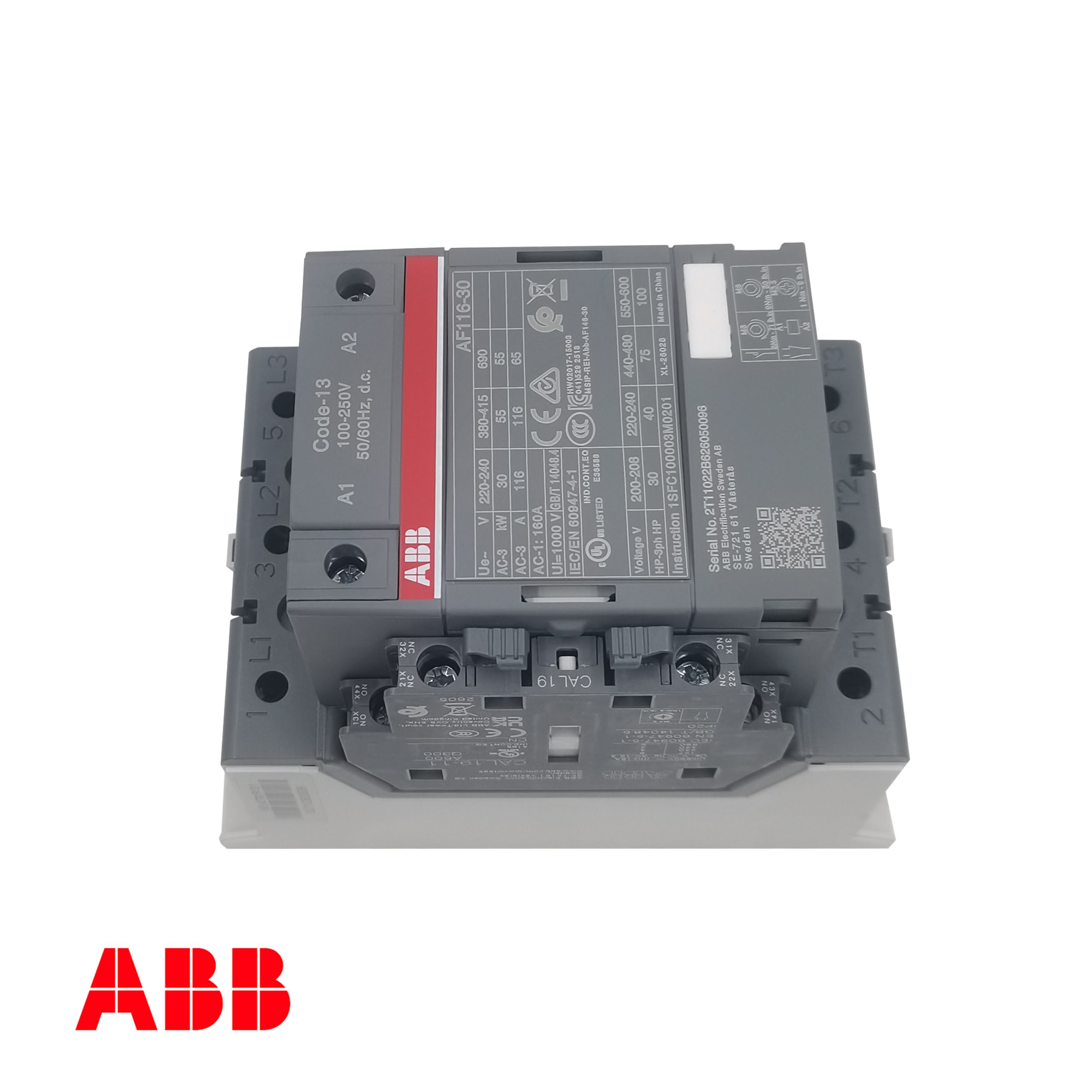

ABB AF116‑30‑11‑13 AF Series Contactor – 116A (AC‑3), 3‑Pole, 55kW @ 400V, 100‑250V AC/DC Wide‑Range Coil
| Parameter | Value |
|---|---|
| Product Type | IEC Power Contactor |
| Series / Brand | AF116 / ABB |
| Model Number | AF116‑30‑11‑13 |
| Order Number | 1SFL427001R1311[reference:15][reference:16] |
| Number of Poles | 3‑pole[reference:17] |
| Main Contact Configuration | 3 NO (3PST‑NO)[reference:18] |
| Rated Operational Current (Ie) – AC‑3 @ 400V | 116A[reference:19][reference:20] |
| Rated Operational Current – AC‑1 @ 400V | 160A[reference:21][reference:22] |
| Motor Power – AC‑3 @ 400V | 55kW[reference:23][reference:24] |
| Motor Power – AC‑3 @ 440‑500V | 75kW[reference:25][reference:26] |
| Motor Power – AC‑3 @ 690V | 55kW[reference:27][reference:28] |
| Motor Power – UL (480V) | 75 HP[reference:29][reference:30] |
| Rated Operational Voltage (Ue) | 690V AC / 600V UL[reference:31][reference:32] |
| Coil Control Voltage | 100‑250V AC/DC (50/60Hz)[reference:33][reference:34] |
| Auxiliary Contacts | 1 NO + 1 NC[reference:35][reference:36] |
| Connection Type | Screw terminals (cage clamps)[reference:37][reference:38] |
| Dimensions (H × W × D) | 150mm × 90mm × 126mm[reference:39][reference:40] |
| Net Weight | Approx. 1.77 kg[reference:41] |
| Mounting | DIN rail or panel mount[reference:42][reference:43] |
| Standards & Certifications | IEC 60947‑4‑1, UL 60947‑4‑1, CSA C22.2, CCC, CE, RoHS[reference:44] |
| Country of Origin | Sweden[reference:45] |
Product Description
The ABB AX09-30-10-36 is a compact, high-reliability 3-pole miniature contactor from the AX series. With a 9 A AC-3 rating, it is ideal for controlling small three-phase motors up to 4 kW at 400 V, as well as lighting, heating elements, solenoid valves, and other general-purpose loads. The 36 VAC coil makes it suitable for specific control voltage systems common in certain machinery and safety circuits. It includes one built-in normally open auxiliary contact for signaling or interlocking, and features screw terminals for secure wiring. The AX series is known for its space-saving design, long mechanical and electrical life, and easy integration in control panels and automation systems.
Standard Features
9 A AC-3 rating: Suitable for small motors up to 4 kW @ 400 V — perfect for compact machine applications.
36 VAC coil voltage: Specific low-voltage control — commonly used in machinery with 36 V safety circuits.
Built-in 1 NO auxiliary contact: Provides signaling or interlocking without the need for additional blocks.
Compact design: Only 36 mm width — space-efficient for DIN-rail mounting in tight panels.
Screw clamp terminals: Secure and vibration-resistant wiring for 0.75–4 mm² cables.
High endurance: Mechanical life >10 million operations — reliable for frequent switching.
Global approvals: IEC 60947-4-1, UL, CSA, CE — accepted worldwide for industrial use.
Technical Specifications
Manufacturer: ABB
Model: AF116‑30‑11‑13
Type: IEC Power Contactor
Series: AF116
Rated Current (AC‑3 @ 400V): 116A
Motor Power (AC‑3 @ 400V): 55kW
Coil Voltage: 100‑250V AC/DC (50/60Hz)
Auxiliary Contacts: 1 NO + 1 NC (pre‑mounted)
Connection: Screw terminals (cage clamps)
The ABB AF116‑30‑11‑13 is a 3‑pole IEC contactor from the AF series, designed for motor control and power circuit switching in industrial applications[reference:0][reference:1]. Rated at 116A (AC‑3) with a motor power of 55kW at 400V, it is ideal for motors, pumps, compressors, and HVAC systems. The wide‑range coil (100‑250V AC/DC) provides flexibility across control voltages, reducing panel complexity[reference:2][reference:3]. Featuring built‑in surge protection, pre‑mounted auxiliary contacts, and a compact block design, the AF series delivers reliable performance in demanding environments[reference:4].
Wide‑Range Coil (100‑250V AC/DC): Operates on both AC and DC control voltages from 100‑250V, providing flexibility for diverse control systems and reducing inventory requirements[reference:5][reference:6].
Built‑In Surge Protection: Integrated surge suppression eliminates the need for external protection components, simplifying panel design and reducing costs[reference:7].
Pre‑Mounted Auxiliary Contacts: Comes with 1 NO + 1 NC auxiliary contacts factory‑installed, reducing installation time and simplifying wiring[reference:8][reference:9].
High Motor Switching Capacity: Rated at 116A (AC‑3) with 55kW motor power at 400V, suitable for demanding motor control applications[reference:10][reference:11].
Compact Block Design: Space‑saving 90mm width with DIN rail mounting, easily extendable with add‑on auxiliary contact blocks and accessories[reference:12].
Reliable Performance in Unstable Networks: AF technology ensures distinct operations even with large control voltage variations, reducing panel energy consumption[reference:13].
Global Approvals: Certified to IEC 60947‑4‑1, UL 60947‑4‑1, CSA C22.2, CCC, CE, and RoHS compliant[reference:14].
