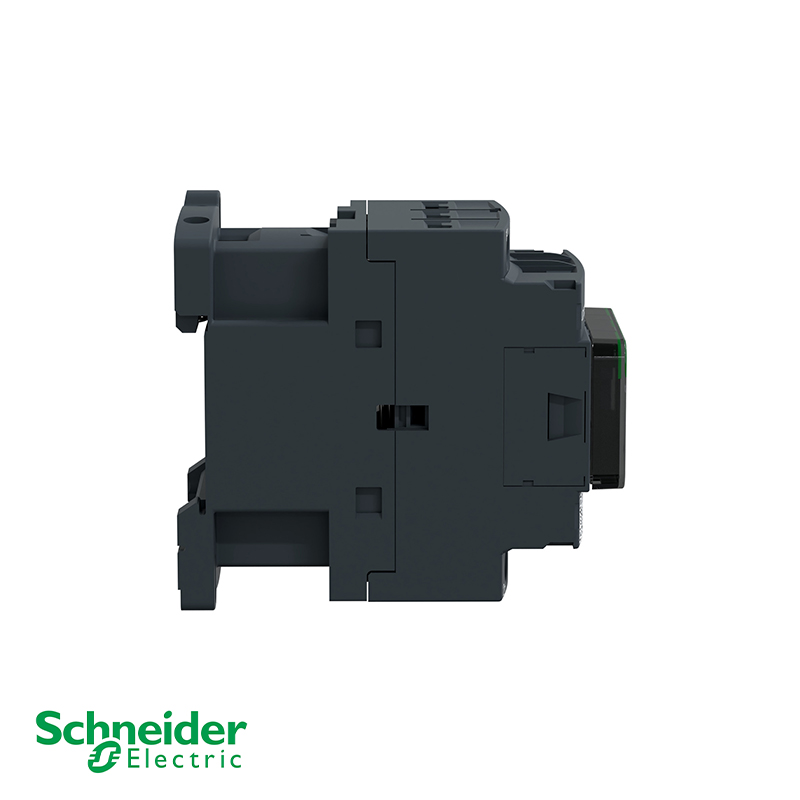

Schneider LC1D12M7 TeSys D Contactor 12A 220V AC 5.5kW
Schneider LC1D12M7 TeSys D Contactor 12A 220V AC 5.5kW - Image 2
Schneider LC1D12M7 TeSys D Contactor 12A 220V AC 5.5kW - Image 3

Schneider LC1D12M7 TeSys D Contactor 12A 220V AC 5.5kW

Manufacturer: Schneider Electric
Model: LC1D12M7
Number of Poles: 3P (3 NO)
Rated Current: 12 A at <= 440 V AC-3
Coil Voltage: 220 V AC 50/60 Hz
Auxiliary Contacts: 1 NO + 1 NC

Get a Quote

Product Description

The Schneider Electric LC1D12M7 is a reliable 3-pole TeSys Deca contactor designed for motor control up to 5.5kW at 400V. It features a 12A rated current (AC-3) and a 220V AC 50/60Hz control coil. This contactor includes 1NO + 1NC auxiliary contacts and uses EverLink terminal technology for consistent tightening. Trusted worldwide, the LC1D12M7 offers high electrical and mechanical durability, making it ideal for standard industrial, infrastructure, and building applications.

Standard Features

  • Motor Switching: Optimized for starting and stopping squirrel cage motors efficiently.

  • EverLink Technology: Patented terminal system prevents loosening due to vibration or thermal expansion.

  • Safety Integration: Features mirror contacts and mechanically linked contacts for safety applications.

  • High Duty Cycle: Supports frequent switching operations with high electrical durability.

  • Versatile Mounting: Can be mounted on DIN rails or fixed with screws for flexible panel installation.

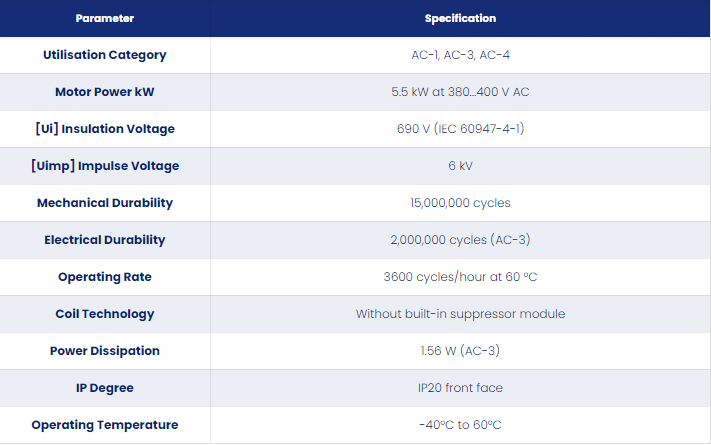

Technical Specifications

ParameterSpecification
Utilisation CategoryAC-1, AC-3, AC-4
Motor Power kW5.5 kW at 380...400 V AC
[Ui] Insulation Voltage690 V (IEC 60947-4-1)
[Uimp] Impulse Voltage6 kV
Mechanical Durability15,000,000 cycles
Electrical Durability2,000,000 cycles (AC-3)
Operating Rate3600 cycles/hour at 60 °C
Coil TechnologyWithout built-in suppressor module
Power Dissipation1.56 W (AC-3)
IP DegreeIP20 front face
Operating Temperature-40°C to 60°C
