Digital and Analog I/O in PLC Systems: What Every Engineer Needs to Know

In PLC systems, discrete I/O handles binary, on/off signals for status and control, including presence detection, starting, stopping, and triggering alarms. Meanwhile, analog I/O is used for continuous measurement and proportional control of process variables.

The digital and analog Input/Output or I/O dictates how the PLC communicates with its surrounding environment. This means that a breakdown of the PLC I/O module could bring down the entire assembly line within seconds. It’s therefore crucial to get a replacement in time.

The majority of PLCs use four different types of signals, which include DI, DO, AI, and AO. Learning the difference between digital and analog I/O will assist you in choosing the right module and wiring it correctly at one go.

This guide explains each I/O type clearly. It covers signal selection, common wiring mistakes, and how to source replacement modules fast.

What are the Four I/O Types?

Every PLC controls a process through input and output signals. The type of signal you use depends entirely on what the field device does.

Below are the four I/O types:

Digital Input (DI)

A DI signal has only two states: ON or OFF. It reads binary conditions from field devices.

• Typical devices: push buttons, limit switches, proximity sensors, E-stops.
• Common voltage: 24 VDC (most industrial sites); also 120 VAC and 5 VDC TTL.
• Example: detecting whether a conveyor gate is open or closed before a robot cycles.

Your digital input module must match the sensor’s logic type, such as PNP (sourcing) or NPN (sinking). Mismatching them is the most common wiring error for DI circuits.

Digital Output (DO)

A DO signal switches a load fully ON or fully OFF. It does not modulate or vary the output.

• Typical devices: solenoid valves, relay coils, indicator lamps, motor starter contactors.
• Output types: relay (handles AC or DC loads), transistor (fast DC switching), TRIAC (AC loads).
• Example: triggering a pneumatic solenoid to extend a cylinder at a packaging checkpoint.

Always stay within the module’s per-channel current rating. Exceeding it destroys the output circuit.

Analog Input (AI)

An AI signal carries a continuous measurement; not just on/off, but a value across a full range.

• Typical devices: pressure transmitters, flow meters, temperature sensors (4-20 mA output).
• Signal standards: 4-20 mA (current loop) and 0-10 V (voltage).
• Resolution: 12-bit (4,096 steps) or 16-bit (65,536 steps) depending on the analog input module selected.
• Example: monitoring tank fill level which is 4 mA = 0%, 20 mA = 100%; PLC scales the value to engineering units.

Analog Output (AO)

An AO signal sends a variable command from the PLC to a final control element.

• Typical devices: variable speed drives (VFDs), proportional control valves, positioners.
• Example: commanding a pump to run at 60% speed by outputting 13.6 mA to the VFD speed reference input.

The table below summarizes all four types:

How Do You Choose Between Digital vs. Analog I/O?

Choosing between digital and analog I/O means deciding if your field device should switch between two states or measure a range.

Here are the factors that you need to consider when deciding:

• Use digital I/O when the condition is binary: present or absent, open or closed, running or stopped.
• Use analog I/O when you need to measure or control a variable: pressure, flow, temperature, or speed.
• Most real machines use both types simultaneously. For example, a digital output starts a pump while an analog output sets its speed.

Allen-Bradley 1769 Precision Analog I/O Module

Manufacturer: Allen-Bradley
Model: CompactLogix 1769 Analog I/O Module
Operating Voltage: 24V DC (range: 10.2–26.4V DC)
Response Time: 0.3 ms (resistive load) / 3.0 ms (capacitive load)

View Product

4-20 mA vs. 0-10 V: Which Signal Standard Should You Use?

Once you decide to use analog I/O, you need to choose the right signal standard. These are the two most common options in industrial automation.

Use 4-20 mA for most field wiring runs. Its current-loop design resists electromagnetic interference (EMI) and detects broken wires automatically. Any reading below 4 mA indicates a wiring fault or failed transmitter.

Use 0-10 V for short runs within control cabinets. It is simpler to wire and costs less, but a broken wire reads as 0 V; the same as a valid zero signal. You cannot detect the fault automatically.

Always verify that your analog input module‘s input range matches the transmitter’s output specification before installing.

Here is a summary of the criteria:

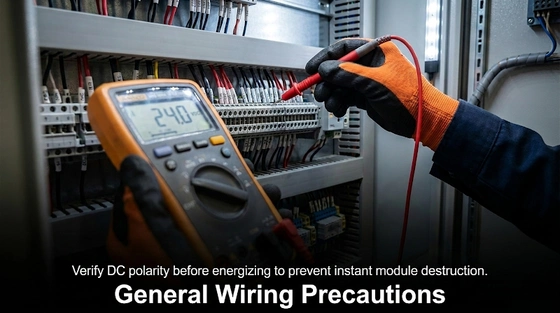

Common Wiring Precautions for PLC I/O Modules

Incorrect wiring is the leading cause of I/O module failures during commissioning. Follow these precautions to protect your equipment and avoid repeat downtime.

General Rules

1. De-energize the PLC rack and all field devices before connecting or disconnecting any terminal.
2. Verify DC power supply polarity before energizing. Reversed polarity on a digital input module destroys the input circuit instantly.
3. Check the maximum input voltage and current ratings on the PLC IO module label. Never exceed them.
4. Label every wire at both ends with terminal numbers. This saves hours during future troubleshooting.

Digital I/O Wiring

1. Confirm NPN or PNP topology before wiring. Mismatching the sensor and module logic type prevents the input from triggering.
2. Install a flyback diode (DC circuits) or snubber (AC circuits) across inductive loads switched by digital outputs. Voltage spikes from solenoids and motors damage output modules.
3. Total all DO channel loads. Verify the sum stays below the module’s rated continuous current output.

Analog I/O Wiring

1. Ground the cable shield only at the control panel side. Grounding at both ends creates a ground loop that injects 50/60 Hz noise onto the analog signal.
2. Keep analog cables at least 150 mm away from VFD output cables and high-voltage power wiring.
3. After wiring, confirm calibration. The 4 mA must equal your process zero; 20 mA must equal your process maximum.

How to Source for PLC I/O Modules

A wrong replacement module wastes time and delays restart. Verify these four points before placing your order:

1. Match the exact part number. Minor variant differences in input voltage, channel count, and bus version can make a module physically or logically incompatible with your rack.
2. Confirm signal type and range. A replacement analog input module must support the same signal range (4-20 mA or 0-10 V) and resolution as the original.
3. Check NPN/PNP configuration. Ordering the wrong logic type forces you to rewire every field sensor on that module.
4. Verify firmware compatibility. Some replacement PLC IO module variants require a CPU firmware update. Factor this into your restart timeline.

Conclusion

Understanding digital and analog I/O lets you make faster, more confident decisions.

Digital signals handle binary switching. Analog signals measure and control continuous variables. Most automated systems need both working together.

Simply Buy Global complies with ISO 9001 international quality management and CE standards in Europe. We ship PLC I/O modules worldwide via air freight and international courier. Hence, cutting down lead times from weeks to days and helps avoid costly factory downtime.
