Single Phase VFD Guide: How to Run a 3-Phase Motor on Single-Phase Power

A single phase VFD converts standard single-phase power into a balanced three-phase output that can drive industrial AC motors. It turns incoming single-phase current into a stable pool of DC voltage, then rebuilds a smooth three-phase output from that bus. This lets small workshops run heavy machinery without paying for a utility grid upgrade.

Can You Run a 3-Phase Motor on Single-Phase Power?

Home hobby and small manufacturing setups run into this wall constantly. You purchase a three-phase machine tool, then realize that your building only hosts single-phase lines. Single-phase power isn’t capable of starting or running a three-phase motor, since it lacks the timing delays necessary to create the initial rotational spin.

Single-Phase Input → Internal DC Rectifier → Stable DC Capacitor Pool → Three-Phase Inverter → Running 3-Phase Motor

The mismatch is solved with the integration of a dedicated conversion drive. The drive takes the power from the single-phase line and smoothes it through internal capacitors. It then utilizes fast electronic switches to make a three-phase output. The output? The operator gets full control over the torque and speed, that too without calling the utility firm.

Power Derating and the FLA Rule

Remember this golden rule when sizing a single phase to three phase VFD setup: buy a heavily oversized drive. Because you’ll have fewer lines moving the electricity, the drive needs to pull a lot more current via those remaining paths to provide full turning power to your motor.

You can think of it like an internal traffic jam. Inside a standard drive, you have like six electronic gates (called didoes) dividing up the electrical workload. Feeding that drive with single-phase power means two of those gates will sit idle and force the whole workload to flow over the remaining paths. Additionally, the electricity coming from single-phase power flows in choppy waves rather than a continuous stream. Your drive’s capacitors will need to work twice as much to smooth out the constant voltage drops. If your unit is too small, the extra heat can quickly cook it.

To keep your equipment from burning out, engineers use a strict double-the-amps sizing rule (technically a 1.73x to 2x multiplier). If your motor’s metal nameplate says it draws 10 Amps, your conversion drive must be beefy enough to handle an input load of at least 17.3 to 20 Amps. Guessing on this size or picking an undersized drive will permanently fry the internal circuits the very first time your machine digs into a heavy load. To avoid a costly mistake, the smartest move is to take a quick, clear photo of your motor’s nameplate and send it to Simply Buy Global’s technical support team for a free customized selection plan built safely around your shop’s actual electrical limits.

Settings You’ll Need to Adjust

Wiring up the drive is only half the job. A few internal settings need adjusting to keep everything running safely on single-phase power.

Most industrial drives are pre-programmed to trip an “Input Phase Loss” alarm the second they notice a missing power terminal, so running a three-phase motor on single-phase input means going into the parameter menus to disable that alarm. Acceleration time matters too: since single-phase current spikes hard during motor starts, stretching the ramp-up window to 5 or 10 seconds instead of 1 or 2 cuts down those surges and stops nuisance trips. Keep an eye on ripple voltage as well, since excessive ripple means the drive is pushing past its safe thermal capacity, and running hot too long will degrade the internal capacitors.

How to Select the Right VFD, Step by Step

Four steps get a conversion project done right without risking the equipment.

Step 1: Document the motor nameplate values

Note down the kilowatts (kW), horsepower (HP), and Full Load Amperage (FLA), depending on how you plan to wire the terminal box.

Step 2: Apply the sizing rule

Now take the nameplate FLA and multiply it by two. Then, match the number against the continuous output current rating of the drive. This is done to leave ample electrical headroom. Don’t make the mistake of matching it against the horsepower badge.

Step 3: Verify the line voltage match

Confirm the incoming supply matches drive requirements. For small workshops on standard utility loops, a dedicated 220v single phase VFD lets you step up output parameters to run matching low-voltage three-phase motors cleanly.

Step 4: Account for tough loads

Machines like stamping presses and vertical hoists handle heavy physical loads. As such, they require an extra 25% safety buffer on the continuous power rating to absorb the high starting torque.

Where to Source the Right Conversion Hardware

Navigating conversion variables across different machine configurations can complicate a facility’s procurement schedule fast. Simply Buy Global stocks a wide portfolio of original, multi-brand motor controllers and drive components ready for immediate international delivery.

This incldues the Allen-Bradley PowerFlex 523 line, which features a modular design with built-in USB configuration, Connected Components Workbench support, and current control across voltage classes from 100V to 600V, covering most light industrial single-phase conversion setups.

If your application leans toward high-precision positioning rather than standard motor control, we also carry Inovance’s servo line. The SV630 offers a 2kHz speed loop with EtherCAT and CANopen support for cost-effective retrofits, while the SV660 steps up to a 23-bit encoder for tighter control on faster lines. These are servo drives rather than VFDs, so they suit motion-control work rather than a straight single-phase-to-three-phase conversion.

Whether you’re updating a small commercial CNC mill or sourcing for a larger OEM production line, every order ships with a 100% authenticity guarantee, full factory warranties, and dependable global logistics.

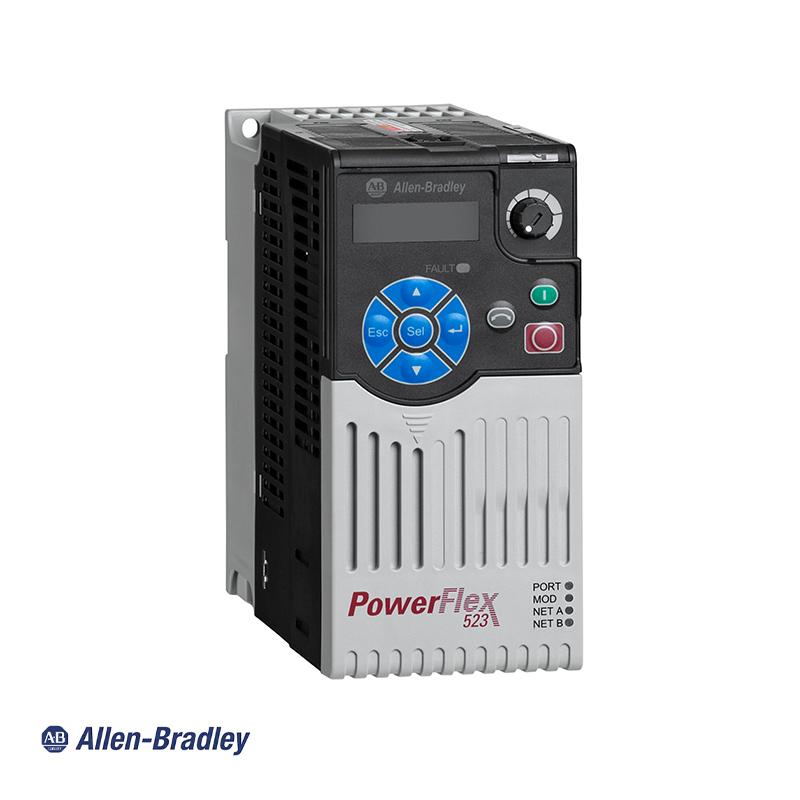

Allen‑Bradley PowerFlex 523

Manufacturer: Allen‑Bradley
Model: PowerFlex 523
Power: 0.2…22 kW / 0.25…30 Hp
Voltage level: 100-600V

View Product

Frequently Asked Questions

Can you use a standard VFD as a vfd for single phase motor control?

No. A standard three-phase conversion drive can’t control a native single-phase motor, like a split-phase or capacitor-start type. These drives output balanced three-phase power exclusively, and trying to run a single-phase motor through one burns out the windings from the missing starting-capacitor phase match, usually tripping the drive immediately anyway.

What’s the difference between Delta and Star motor wiring?

The majority of dual-voltage three-phase motors let you change internal wiring inside the terminal box. If it’s a 220V low-voltage single-phase supply, hitting full related torque requires you to wire the motor in a parallel Delta pattern. A higher voltage (like 415V or 380V)  is needed if you want to wire the same motor in a series Star pattern. Having Star on a lower-voltage line will stall the motor due to the torque drop.

Why is an external input line reactor recommended?

A line reactor acts as an inductive filter between the utility lines and the drive’s input terminals. Single-phase conversion pulls large, non-linear current spikes to keep the DC bus capacitors charged, creating harmonic distortion on the shop’s electrical grid. A reactor smooths those surges out and shields the internal rectifier diodes from voltage spikes on the mains side.
