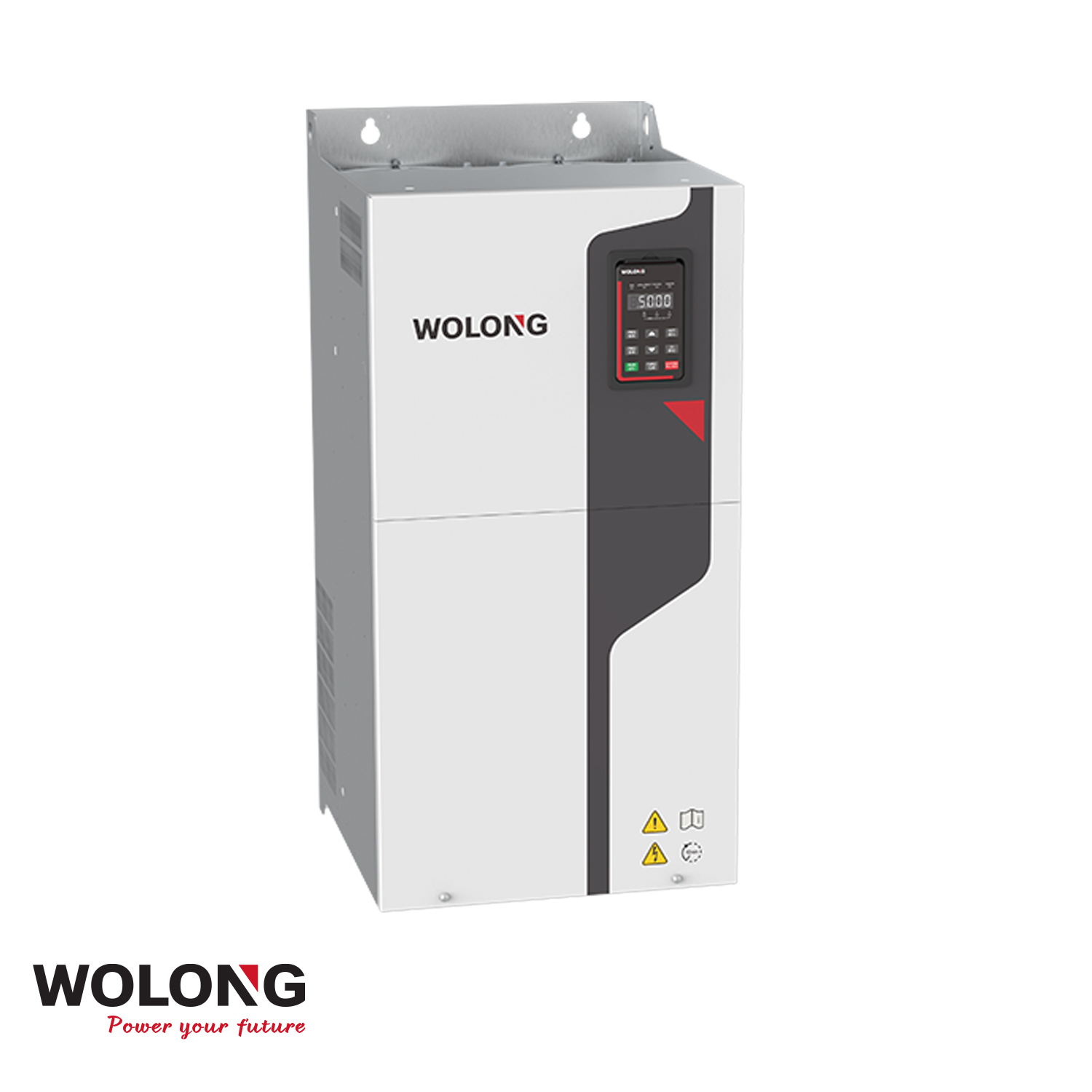

WD200 series high performance general-purpose AC drive

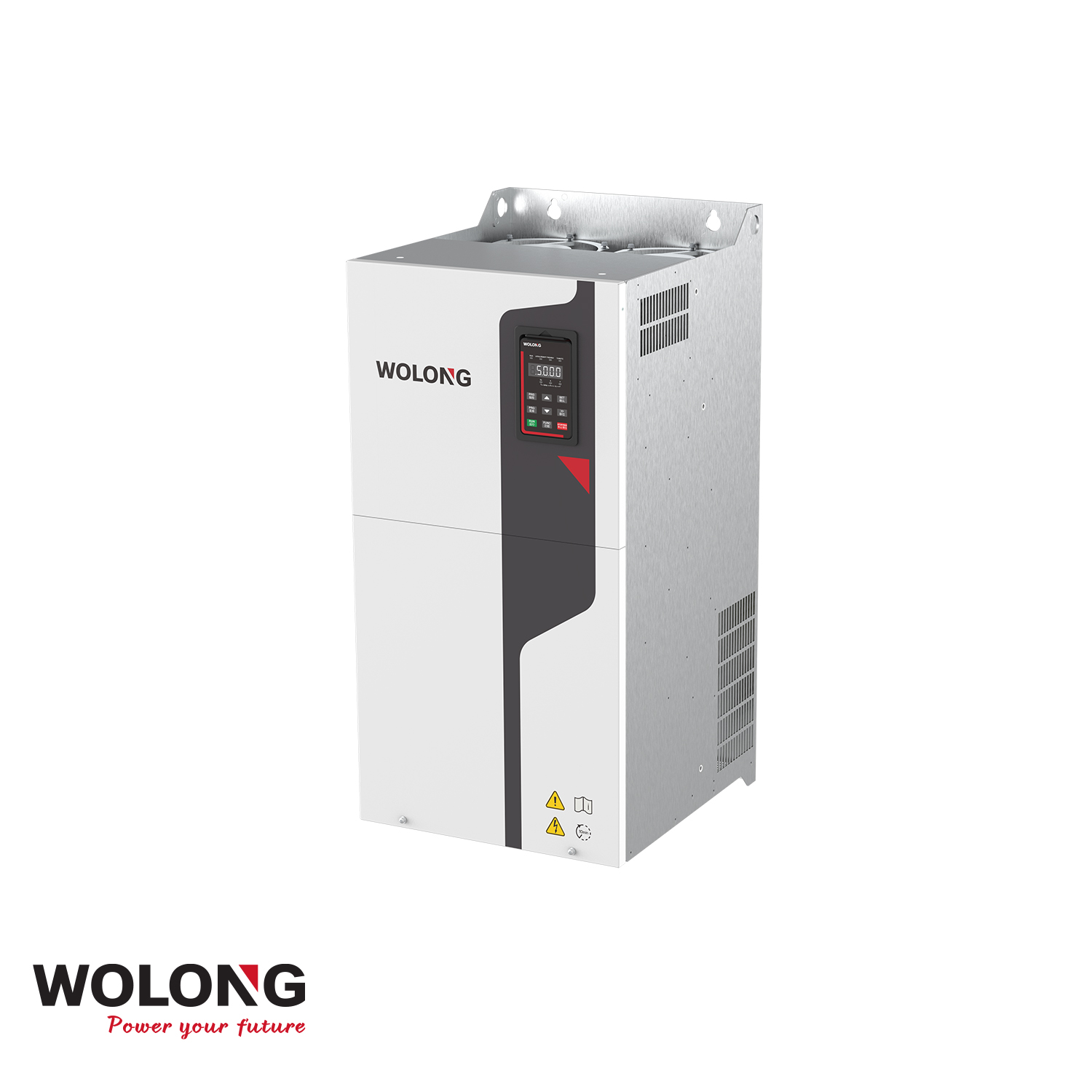

WD200 series high performance general-purpose AC drive - Image 2

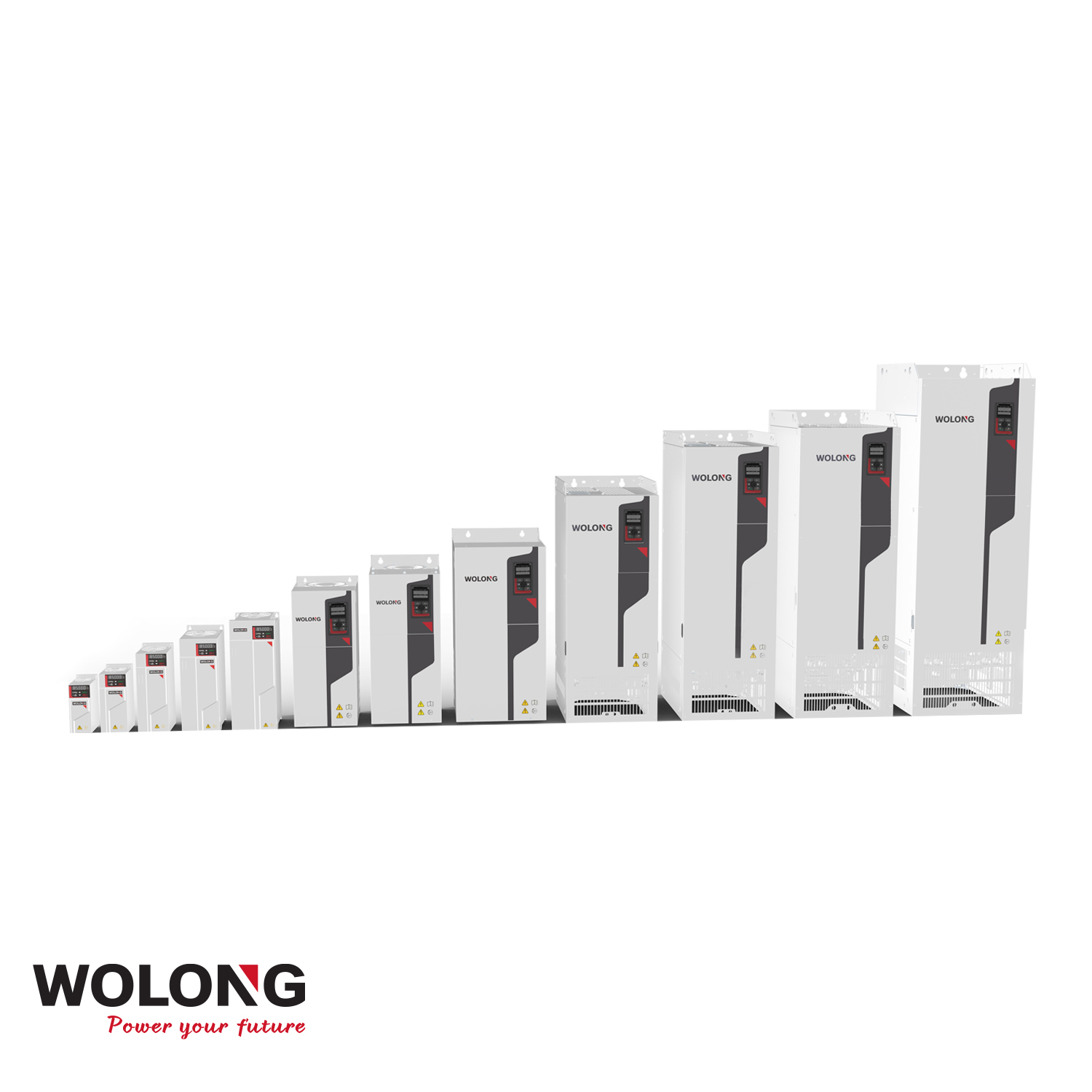

WD200 series high performance general-purpose AC drive - Image 3

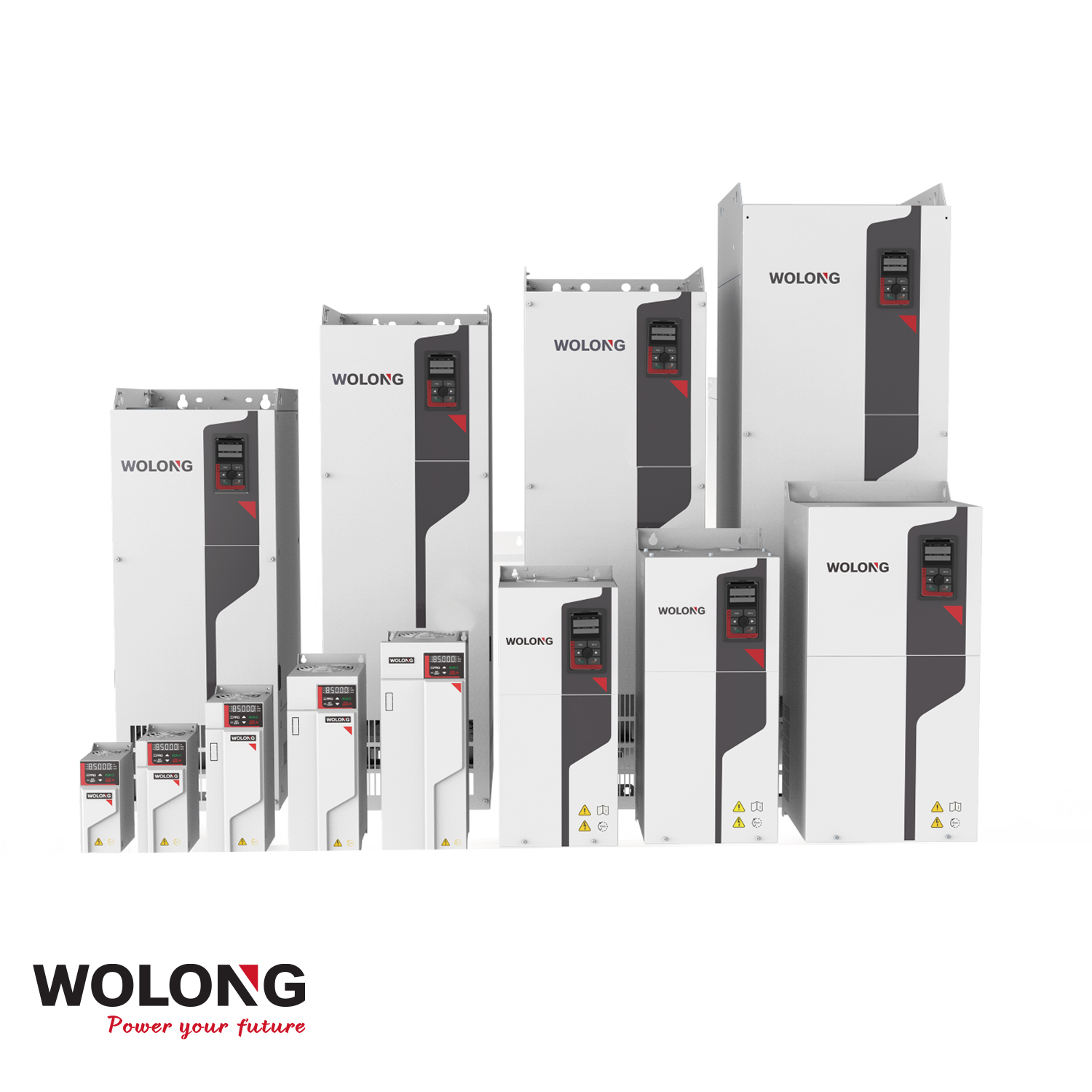

WD200 series high performance general-purpose AC drive - Image 4

WD200 series high performance general-purpose AC drive

Manufacturer: WOLONG

Motor Type:  Three phase asynchronous Motor (IM) / Permanent magnet synchronous motor (PMSM) / Synchronous reluctance motor (SynRM)

Supply Voltage Power Range: Single- phase 200V~240V -10%~10%  Three- phase 380V~480V ~15%~10%

Power Range: 0.75~630kW
Power Supply Frequency: 50/60Hz ±5%
Output Frequency Range: 0~600Hz
Breaking Capacity: 6kA
Residual Current Protection Type: A
Residual Current Tripping Unit Type: Electronic
Rated Voltage: 230 VAC

Get a Quote

Product Description

  • Asynchronous or permanent magnet synchronous motor control, synchronous reluctance motor, V/F or vector control, open loop/closed loop control, speed control, torque control, PID control, multi speed function, simple PLC function, swing frequency control, counting and timing function, speed tracking start, power outage restart function, etc.

Standard Features

  • High efficiency & protection:High-performance vector control: 150% rated torque at 0.5Hz (SVC); 200% rated torque at 0Hz (FVC) for smooth startup.

  • High control precisionm: Speed accuracy ±0.5% (IM), ±0.1% (PMSM, SVC), ±0.02% (FVC).
  • Wide power range: Covers 0.75kW to 500kW, compatible with global 380–480V three-phase grids.
  • Rich expansion: Two extension ports for I/O, encoder, and communication modules (Modbus, Profibus, etc.)
  • High efficiency & protection: Up to 98% efficiency; comprehensive safeguards (short circuit, overload, overvoltage, undervoltage).

Technical Specifications

ParameterValue
Installation MethodDIN-Rail Mounting, Wall mounted installation, flange mounting, Floor mounted
Cooling MethodForced air cooling
Protection GradeIP20
Operation Temperature-10°C ~ +50°C (>40°C need to reduce capacity)
Storage Temperature-30°C ~ +60°C
