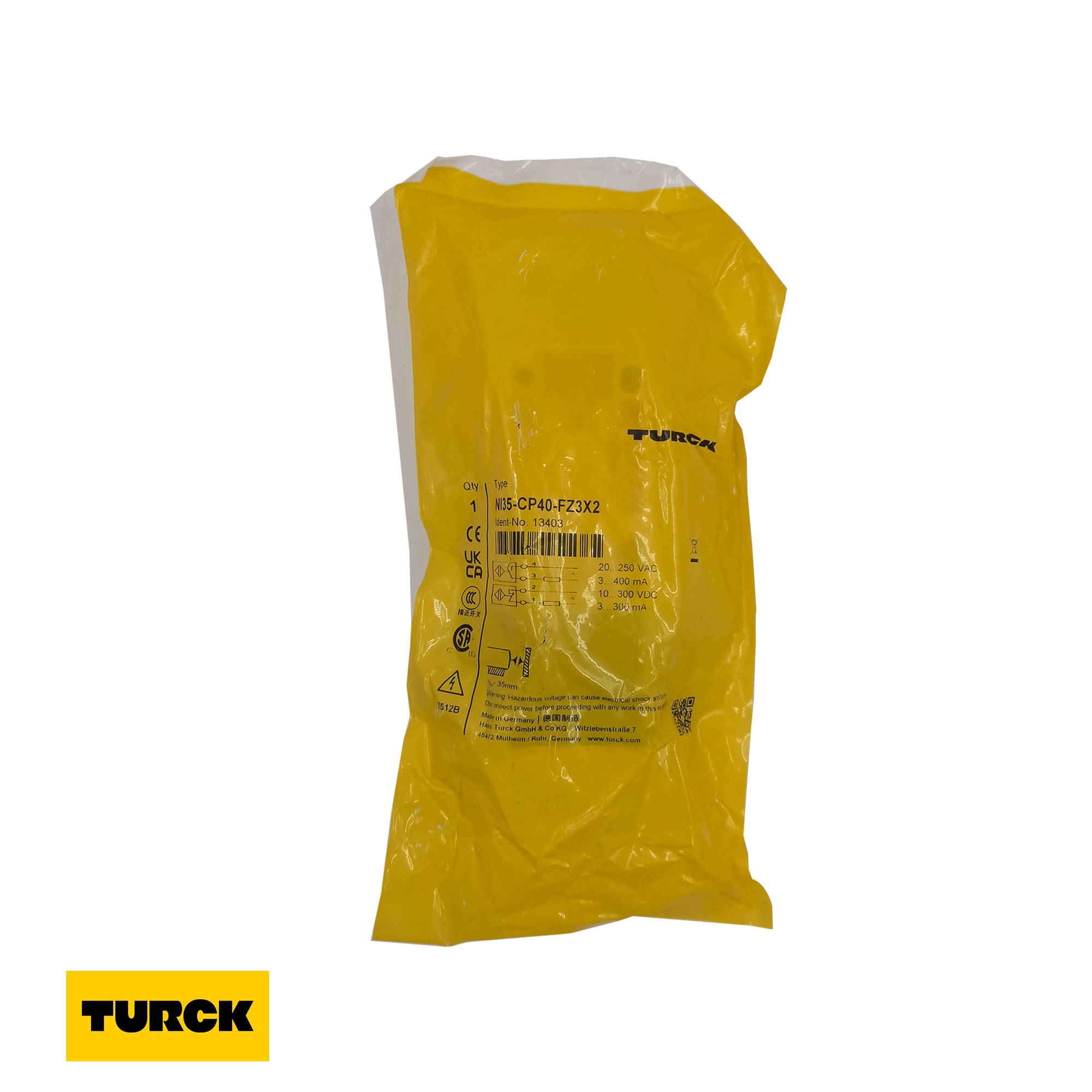

TURCK NI35-CP40-FZ3X2 Inductive Proximity Sensor – 35mm Sensing, 2‑Wire AC/DC, Non‑Flush, IP67
TURCK NI35-CP40-FZ3X2 Inductive Proximity Sensor – 35mm Sensing, 2‑Wire AC/DC, Non‑Flush, IP67 - Image 2

TURCK NI35-CP40-FZ3X2 Inductive Proximity Sensor – 35mm Sensing, 2‑Wire AC/DC, Non‑Flush, IP67

ParameterValue
TypeNI35-CP40-FZ3X2
Ident. no.13403
Product TypeInductive Proximity Sensor
Series / DesignFA1 / CP40, Rectangular
Rated Switching Distance (Sn)35 mm
Mounting ConditionsNon‑flush
Secured Operating Distance≤ (0.81 × Sn) mm
Correction FactorsSt37 = 1; Al = 0.3; Stainless steel = 0.7; Ms = 0.4
Repeat Accuracy≤ 2% of full scale
Temperature Drift≤ ±10%
Hysteresis3…15%
Operating Voltage (AC)20…250 VAC
Operating Voltage (DC)10…300 VDC
AC Rated Operational Current≤ 400 mA
DC Rated Operating Current (Ia)≤ 300 mA
Frequency≥ 50…≤ 60 Hz
Residual Current≤ 1.7 mA
Isolation Test Voltage1.5 kV
Surge Current≤ 8 A (≤ 10 ms max. 5 Hz)
Voltage Drop at Ia≤ 6 V
Output Function2‑wire, Connection programmable (NO or NC)
Smallest Operating Current≥ 3 mA
Switching Frequency0.02 kHz (20 Hz)
Electrical ConnectionTerminal chamber
Clamping Ability≤ 2.5 mm²
Housing MaterialPlastic, PBT‑GF30‑V0, Black
Active Area MaterialPlastic, PBT‑GF30‑V0, Yellow
Dimensions114 × 40 × 40 mm
Weight226 g
Ambient Operating Temperature‑25…+70 °C
Protection ClassIP67
Country of OriginDE (Germany)
EAN4047101066654
Get a Quote

TURCK NI35-CP40-FZ3X2 Inductive Proximity Sensor – 35mm Sensing, 2‑Wire AC/DC, Non‑Flush, IP67

Manufacturer: TURCK
Model: NI35-CP40-FZ3X2
Ident. no.: 13403
Type: Inductive Proximity Sensor
Series: FA1 / CP40
Rated Switching Distance: 35 mm
Mounting: Non‑flush
Operating Voltage: 20…250 VAC / 10…300 VDC
Output Function: 2‑wire, programmable (NO or NC)
Electrical Connection: Terminal chamber
Protection Class: IP67

The TURCK NI35-CP40-FZ3X2 is a rectangular inductive proximity sensor from the CP40 series, designed for reliable non‑contact detection of metal objects in demanding industrial environments. With a rated switching distance of 35 mm and a non‑flush mounting capability, it offers flexible installation in space‑constrained applications. The sensor features a 2‑wire AC/DC output that is programmable as normally open (NO) or normally closed (NC), operating across a wide voltage range of 20…250 VAC or 10…300 VDC. Its PBT‑GF30‑V0 plastic housing provides excellent mechanical strength and chemical resistance, while high‑luminance corner LEDs enable clear status indication from any viewing angle. The terminal chamber connection simplifies wiring, and the IP67 rating ensures reliable performance in harsh conditions. Ideal for position sensing, limit detection, and presence monitoring in industrial automation, material handling, and machine tool applications.

  • 35 mm Sensing Distance: Provides reliable non‑contact detection of metal targets at distances up to 35 mm, suitable for a wide range of industrial sensing applications.

  • Wide AC/DC Operating Voltage: Operates on 20…250 VAC or 10…300 VDC, offering exceptional flexibility for integration into diverse control systems without additional power conditioning.

  • Programmable 2‑Wire Output: The output function can be configured as normally open (NO) or normally closed (NC), eliminating the need for separate sensor variants and reducing inventory requirements.

  • Non‑Flush Mounting: Allows the sensor to be mounted with a portion of its sensing face exposed, enabling higher sensing distances compared to flush‑mount designs.

  • High‑Visibility Corner LEDs: High‑luminance LEDs at the corners provide optimum visibility of supply voltage and switching state from any position, simplifying installation and troubleshooting.

  • Rugged PBT‑GF30‑V0 Housing: Glass‑fiber reinforced plastic housing offers excellent mechanical strength, dimensional stability, and chemical resistance for demanding industrial environments.

  • IP67 Protection & Wide Temperature Range: Rated IP67 for dust and water resistance, with an operating temperature range of ‑25°C to +70°C, ensuring reliable performance in harsh conditions.
