Turck BI8-M18-AP6X-H1141 Inductive Proximity Sensor

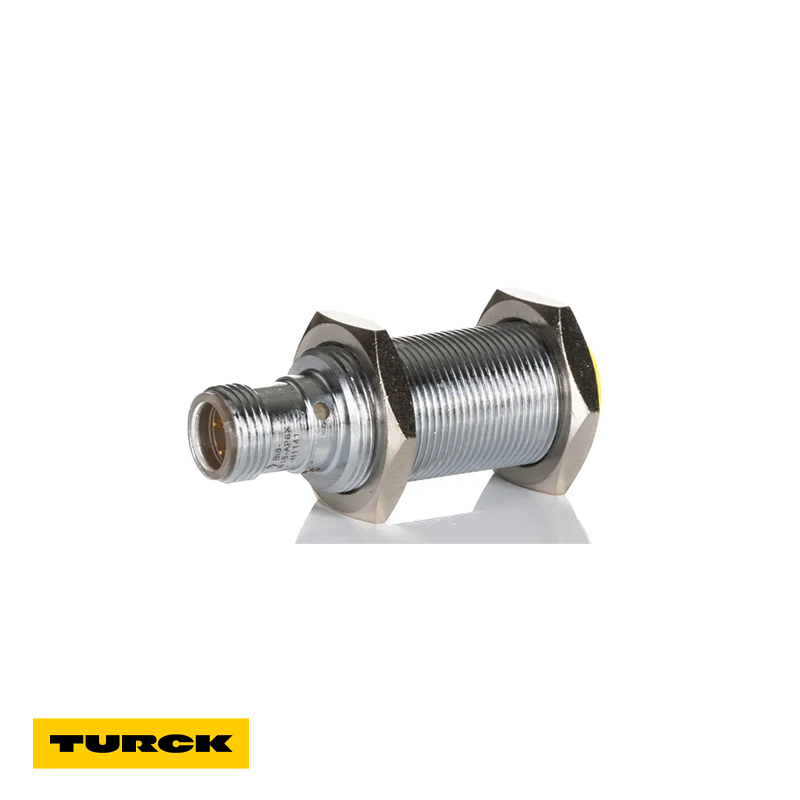

Turck BI8-M18-AP6X-H1141 Inductive Proximity Sensor - Image 2

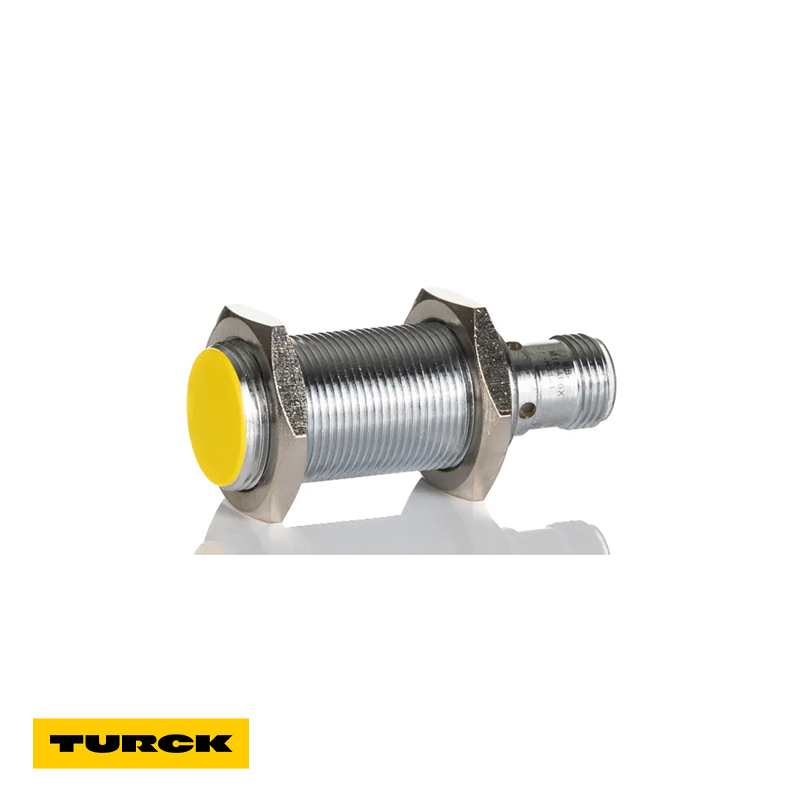

Turck BI8-M18-AP6X-H1141 Inductive Proximity Sensor - Image 3

Turck BI8-M18-AP6X-H1141 Inductive Proximity Sensor

Manufacturer: TURCK
Model: BI8-M18-AP6X-H1141
Sensing Range: 8 mm (flush)
Output Type: PNP, Normally Open
Operating Voltage: 10–30 VDC
Housing Material: Nickel-plated brass
Protection Rating: IP67
Connection: M12 connector, 4-pin
Operating Temperature: -25°C to +70°C

Get a Quote

Product Description

The Turck BI8-M18-AP6X-H1141 is an M18 inductive proximity sensor designed for stable metal detection in demanding industrial environments. It delivers an 8 mm sensing range, reliable PNP normally open output, and enhanced noise immunity for automated machinery. With its robust brass housing, high switching accuracy, and IP67 protection, the sensor performs consistently in manufacturing, packaging, robotics, and material-handling systems. Its compact cylindrical structure allows easy installation in tight equipment layouts while maintaining long-term durability.

Standard Features

  • Reliable Metal Detection: Stable inductive sensing with 8 mm flush-mount detection.

  • Noise Immunity: Designed to withstand electromagnetic interference in industrial environments.

  • Robust Housing: Nickel-plated brass construction ensures durability and long service life.

  • Easy Integration: Standard M12 connector for fast installation and maintenance.

  • Wide Voltage Range: Operates on 10–30 VDC for flexible system compatibility.

  • Environmental Protection: IP67 rating supports use in moisture and dust-prone areas.

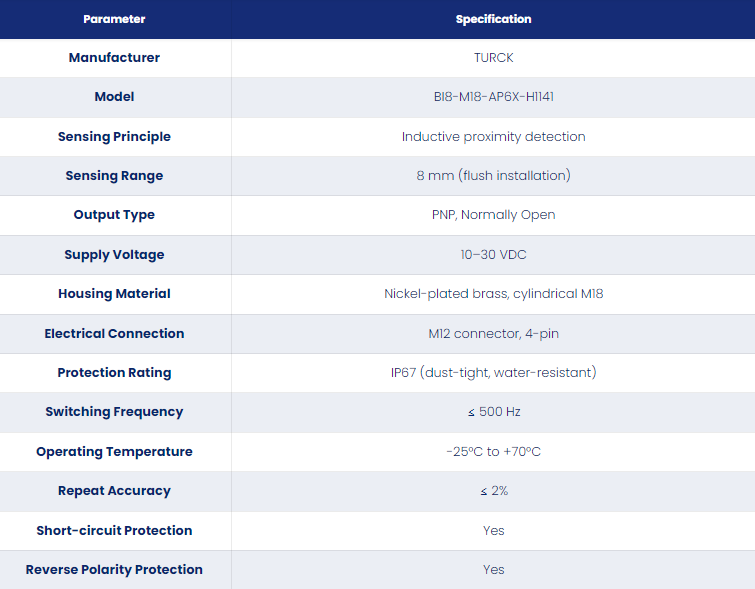

Technical Specifications

Parameter Specification
ManufacturerTURCK
ModelBI8-M18-AP6X-H1141
Sensing PrincipleInductive proximity detection
Sensing Range8 mm (flush installation)
Output TypePNP, Normally Open
Supply Voltage10–30 VDC
Housing MaterialNickel-plated brass, cylindrical M18
Electrical ConnectionM12 connector, 4-pin
Protection RatingIP67 (dust-tight, water-resistant)
Switching Frequency≤ 500 Hz
Operating Temperature-25°C to +70°C
Repeat Accuracy≤ 2%
Short-circuit ProtectionYes
Reverse Polarity ProtectionYes
