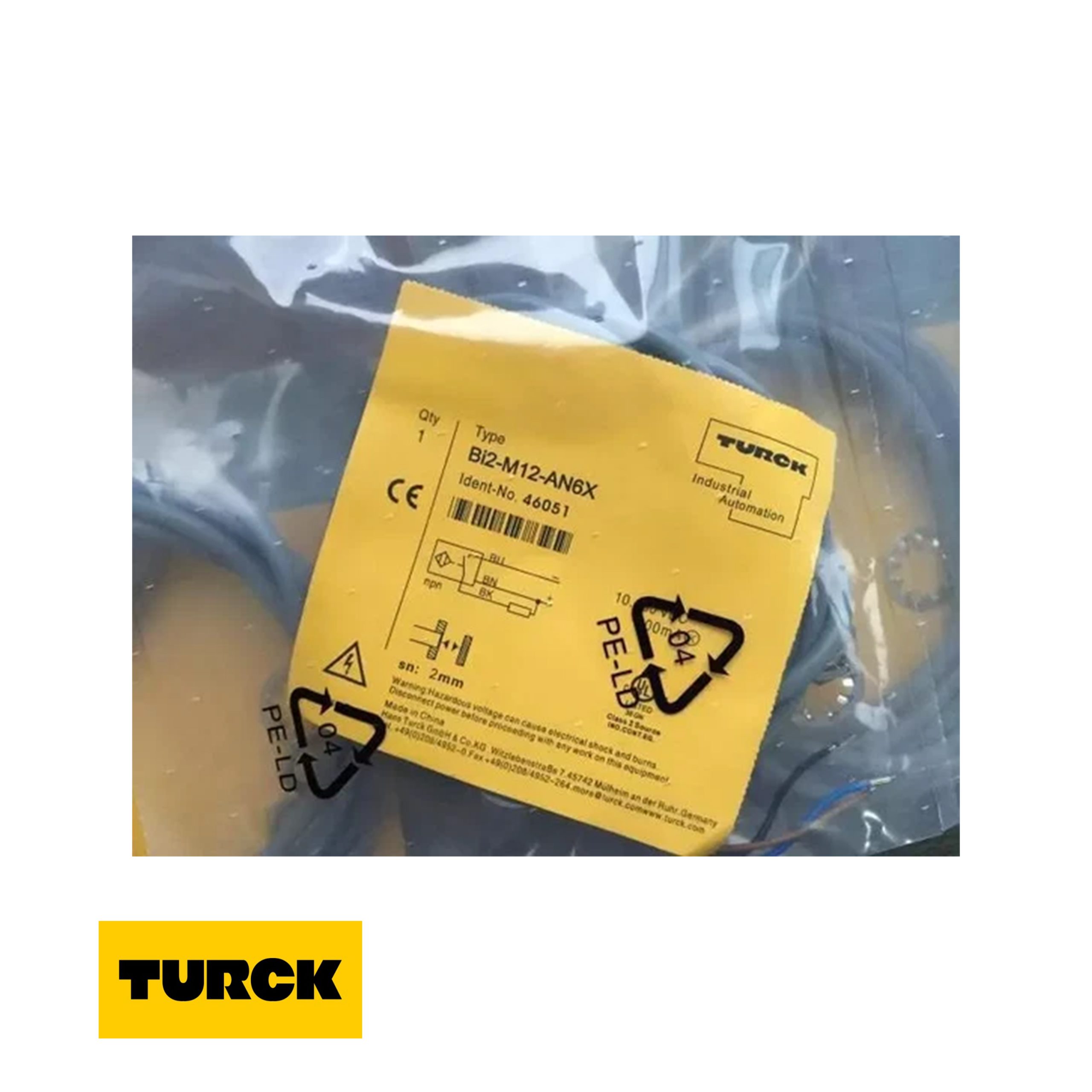

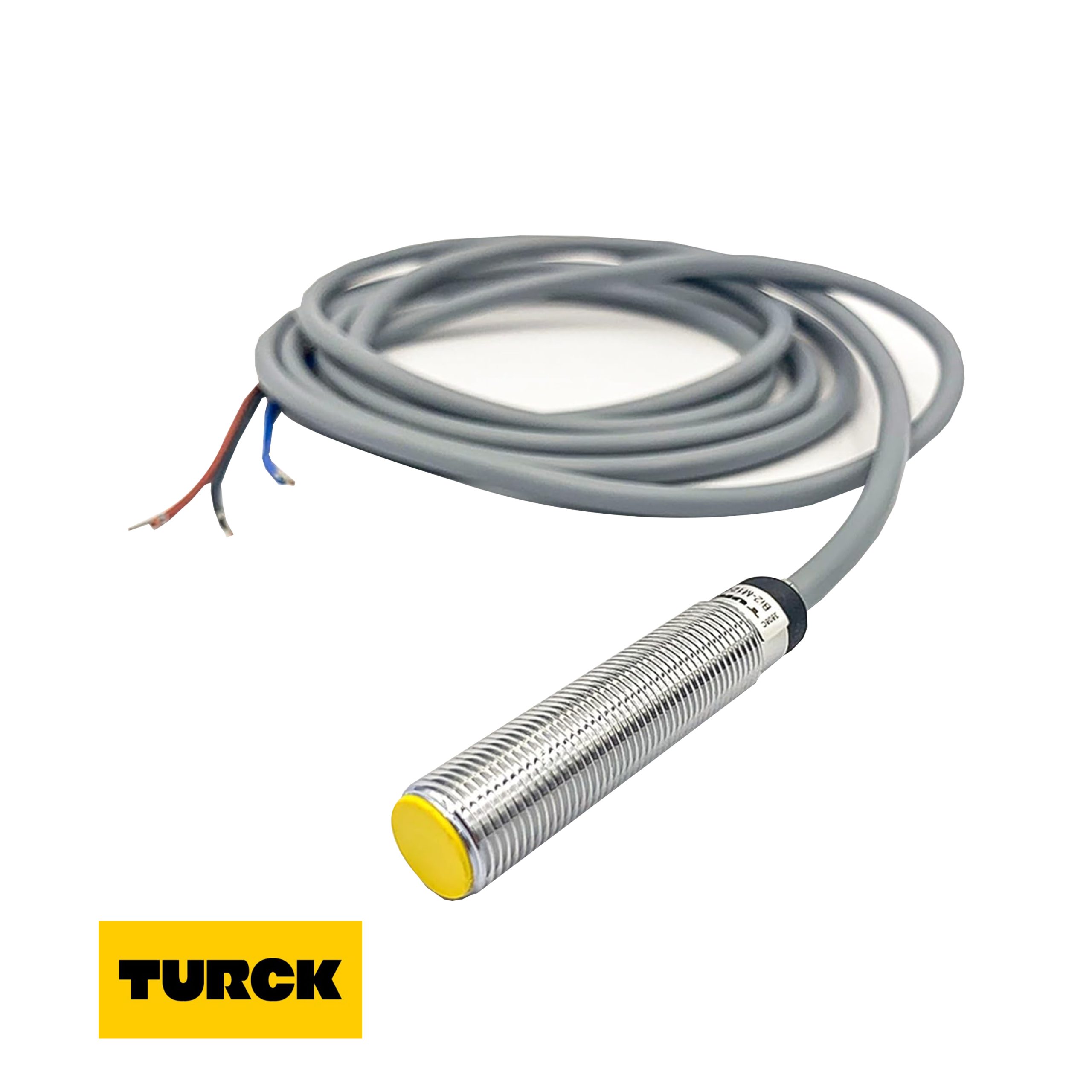

TURCK BI2-M12-AN6X M12 Inductive Proximity Sensor 2mm NPN Normally Open

Product Description

The TURCK BI2-M12-AN6X is a compact M12 inductive proximity sensor designed for reliable, contactless detection of metal objects in industrial automation and machine control applications. It features a 2 mm rated switching distance, flush mounting, and a 3-wire NPN normally open output. The sensor operates from 10 to 30 VDC and supports switching frequencies up to 2 kHz. Its chrome-plated brass threaded housing, 2 m PVC cable, and IP67 protection provide a robust solution for demanding industrial environments. The sensor also includes short-circuit, wire-break, and reverse-polarity protection. :contentReference[oaicite:0]{index=0}

Standard Features

• 2 mm rated switching distance: Provides reliable contactless detection of metallic objects in automated machinery.
• M12 threaded design: Compact M12 x 1 cylindrical housing supports convenient installation in industrial equipment.
• NPN normally open output: Provides a standard 3-wire switching interface for industrial control systems.
• 10–30 VDC operation: Suitable for common DC control and automation power supplies.
• 2 kHz switching frequency: Supports fast object detection in high-speed automation applications.
• IP67 protection: Provides reliable protection against dust and temporary water immersion in industrial environments.

Technical Specifications
