Turck BI15-CP40-FZ3X2 Inductive Sensor 15mm Sensing AC/DC
Turck BI15-CP40-FZ3X2 Inductive Sensor 15mm Sensing AC/DC - Image 2
Turck BI15-CP40-FZ3X2 Inductive Sensor 15mm Sensing AC/DC - Image 3

Turck BI15-CP40-FZ3X2 Inductive Sensor 15mm Sensing AC/DC

Manufacturer: Turck
Model: BI15-CP40-FZ3X2
Sensing Range: 15 mm (Flush)
Operating Voltage: 20…250 VAC / 10…300 VDC
Output Function: 2-wire, Connection Programmable (NC/NO)
Switching Frequency: 110 Hz (AC) / 500 Hz (DC)

Get a Quote

Product Description

The Turck BI15-CP40-FZ3X2 is a robust inductive proximity sensor housed in a rectangular CP40 form factor. Designed for industrial automation, it features a 15mm rated switching distance with a flush mounting capability. This sensor operates on a versatile 20…250 VAC / 10…300 VDC power supply, making it highly adaptable to various control systems. It is equipped with a connection chamber for easy wiring and provides a 2-wire AC/DC connection output. With IP67 protection, it ensures reliable performance in harsh environments, offering short-circuit protection (pulsed) and LED indicators for power and switching status.

Standard Features

  • Flexible Voltage: Operates efficiently on both AC and DC power supplies (20-250 VAC / 10-300 VDC).

  • Programmable Output: Features a connection chamber that allows for NC or NO output configuration.

  • Robust Design: Rectangular CP40 housing allows for variable orientation of the active face in 9 directions.

  • High Protection: IP67 rated housing ensures resistance against dust and water ingress in industrial settings.

  • Status Indication: Equipped with intense LEDs to indicate power supply (Green) and switching state (Red).

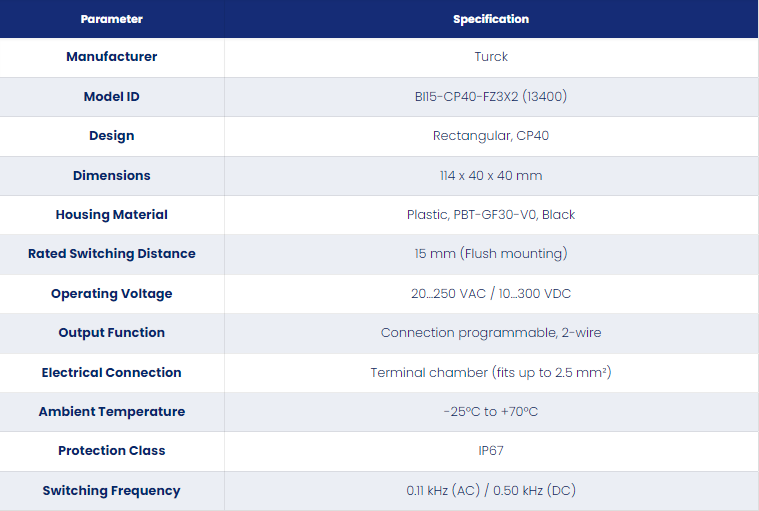

Technical Specifications

Parameter Specification
ManufacturerTurck
Model IDBI15-CP40-FZ3X2 (13400)
DesignRectangular, CP40
Dimensions114 x 40 x 40 mm
Housing MaterialPlastic, PBT-GF30-V0, Black
Rated Switching Distance15 mm (Flush mounting)
Operating Voltage20…250 VAC / 10…300 VDC
Output FunctionConnection programmable, 2-wire
Electrical ConnectionTerminal chamber (fits up to 2.5 mm²)
Ambient Temperature-25°C to +70°C
Protection ClassIP67
Switching Frequency0.11 kHz (AC) / 0.50 kHz (DC)
