Siemens SIRIUS 3RM12 Series Reversing Motor Starter 0.1-7A Up to 3kW 500V Hybrid Starter

Product Description

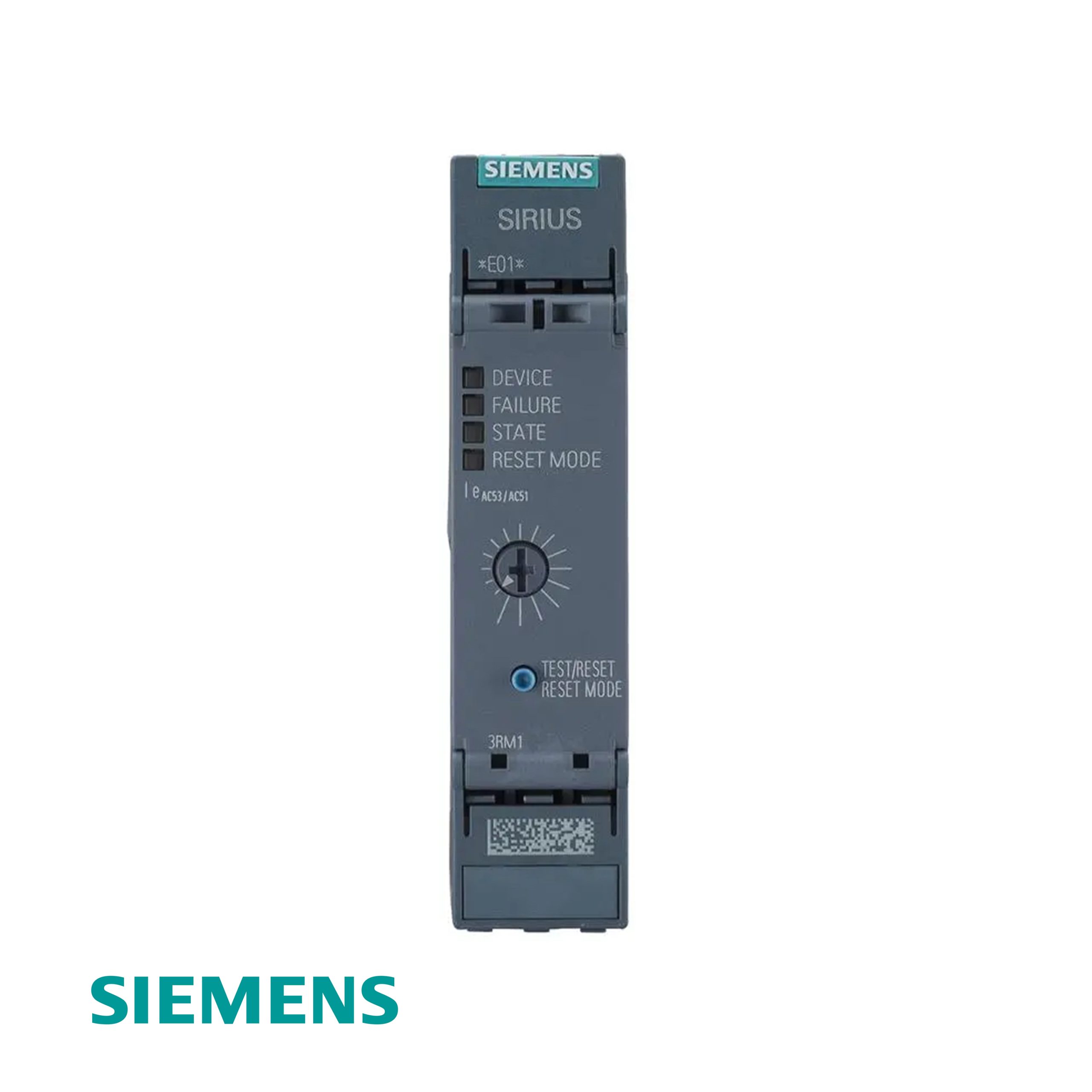

The Siemens SIRIUS 3RM12 is a compact reversing motor starter designed for forward and reverse control of three-phase motors in industrial automation systems. It combines hybrid switching technology with integrated electronic overload protection in a housing only 22.5 mm wide. Depending on the selected variant, the 3RM12 series covers motor current ranges from 0.1 to 7 A and supports motors up to 3 kW at 400 V. Separate control inputs allow the motor direction to be reversed electronically, while the hybrid semiconductor and relay design reduces contact wear and power losses. The series is suitable for conveyors, positioning systems, material handling equipment, and compact machine-control applications.

Standard Features

• Reversing motor control: Provides integrated forward and reverse switching for three-phase motors.
• 0.1–7 A product range: Available in multiple current ranges for small industrial motor applications.
• Up to 3 kW @ 400 V: Supports three-phase motors across the SIRIUS 3RM12 series.
• Hybrid switching technology: Combines semiconductor and relay switching for low-wear operation and reduced power losses.
• Electronic overload protection: Provides integrated motor overload monitoring without a separate thermal overload relay.
• Separate direction inputs: Allows direct control of forward and reverse motor rotation.
• 22.5 mm compact width: Saves valuable space in industrial control cabinets and machine panels.

Technical Specifications
