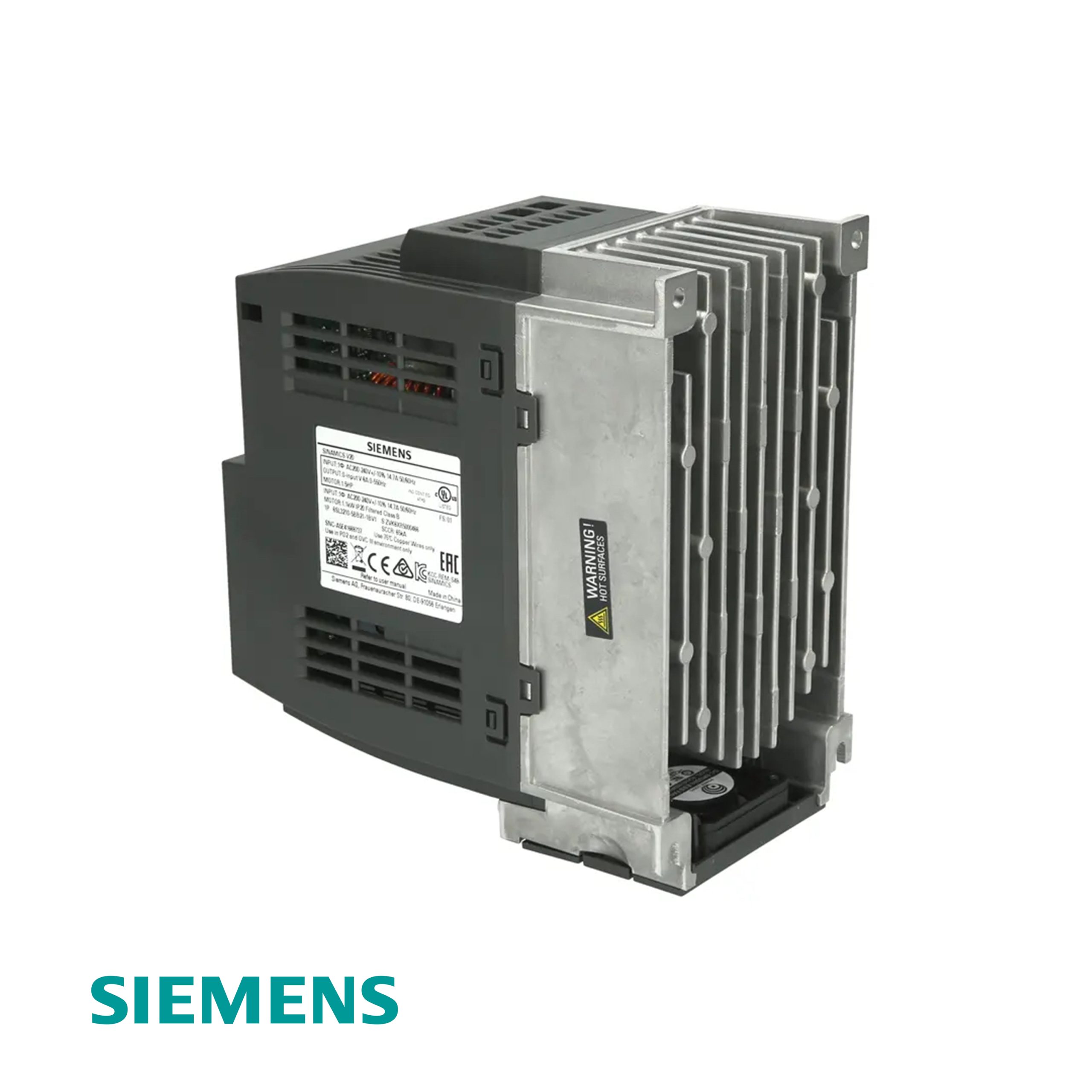

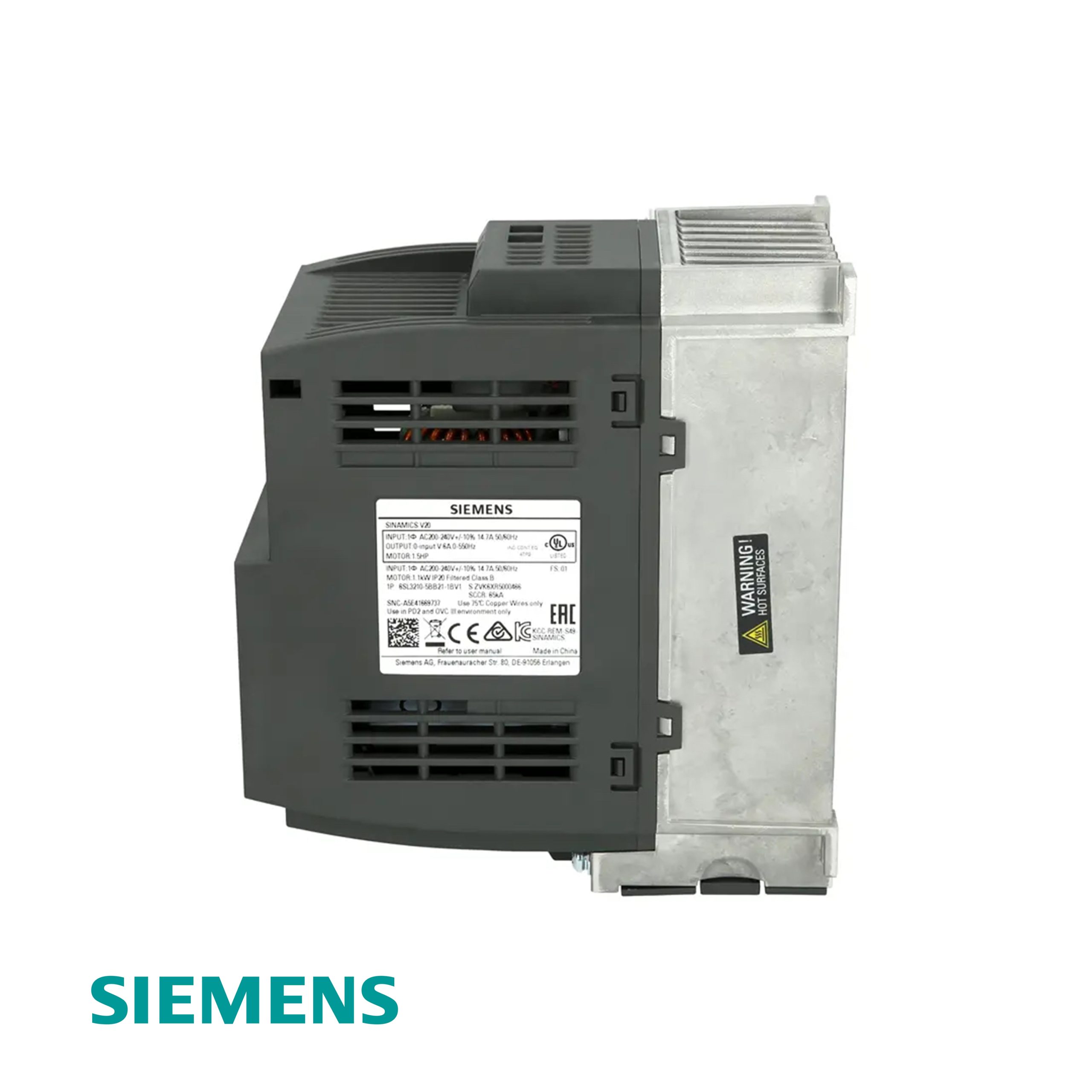

Siemens SINAMICS V20 6SL3210-5BB12-5UV1 Inverter Drive 0.25kW 200-240V 1-Phase 1.7A IP20

Product Description

The Siemens 6SL3210-5BB12-5UV1 is a SINAMICS V20 basic frequency converter designed for simple and cost-effective control of AC motors in industrial applications. Rated at 0.25 kW, it operates from a 200 to 240 V single-phase AC supply and provides reliable variable-speed motor control for pumps, fans, conveyors, compressors, and general machinery. The drive supports 150% overload for 60 seconds and includes four digital inputs, two digital outputs, two analog inputs, and one analog output. Integrated USS and Modbus RTU communication, a built-in basic operator panel, compact FSAA construction, and IP20 protection simplify commissioning and system integration.

Standard Features

• 0.25 kW rated power: Designed for small motor control applications requiring compact variable-speed operation.
• 200–240 V single-phase input: Suitable for installations using standard low-voltage single-phase AC supplies.
• 150% overload capability: Supports temporary overload operation for up to 60 seconds.
• Integrated I/O: Provides 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output.
• USS / Modbus RTU: Built-in serial communication supports integration with PLCs and industrial control systems.
• Built-in operator panel: Enables local parameter setting, commissioning, and drive operation without an external keypad.
• Compact FSAA design: Measures only 68 × 142 × 108 mm for space-saving control-panel installation.

Technical Specifications
