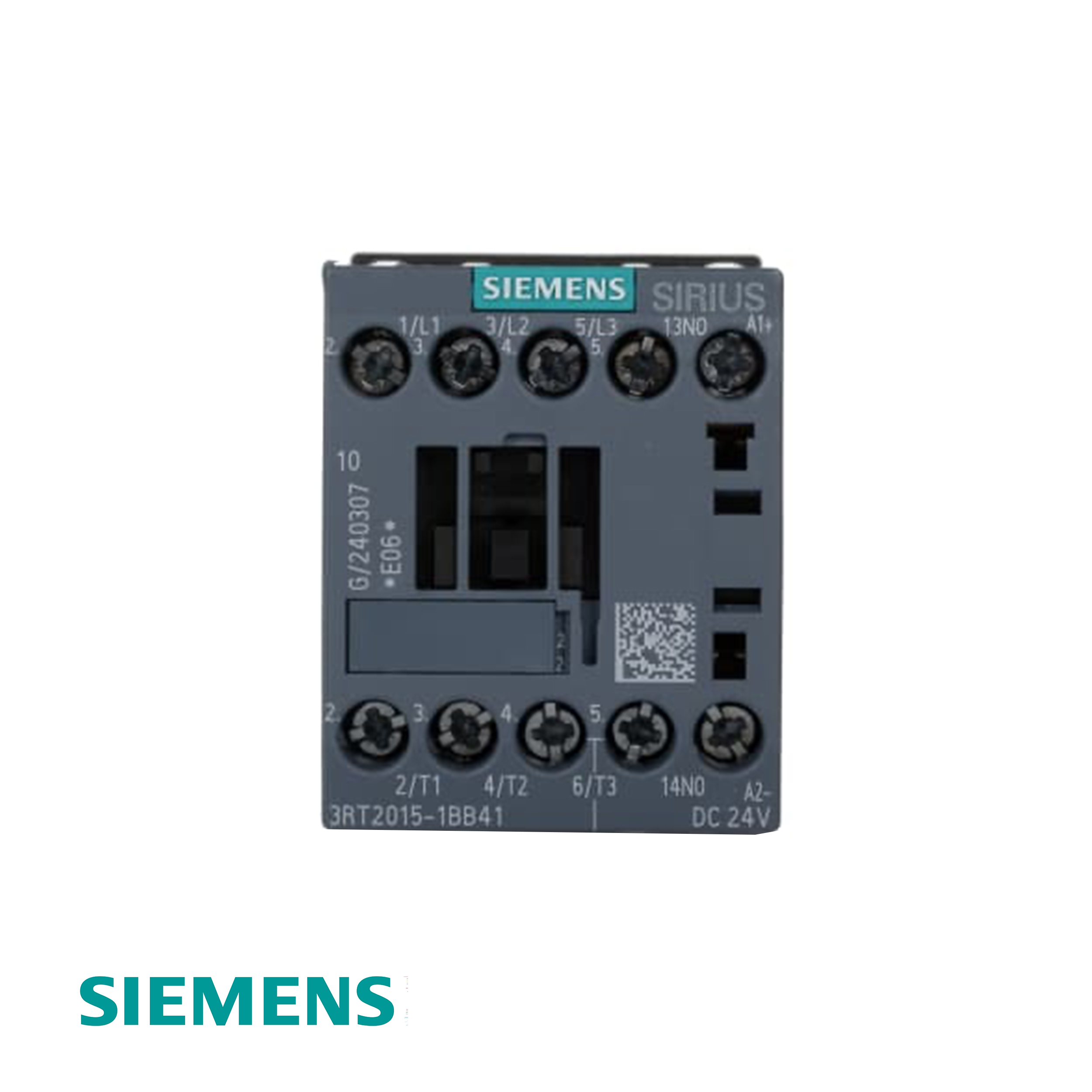

Siemens 3RT2015-1BB41 SIRIUS 3-Pole Contactor 7 A AC-3e/AC-3, 3 kW at 400 V, 24 V DC Coil

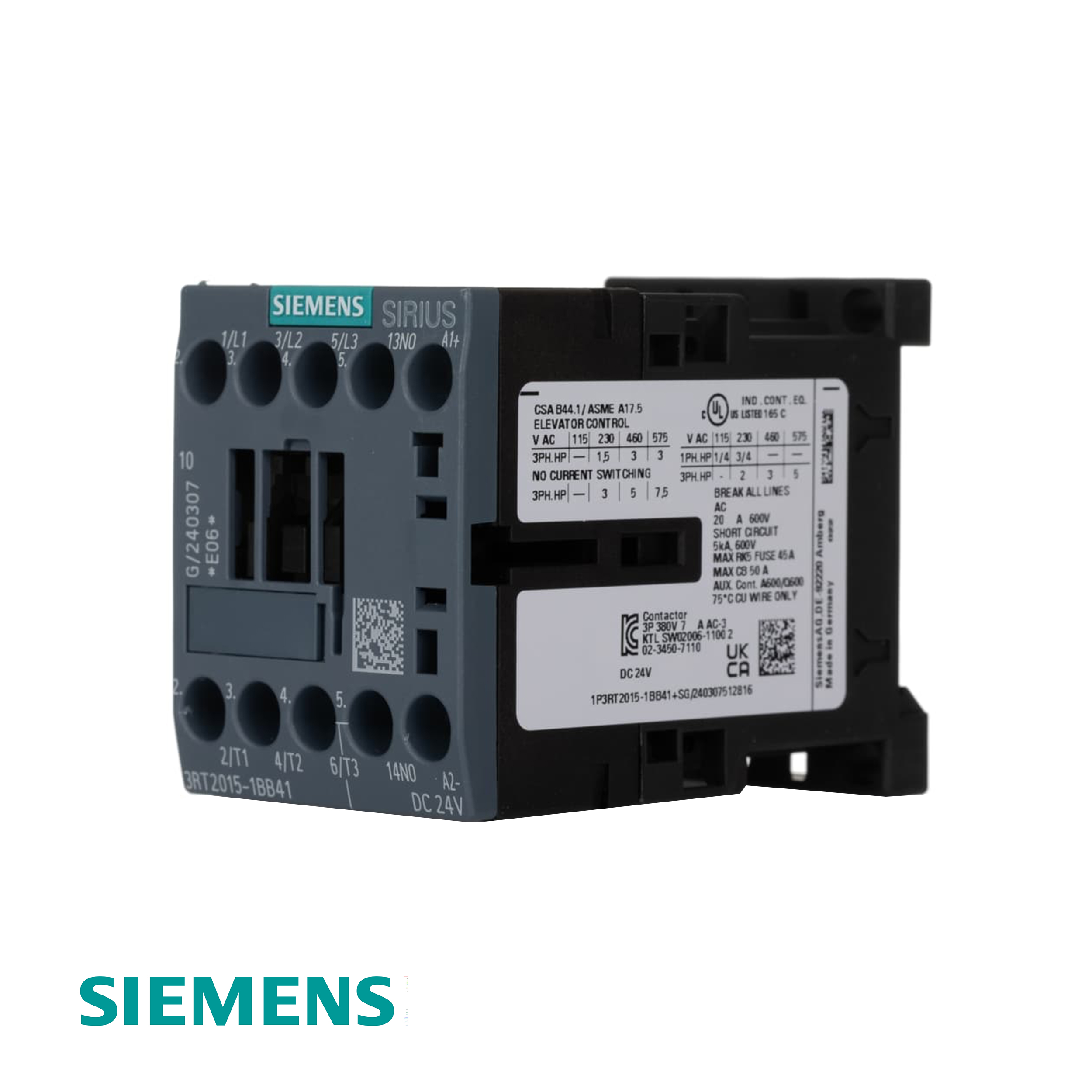

Siemens 3RT2015-1BB41 SIRIUS 3-Pole Contactor 7 A AC-3e/AC-3, 3 kW at 400 V, 24 V DC Coil - Image 2

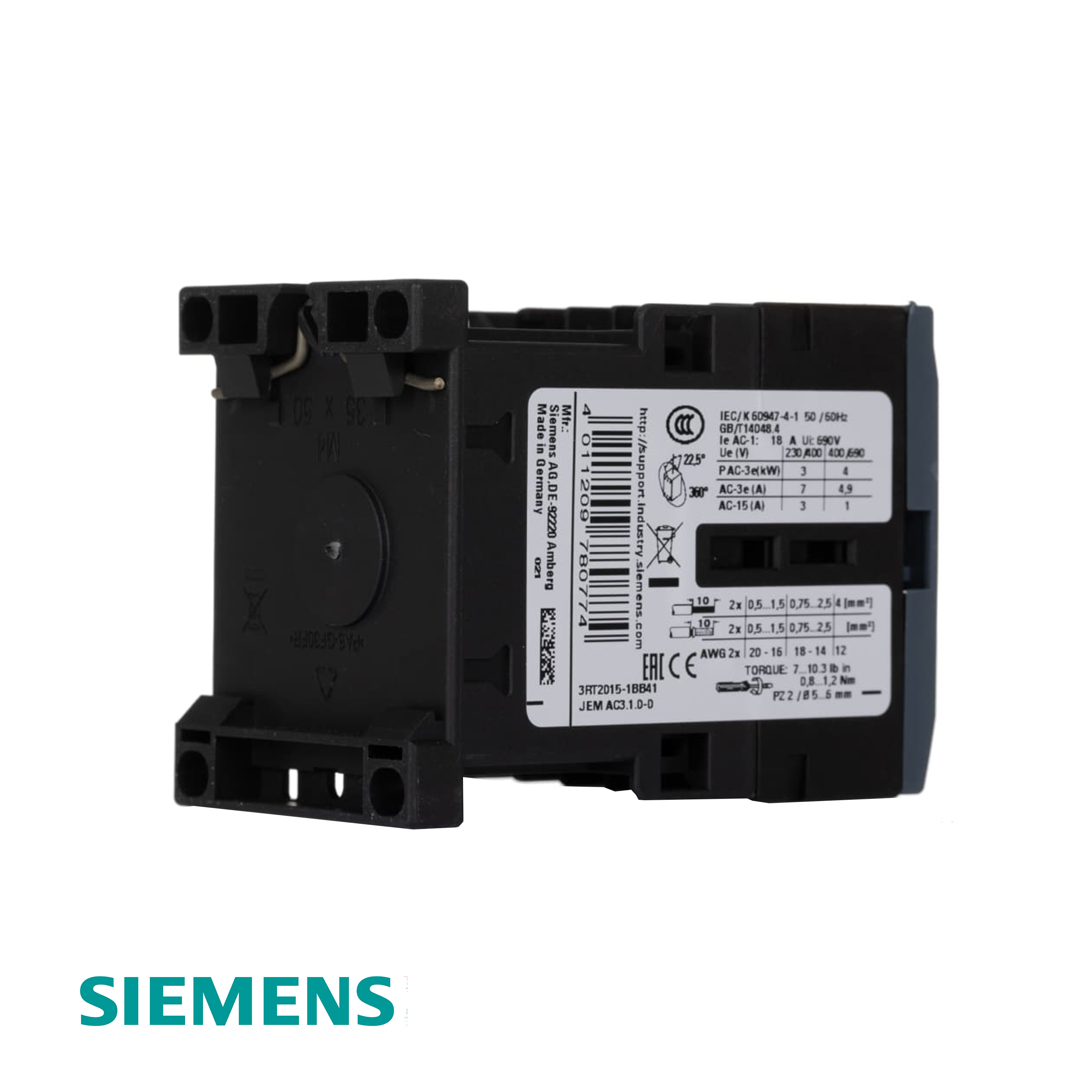

Siemens 3RT2015-1BB41 SIRIUS 3-Pole Contactor 7 A AC-3e/AC-3, 3 kW at 400 V, 24 V DC Coil - Image 3

Siemens 3RT2015-1BB41 SIRIUS 3-Pole Contactor 7 A AC-3e/AC-3, 3 kW at 400 V, 24 V DC Coil

Manufacturer: Siemens
Model: 3RT2015-1BB41
Type: SIRIUS 3RT2 Power Contactor
Main Poles: 3
AC-3e/AC-3 Rated Current: 7 A at 400 V
Motor Power: 3 kW at 400 V AC-3e/AC-3
Coil Voltage: 24 V DC
Auxiliary Contacts: 1 NO
Application: Three-phase motor switching, motor starters, machinery, and industrial control systems

Get a Quote

Product Description

The Siemens 3RT2015-1BB41 is a SIRIUS 3RT2 power contactor designed for switching three-phase motors and other industrial electrical loads. It is rated at 7 A under AC-3e/AC-3 utilization at 400 V and supports motor loads up to 3 kW at 400 V, with a 24 V DC control coil. The compact S00 contactor includes one normally open instantaneous auxiliary contact, screw-type terminals, and supports both 35 mm DIN-rail and screw mounting.

Standard Features

  • 7 A AC-3e/AC-3 Motor Switching: Rated for 7 A at 400 V under AC-3e and AC-3 utilization categories for three-phase motor switching applications.

  • 3 kW Motor Capacity: Supports three-phase motors rated up to 3 kW at 400 V under AC-3e/AC-3 conditions.

  • 24 V DC Control Coil: Uses a 24 V DC control supply with a specified coil operating range of 0.8 to 1.1 times the rated control voltage.

  • Integrated 1 NO Auxiliary Contact: Includes one instantaneous normally open auxiliary contact for control, signaling, and interlocking circuits.

  • Compact S00 Frame: The 45 mm wide S00 housing supports space-efficient installation in industrial control panels.

  • Flexible Panel Installation: Supports screw mounting or snap-on mounting to a 35 mm DIN rail, with screw-type terminals for main, auxiliary, and control circuits.

  • 30 Million Mechanical Operating Cycles: Siemens specifies a typical mechanical service life of 30,000,000 operating cycles for the contactor.

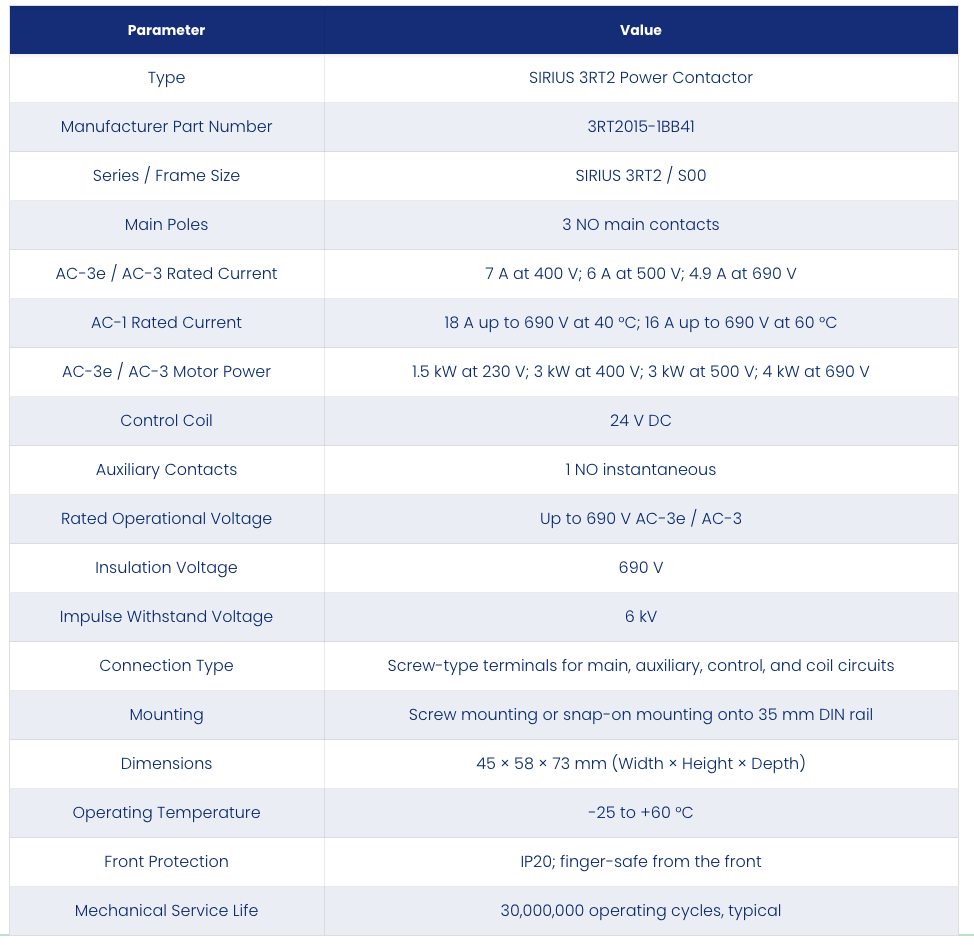

Technical Specifications

ParameterValue
TypeSIRIUS 3RT2 Power Contactor
Manufacturer Part Number3RT2015-1BB41
Series / Frame SizeSIRIUS 3RT2 / S00
Main Poles3 NO main contacts
AC-3e / AC-3 Rated Current7 A at 400 V; 6 A at 500 V; 4.9 A at 690 V
AC-1 Rated Current18 A up to 690 V at 40 °C; 16 A up to 690 V at 60 °C
AC-3e / AC-3 Motor Power1.5 kW at 230 V; 3 kW at 400 V; 3 kW at 500 V; 4 kW at 690 V
Control Coil24 V DC
Auxiliary Contacts1 NO instantaneous
Rated Operational VoltageUp to 690 V AC-3e / AC-3
Insulation Voltage690 V
Impulse Withstand Voltage6 kV
Connection TypeScrew-type terminals for main, auxiliary, control, and coil circuits
MountingScrew mounting or snap-on mounting onto 35 mm DIN rail
Dimensions45 × 58 × 73 mm (Width × Height × Depth)
Operating Temperature-25 to +60 °C
Front ProtectionIP20; finger-safe from the front
Mechanical Service Life30,000,000 operating cycles, typical
