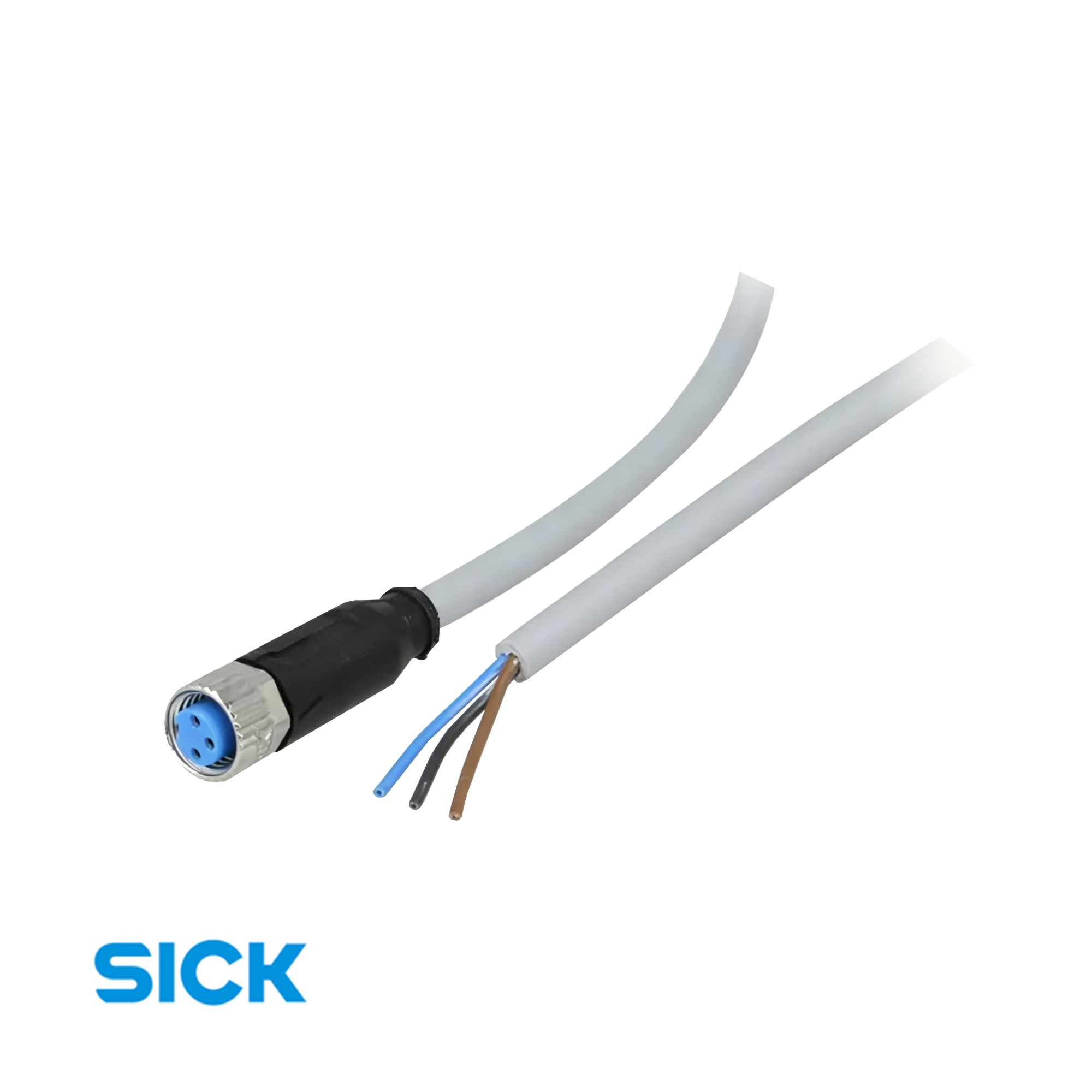

SICK 2095885 YF8U13-100VA1XLEAX M8 3-Pin Female Straight to Flying Leads 10m Sensor Cable

Product Description

The SICK 2095885 (YF8U13-100VA1XLEAX) is a high-performance sensor/actuator connecting cable designed for reliable signal transmission in industrial automation systems. Featuring an A-coded M8 3-pin straight female connector with a screw-locking mechanism on Head A and flying leads on Head B, this 10-meter unshielded PVC cable delivers secure power and signal connections. Engineered with an IP65/IP66K/IP67 enclosure rating, 0.25 mm² conductor cross-section, and resistance to chemical environments, it ensures long-lasting durability across harsh industrial operational conditions.

Standard Features

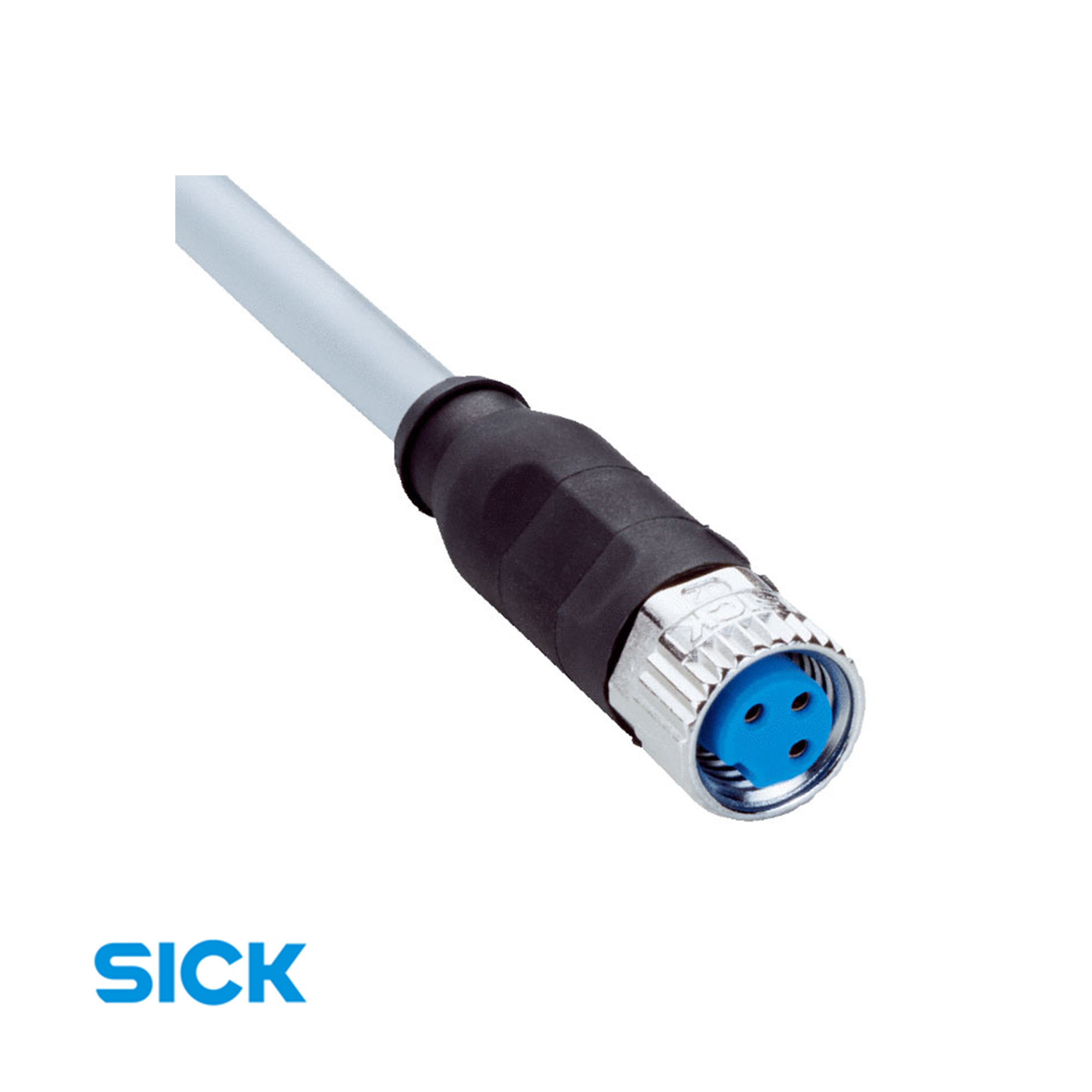

• M8 3-Pin Straight Female Connector: A-coded connector featuring a secure screw lock with zinc die-cast nickel-plated nut.

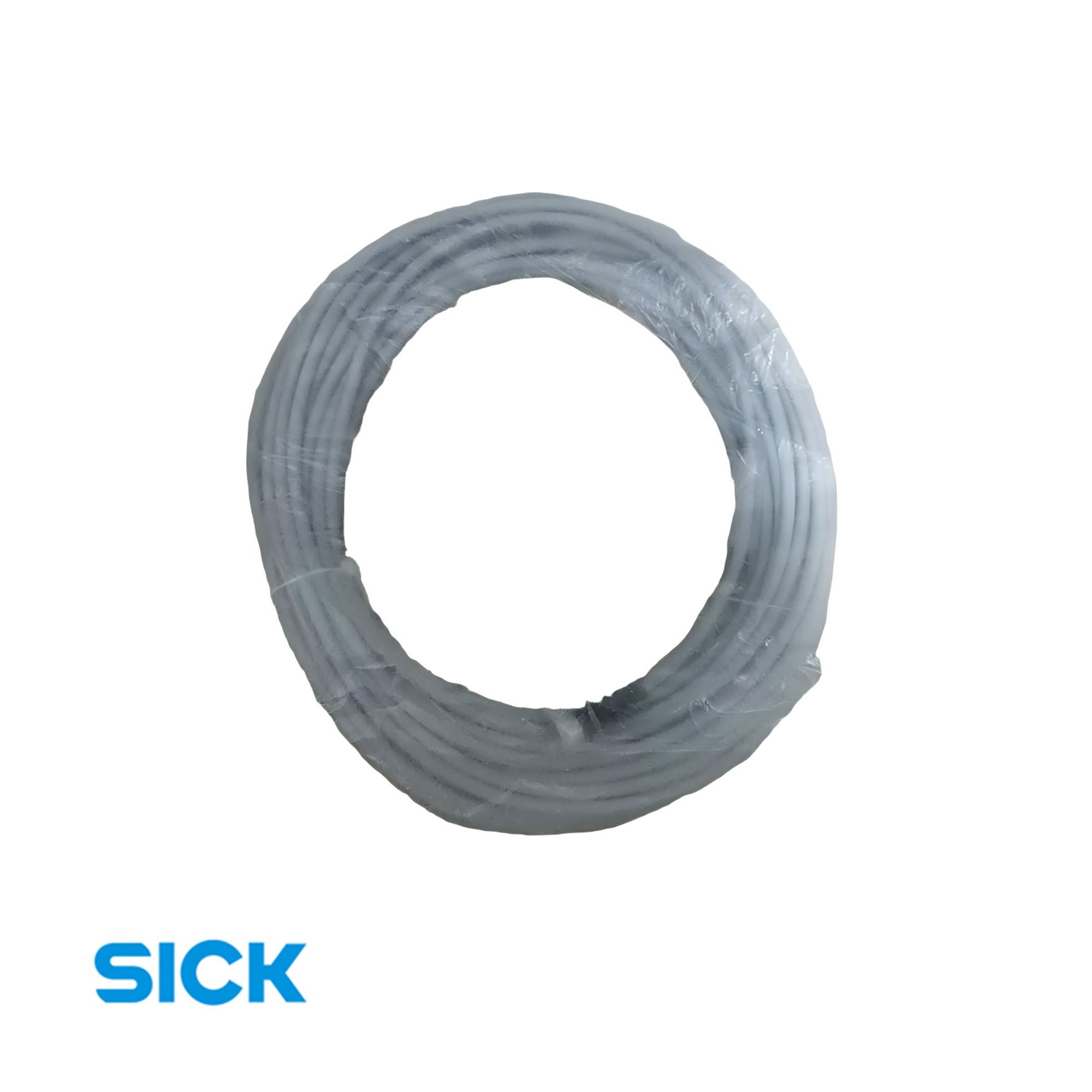

• 10-Meter PVC Cable: High-durability gray 3-wire unshielded cable with a 0.25 mm² conductor cross-section.
• High Ingress Protection: Rated IP65, IP66K, and IP67 for superior protection against dust and liquid ingress.
• Flying Leads Termination: Cut and stripped cable end allows versatile integration into various terminal blocks and controllers.
• Chemical Resistant Design: Specifically suited for applications and industrial environments exposed to chemical substances.
• Global Certifications: UL certified (cULus) and compliant with international safety and quality standards.

Technical Specifications
