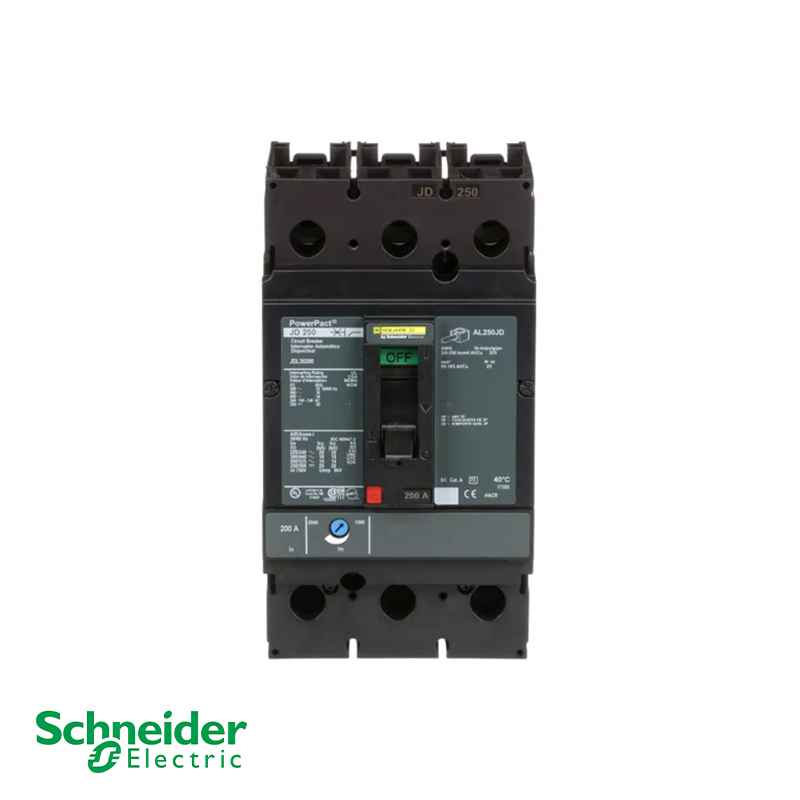

Schneider Powerpact J
Schneider Powerpact J - Image 2
Schneider Powerpact J - Image 3

Schneider Powerpact J

Manufacturer: Schneider Electric
Model: PowerPact J Molded Case Circuit Breaker
Current Range: 100A – 250A
Voltage Rating: Up to 600V AC / 250V DC
Interrupting Capacity: Up to 125 kA @ 480V AC

Get a Quote

Product Description

The Schneider Electric PowerPact J molded case circuit breaker offers reliable protection for electrical distribution systems in commercial and industrial applications. With a current range of 100A to 250A and interrupting capacities up to 125 kA at 480V AC, the PowerPact J ensures superior safety and performance. Designed with both thermal-magnetic and Micrologic electronic trip unit options, it provides flexibility for standard and advanced protection needs. Compact in size yet powerful in capability, the PowerPact J series is UL listed, IEC certified, and ideal for applications requiring dependable overcurrent protection and system reliability.

Standard Features

  • Wide Protection Range: Provides overcurrent, short-circuit, and ground fault protection

  • High Interrupting Capacity: Up to 125 kA at 480V AC for enhanced system safety

  • Trip Unit Options: Thermal-magnetic and Micrologic electronic trip units for flexible protection

  • Compact Design: Space-saving molded case design with easy panel integration

  • Standards Compliance: UL Listed, IEC Certified for global compatibility

  • Adjustable Settings: Configurable trip thresholds and time delays for tailored protection

  • Diagnostics: Status indicators and trip signaling for quick fault identification

  • Installation Flexibility: Available in 2-pole and 3-pole versions with multiple mounting options

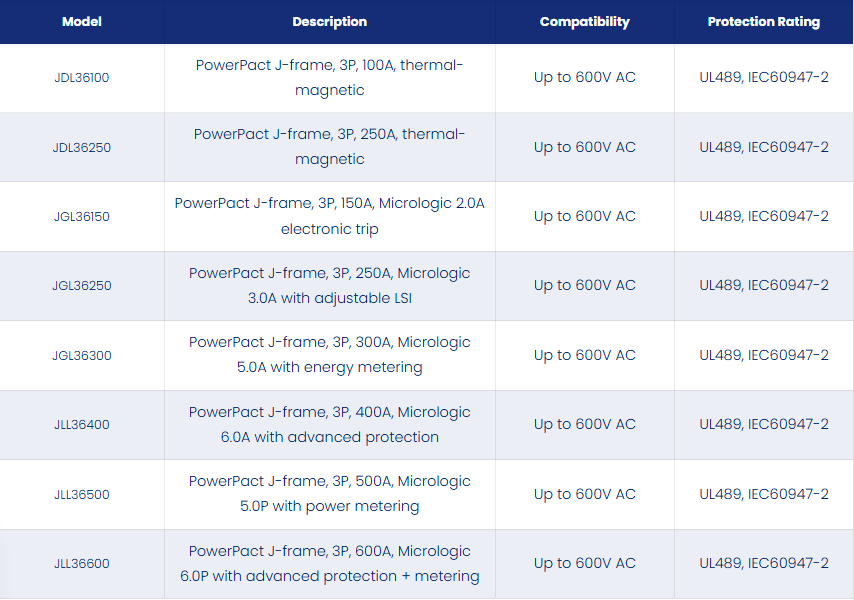

Technical Specifications



ModelDescriptionCompatibilityProtection Rating
JDL36100PowerPact J-frame, 3P, 100A, thermal-magneticUp to 600V ACUL489, IEC60947-2
JDL36250PowerPact J-frame, 3P, 250A, thermal-magneticUp to 600V ACUL489, IEC60947-2
JGL36150PowerPact J-frame, 3P, 150A, Micrologic 2.0A electronic tripUp to 600V ACUL489, IEC60947-2
JGL36250PowerPact J-frame, 3P, 250A, Micrologic 3.0A with adjustable LSIUp to 600V ACUL489, IEC60947-2
JGL36300PowerPact J-frame, 3P, 300A, Micrologic 5.0A with energy meteringUp to 600V ACUL489, IEC60947-2
JLL36400PowerPact J-frame, 3P, 400A, Micrologic 6.0A with advanced protectionUp to 600V ACUL489, IEC60947-2
JLL36500PowerPact J-frame, 3P, 500A, Micrologic 5.0P with power meteringUp to 600V ACUL489, IEC60947-2
JLL36600PowerPact J-frame, 3P, 600A, Micrologic 6.0P with advanced protection + meteringUp to 600V ACUL489, IEC60947-2
