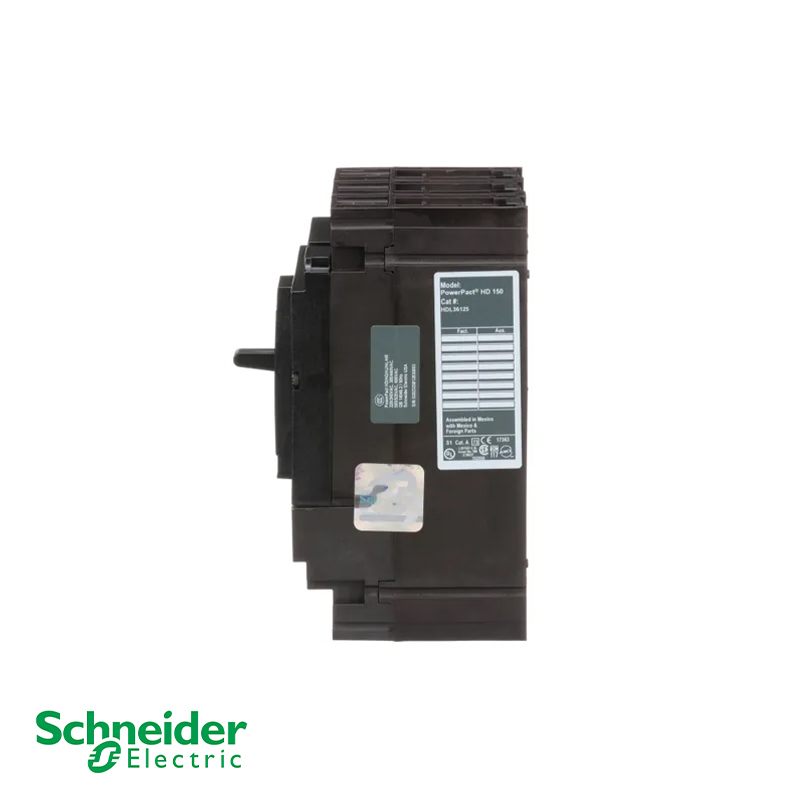

Schneider Powerpact H

Manufacturer: Schneider Electric
Model: PowerPact H MCCB
Current Range: 15A – 600A
Interrupting Capacity: up to 65kA at 480V AC
Poles: 2P / 3P / 4P
Voltage Rating: up to 600V AC

Get a Quote

Product Description

The Schneider Electric PowerPact H circuit breaker is a high-performance molded case circuit breaker designed for reliable protection of electrical distribution systems. With a wide current range from 15A to 600A and interrupting capacities up to 65kA at 480V AC, it ensures safe and efficient operation across industrial, commercial, and OEM applications. Available in 2, 3, and 4-pole configurations, the PowerPact H supports both thermal-magnetic and advanced Micrologic electronic trip units for enhanced protection, monitoring, and adaptability. Compact in design and compliant with global standards such as UL489 and IEC60947-2, it delivers durability, flexibility, and superior circuit protection for modern power systems.

Standard Features

  • Wide Current Range: Available from 15A to 600A for flexible applications

  • High Interrupting Capacity: Up to 65kA at 480V AC to ensure reliable protection

  • Trip Units: Thermal-Magnetic and Micrologic electronic trip units for advanced protection

  • Protection Functions: Overload, short-circuit, ground fault, and adjustable trip settings

  • Standards Compliance: Certified to UL489 and IEC60947-2 for global usage

  • Flexibility: Available in 2P, 3P, and 4P configurations to suit different system needs

  • Compact Design: Space-saving frame size for efficient panel installation

  • Optional Accessories: Support for auxiliary contacts, shunt trips, and undervoltage releases

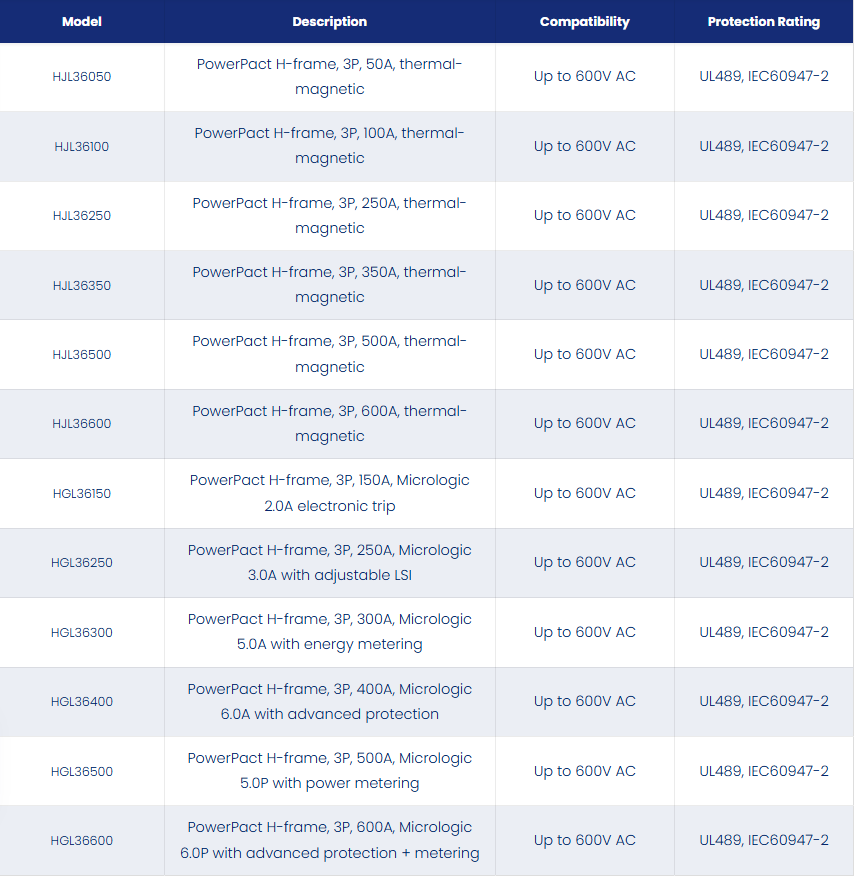

Technical Specifications



ModelDescriptionCompatibilityProtection Rating
HJL36050PowerPact H-frame, 3P, 50A, thermal-magneticUp to 600V ACUL489, IEC60947-2
HJL36100PowerPact H-frame, 3P, 100A, thermal-magneticUp to 600V ACUL489, IEC60947-2
HJL36250PowerPact H-frame, 3P, 250A, thermal-magneticUp to 600V ACUL489, IEC60947-2
HJL36350PowerPact H-frame, 3P, 350A, thermal-magneticUp to 600V ACUL489, IEC60947-2
HJL36500PowerPact H-frame, 3P, 500A, thermal-magneticUp to 600V ACUL489, IEC60947-2
HJL36600PowerPact H-frame, 3P, 600A, thermal-magneticUp to 600V ACUL489, IEC60947-2
HGL36150PowerPact H-frame, 3P, 150A, Micrologic 2.0A electronic tripUp to 600V ACUL489, IEC60947-2
HGL36250PowerPact H-frame, 3P, 250A, Micrologic 3.0A with adjustable LSIUp to 600V ACUL489, IEC60947-2
HGL36300PowerPact H-frame, 3P, 300A, Micrologic 5.0A with energy meteringUp to 600V ACUL489, IEC60947-2
HGL36400PowerPact H-frame, 3P, 400A, Micrologic 6.0A with advanced protectionUp to 600V ACUL489, IEC60947-2
HGL36500PowerPact H-frame, 3P, 500A, Micrologic 5.0P with power meteringUp to 600V ACUL489, IEC60947-2
HGL36600PowerPact H-frame, 3P, 600A, Micrologic 6.0P with advanced protection + meteringUp to 600V ACUL489, IEC60947-2
