Schneider Electric XB2BP42C Harmony XB2 Pilot Light
Schneider Electric XB2BP42C Harmony XB2 Pilot Light - Image 2
Schneider Electric XB2BP42C Harmony XB2 Pilot Light - Image 3
Schneider Electric XB2BP42C Harmony XB2 Pilot Light - Image 4

Schneider Electric XB2BP42C Harmony XB2 Pilot Light

Manufacturer: Schneider Electric
Model: XB2BP42C
Type: Monolithic round pilot light (integral LED)
Color: Red
Voltage: 220…240 V AC 50/60 Hz
Diameter: Ø 22 mm
Connection: Screw clamp terminals

Get a Quote

Product Description

The Schneider Electric XB2BP42C is a reliable, monolithic red pilot light from the Harmony XB2 series, featuring an integrated high-efficiency LED for long-life status indication. Designed for direct 220–240 V AC operation, it provides clear visual signaling for fault/alarm conditions, emergency stop active, machine stop, or warning states in industrial control panels and machinery. The Ø22 mm mounting hole, screw terminals, and robust plastic construction make it easy to install and durable for factory, automation, and distribution applications.

Standard Features

  • Red integral LED: High visibility for critical/alarm status — no bulb replacement required.

  • 220–240 V AC direct supply: No external transformer needed — simple wiring for standard control voltage.

  • Ø22 mm standard mounting: Fits common panel cut-outs — compatible with Harmony XB2/XB4/XB5 operators.

  • Screw clamp terminals: Secure wiring for 0.5–2.5 mm² conductors — vibration-resistant.

  • IP65 protection: Dust-tight and water-jet resistant — suitable for harsh industrial environments.

  • Global approvals: IEC/EN 60947-5-1, UL, CSA, CE, CCC — accepted worldwide.

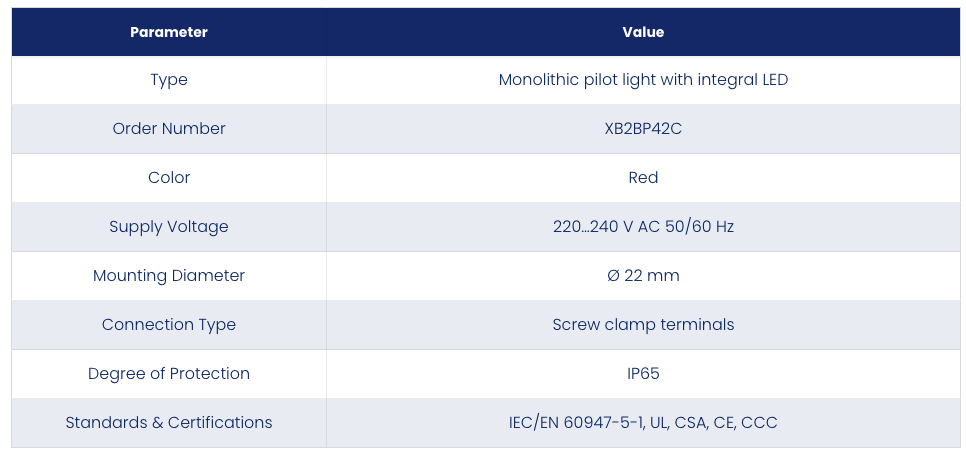

Technical Specifications

ParameterValue
TypeMonolithic pilot light with integral LED
Order NumberXB2BP42C
ColorRed
Supply Voltage220…240 V AC 50/60 Hz
Mounting DiameterØ 22 mm
Connection TypeScrew clamp terminals
Degree of ProtectionIP65
Standards & CertificationsIEC/EN 60947-5-1, UL, CSA, CE, CCC
