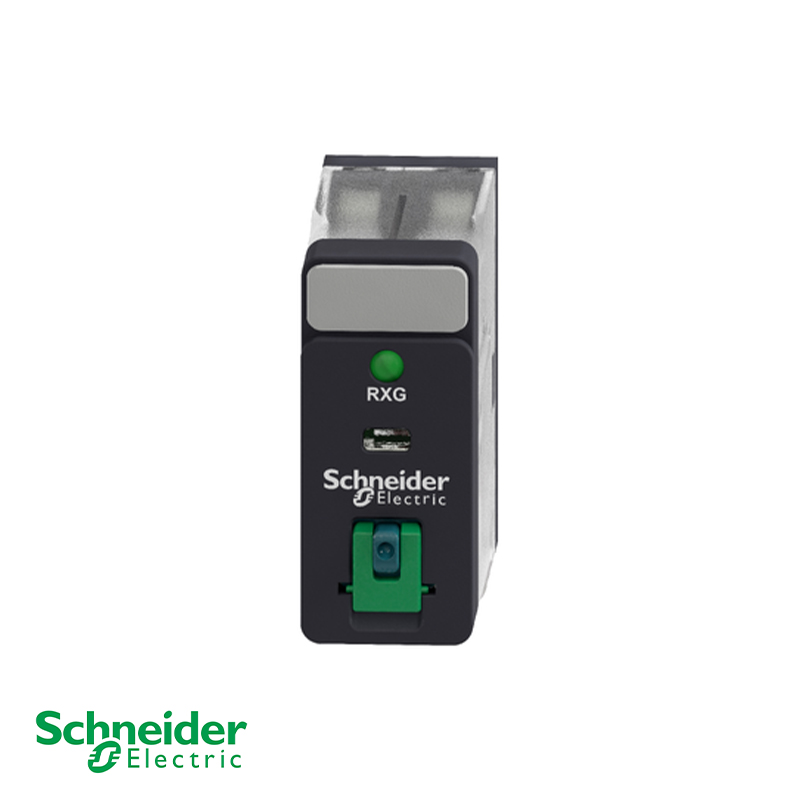

Schneider Electric RXG22BD Harmony RXG Interface Relay
Schneider Electric RXG22BD Harmony RXG Interface Relay - Image 2

Schneider Electric RXG22BD Harmony RXG Interface Relay

Manufacturer: Schneider Electric
Model: RXG22BD
Type: Plug-in interface relay
Coil Voltage: 24 VDC
Contact Configuration: 2 C/O (DPDT, 2 changeover)
Rated Load: 5 A @ 250 VAC / 30 VDC
Mounting: Plug-in (requires RXZE2M114M socket)

Get a Quote

Product Description

The Schneider Electric RXG22BD is a compact, high-performance interface relay from the Harmony RXG series, designed for space-constrained industrial control panels and automation systems. With 2 C/O contacts rated at 5 A, low 24 VDC coil consumption, built-in LED indicator, and optional protection modules, it provides fast, reliable switching for PLC outputs, timers, sensors, and low-power loads. The clear test button and mechanical flag allow easy commissioning and troubleshooting, while the lockable test mechanism ensures safe maintenance.

Standard Features

  • 2 C/O contacts (DPDT): 5 A switching capacity — ideal for control circuits and small loads.

  • 24 VDC coil: Low power consumption (~0.53 W) — direct PLC drive without additional interface.

  • LED + mechanical indicator: Clear status visibility + lockable test button for easy testing.

  • Compact design: Only 16 mm wide — saves significant panel space compared to standard relays.

  • Protection options: Compatible with freewheel diode, RC circuit, or varistor modules for coil protection.

  • Global approvals: IEC, UL, CSA, CE, RoHS — accepted worldwide in industrial applications.

Technical Specifications

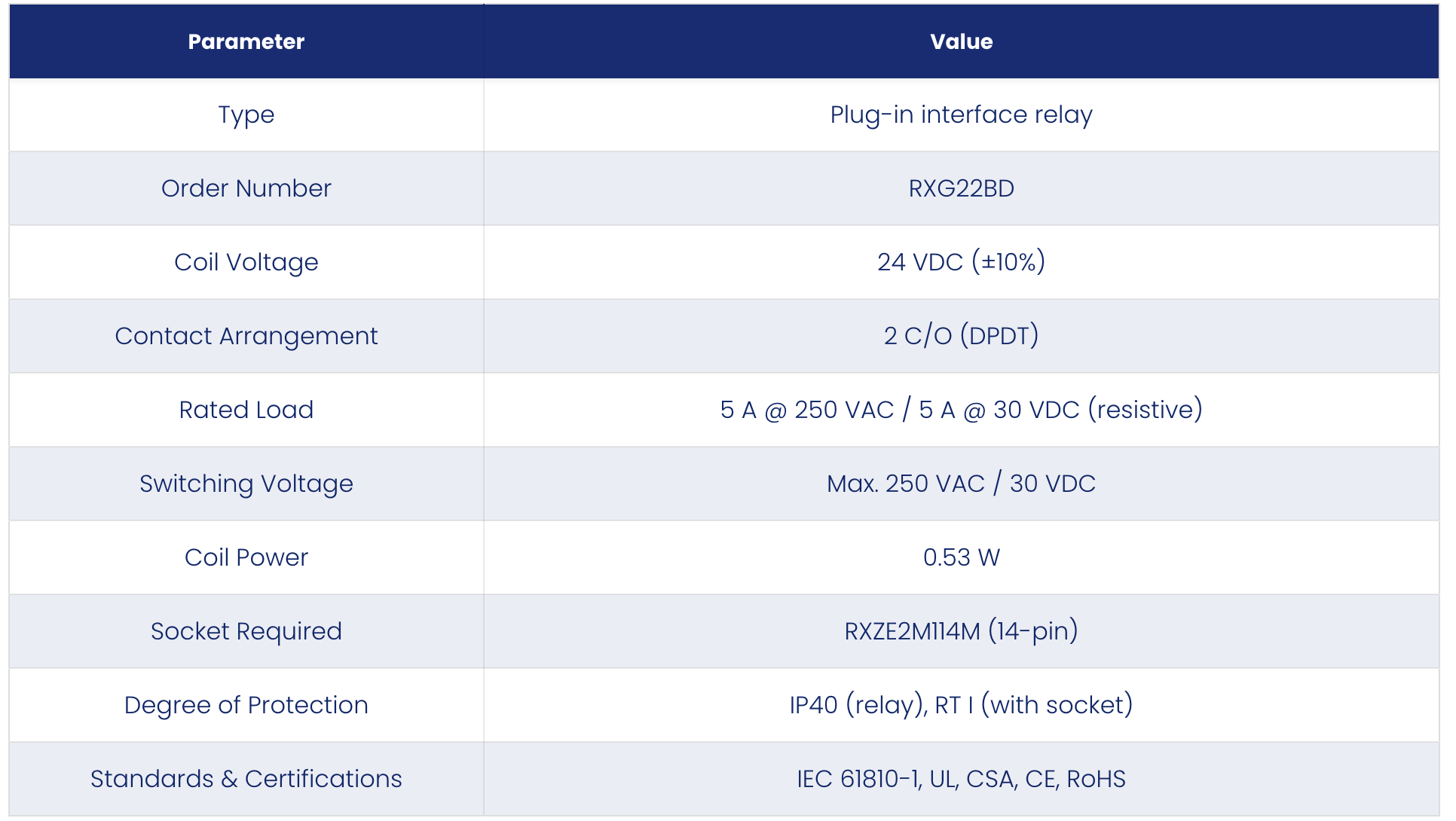

ParameterValue
TypePlug-in interface relay
Order NumberRXG22BD
Coil Voltage24 VDC (±10%)
Contact Arrangement2 C/O (DPDT)
Rated Load5 A @ 250 VAC / 5 A @ 30 VDC (resistive)
Switching VoltageMax. 250 VAC / 30 VDC
Coil Power0.53 W
Socket RequiredRXZE2M114M (14-pin)
Degree of ProtectionIP40 (relay), RT I (with socket)
Standards & CertificationsIEC 61810-1, UL, CSA, CE, RoHS
