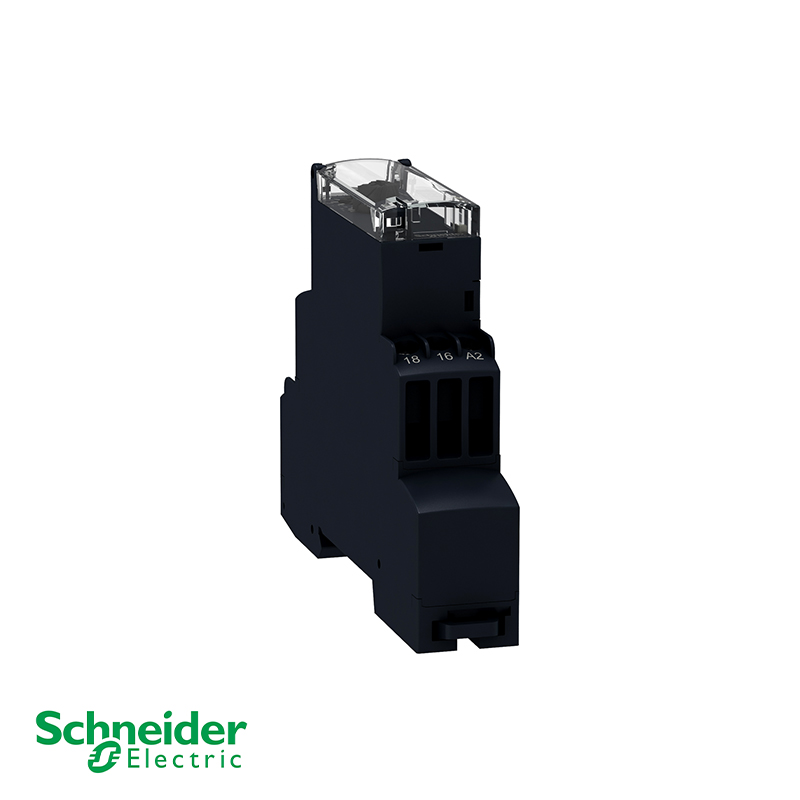

RE17RBMU Harmony Timer Relays single interval relay

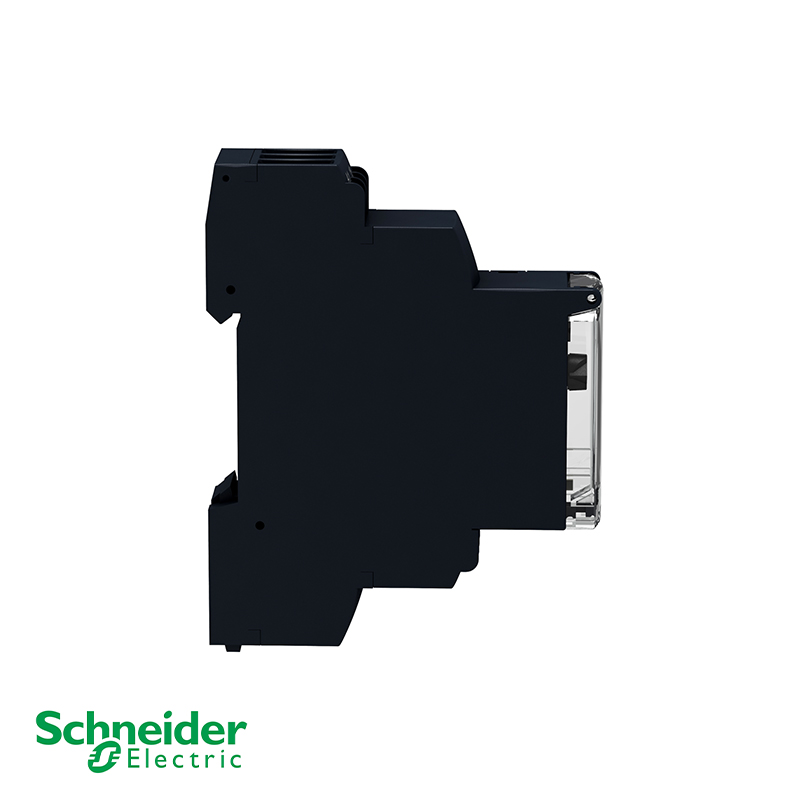

RE17RBMU Harmony Timer Relays single interval relay - Image 2
RE17RBMU Harmony Timer Relays single interval relay - Image 3

RE17RBMU Harmony Timer Relays single interval relay

Manufacturer: Schneider Electric
Model: RE17RBMU
Function: Single Interval Timer Relay
Time Range: 1 s – 100 h
Supply Voltage: 24 V DC or 24–240 V AC/DC
Contact Configuration: 1 CO (SPDT)
Output Rating: 8 A

Get a Quote

Product Description

The Schneider Electric RE17RBMU is a versatile single interval timer relay designed for precise timing control in industrial automation systems. With a wide time range of 1 second to 100 hours and flexible supply voltage options from 24 V DC to 24–240 V AC/DC, it provides reliable operation for a variety of applications including machine control, HVAC, and water treatment. Equipped with a SPDT (1 CO) contact configuration and rated for 8 A output, this DIN rail-mounted relay ensures easy installation and dependable performance in demanding environments. Its compact design and robust construction make it ideal for industrial and commercial automation projects.

Standard Features

  • Timing Control: Provides single interval timing from 1 second to 100 hours

  • Voltage Compatibility: Operates with 24 V DC or 24–240 V AC/DC supply

  • Contact Configuration: Single-pole double-throw (SPDT) for flexible circuit control

  • Output Rating: Rated for 8 A switching current

  • Mounting: Easy DIN rail installation for compact panel integration

  • Manual Override: Built-in test and reset buttons for manual operation and diagnostics

  • Application Flexibility: Suitable for industrial automation, machine control, HVAC, and water treatment systems

  • Reliability: Robust construction ensures dependable performance in demanding environments

Technical Specifications

ModelFunction / TypeTime RangeSupply VoltageMounting
RE17RBMUSingle Interval (One-shot)1 s – 100 h24 V DC / 24–240 V AC/DCDIN Rail
RE17RAMUOn-delay (with control signal)0.1 s – 100 h24–240 V AC/DCDIN Rail
RE17RMMUTen-function / Multi-function Timer0.1 s – 100 h (multiple ranges)24–240 V AC/DCDIN Rail
RE17RCMUOff-delay (with control signal)0.1 s – 100 h24–240 V AC/DCDIN Rail
RE17RHMUOn-delay (standard)0.1 s – 100 h24–240 V AC/DCDIN Rail
RE17RLMUSymmetrical Flasher / Dual Function Flash0.1 s – 100 h24–240 V AC/DCDIN Rail
RE17RMEMUMulti-function (8 functions) / Repetitive Cycle / Interval0.1 s – 100 h (various modes)24–240 V AC/DCDIN Rail
RE17RMXMUMulti-function / Extended Timer0.1 s – 100 h (extended ranges)24–240 V AC/DCDIN Rail
RE17LCBMOff-delay (low current version)0.1 s – 100 h24–240 V AC/DCDIN Rail
RE17LAMWOn-delay (modular version)1 s – 100 h24–240 V AC/DCDIN Rail
RE17LHBMPulse On-delay1 s – 100 h24–240 V AC/DCDIN Rail
RE17LMBMTen-function / Multi-function (low current version)1 s – 100 h (multi-mode)24–240 V AC/DCDIN Rail
RE17LLBMAsymmetrical Flasher1 s – 100 h24–240 V AC/DCDIN Rail
RE17RMJUTen-function (12 V supply version)0.1 s – 100 h (multi-mode)12 V AC/DCDIN Rail
